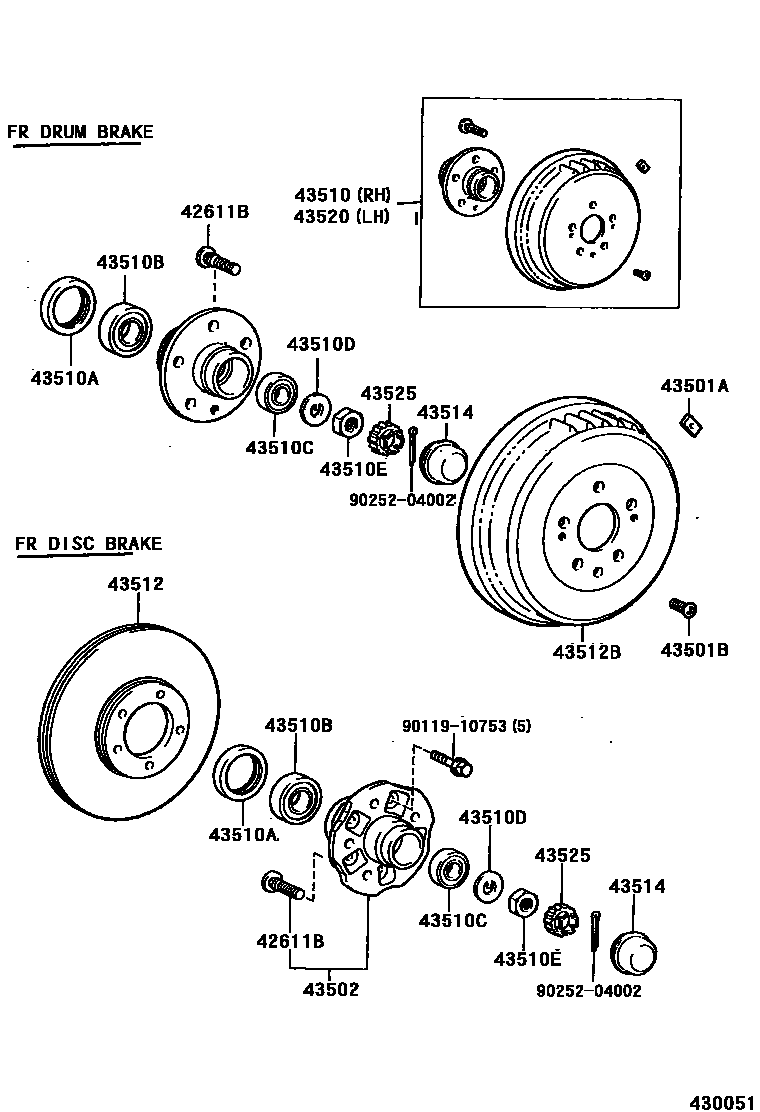

FRONT AXLE HUB

0001 1 0002 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308-200208

main90942-02047iLH10#,11#,125,RZH10#,11#,125198908-199308

W(FRONT DISC BRAKE)

main90942-02049iLH166,176199808-200408

main90942-02052iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

40.5G

main90937-01117iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

10G

main90937-01118iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

20G

main90937-01119iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

30G

main90937-01146iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

25G

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

43502HUB SUB-ASSY, FRONT AXLE

main43502-26050iLH103..4D..GEN;RZH102,103..03S..GEN198908-200208

main43503-26010iLH113,115,RZH105,113,115..GCC199808-200501

W(ABS)

main43511-26070iLH166,176200211-200408

sub43511-39015

main43511-39015iLH166,176199808-200211

sub43502-29095

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-26060iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

main90311-66003iLH166,176199808-200408

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064iLH166,176199808-200408

sub90368-49084

main90368-34001iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067iLH166,176199808-200408

sub90368-45087

main90368-21001iRZH112..4D..06S198908-200208

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iRZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#198908-200208

main90214-42030iLH166,176199808-200408

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

43512DISC, FRONT

main43512-26090iRZH103..03S..GEN198908-200208

main43512-26120iLH172..RHD..SRF..4D..03S..STD..GEN199508-200501

W(15 INCHES DISC WHEEL)

main43512-26120iLH112,RZH113..DX199405-199907

main43512-26130iLH166,176199808-200408

43512BDRUM, BRAKE

main43512-26050iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

43514CAP, FRONT HUB GREASE

main43514-35010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-26060iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

9011910753

main90119-10753

9025204002

main90252-04002

17 parts on this diagram · 2 diagrams in section
