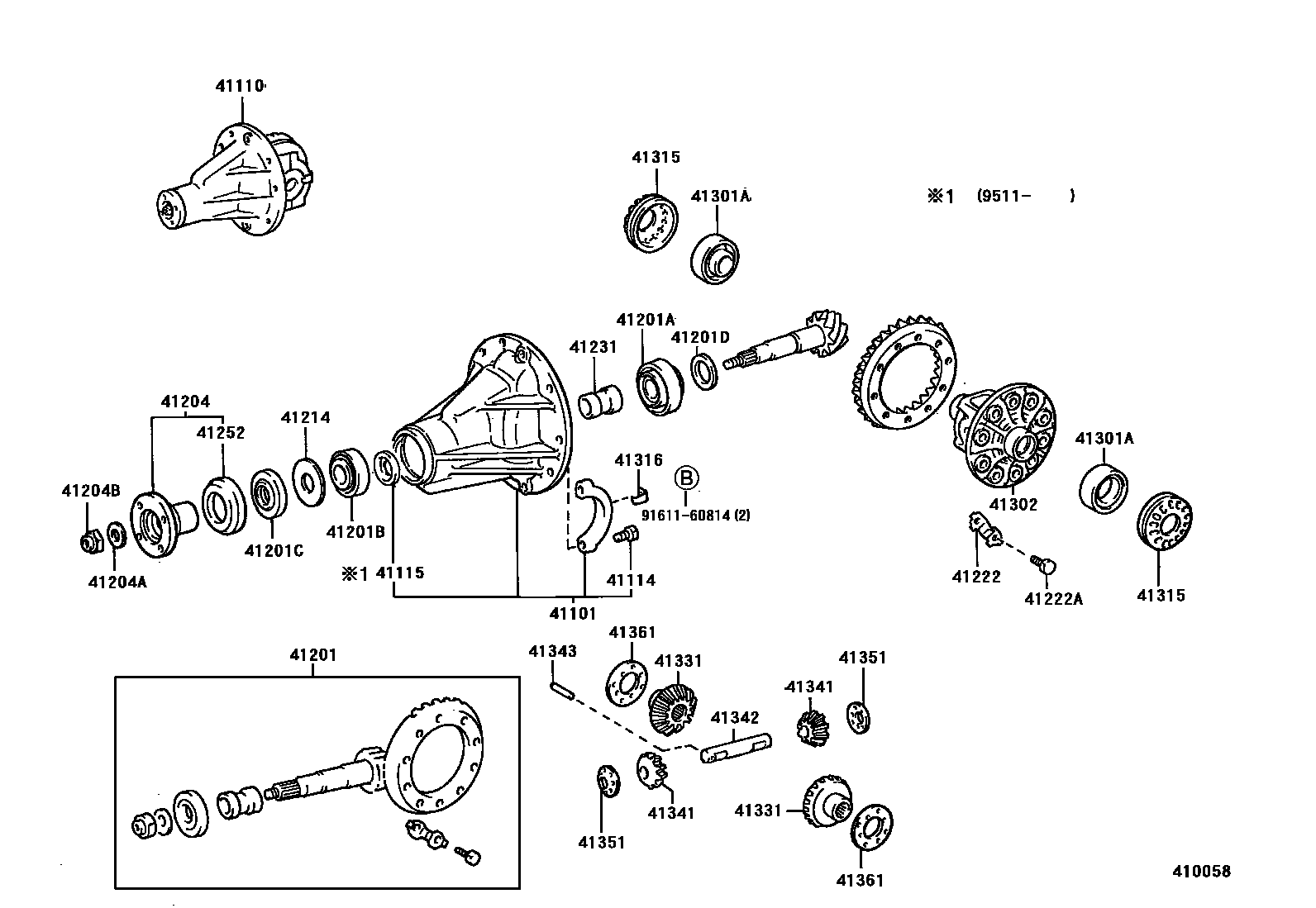

REAR AXLE HOUSING & DIFFERENTIAL

0001 1G142,G252,G282,G292(2PINION) 0002 1G144,G284,G294(4PINION) 0003 1LIMITED SLIP DIFFERENTIAL 0004 1LIMITED SLIP DIFFERENTIAL 0005 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35031iRZH103..GEN;RZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114..4F,5F198908-200408

main41101-35041iLH166,176;LH103,113,125,RZH114..4FC198908-200408

main41101-35071iRZH103,105,113,115,125..5F..(SGL,STD)198908-199511

sub41101-35170

main41101-35071iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

sub41101-35170

main41101-35170iRZH103,113,153..5F;RZH102,105,115,125,135..09S,12S,14S,15S199511-200602

sub41101-35171

sub41115-35010

main41101-35170iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200602

W(DIFFERENTIAL OIL STORAGE RING)

sub41101-35171

sub41115-35010

main41101-60160iLH184..4FC200408-200501

sub41101-60161

sub41115-35010

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26161iRZH102..RHD..06S;RZH103,113,125..4D..5F198908-199508

*FGR=43:10=4.300

sub41110-3D020

main41110-26181iRZH113..DX199405-199601

*FGR=41:10=4.100,W(LSD)

sub41110-35431

main41110-26430iRZH103,113,125..5F..ARL199611-200508

*FGR=41:10=4.100

sub41110-26431

main41110-26440iRZH103,113,125..5F..ARL199508-200602

*FGR=43:10=4.300

sub41110-26441

main41110-26660iLH184..4FC200408-200501

*FGR=39:8=4.875

sub41110-26661

main41110-35084iLH103,113,125,RZH114..4FC198908-200408

*FGR=39:8=4.875

sub41110-35085

main41110-35202iLH113,115..GCC198908-200008

*FGR=41:10=4.100

sub41110-26430

main41110-35212iRZH102..RHD;RZH114..4F,5F;RZH104,112..4F;RZH102..LHD..4F198908-199108

*FGR=43:10=4.300,AXLE CODE=G282

sub41110-35213

main41110-35212iLH104,112,114..CIS;LH112,125..09S,15S;RZH104,112,114..LHD199108-199808

*FGR=43:10=4.300

sub41110-35213

main41110-35222iLH103..5D;RZH103,113..4FC;RZH114..LHD..GEN;LH113,115..RHD..GEN;LH102,104,112,114,125,RZH102,104,112..GEN198908-200408

*FGR=41:9=4.555

sub41110-3D260

main41110-35302iLH112..DX;RZH114..RHD..4F198908-199508

*FGR=43:10=4.300,W(LSD)

sub41110-3D040

main41110-35312iLH114,RZH114..RHD..5F198908-200408

*FGR=41:9=4.555,W(LSD)

sub41110-3D210

main41110-35332iLH166,176199808-200408

*FGR=39:8=4.875

sub41110-60700

main41110-35431iLH103,113,162,172..5F..ARL199601-200308

*FGR=41:10=4.100,W(LSD)

sub41110-3D060

main41110-35640iRZH103,113..5F..ARL199508-199511

*FGR=43:10=4.300,W(LSD)

sub41110-3D040

main41110-3D040iRZH103,113..5F..ARL199511-200308

*FGR=43:10=4.300,W(LSD)

sub41110-3D041

main41110-3D060iLH162,172,RZH103,113..5F..ARL200308-200501

*FGR=41:10=4.100,W(LSD)

sub41110-3D061

main41110-3D210iLH114,RZH114..RHD200408-200602

*FGR=41:9=4.555,W(LSD)

sub41110-3D211

main41110-3D260iRZH125..4FC;LH112,RZH112;LH114,RZH114..LHD200408-200602

*FGR=41:9=4.555

sub41110-3D261

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iRZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172..RHD..SRF..4D..STD..GEN;RZH113..4D..(03S,06S,09S)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH10#,11198908-200602

41115RING, DIFFERENTIAL OIL STORAGE

main41115-35010iRZH103,113,153..5F;RZH102,105,115,125,135..09S,12S,14S,15S199511-199808

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29537iRZH112..5D;RZH112..03S;RZH103,113,125..4FC;LH10#,11#,RZH102,104,114200201-200408

*FGR=41:9=4.555

sub41201-80484

main41201-29785iLH103,113..5F..ARL198908-199907

*FGR=41:10=4.100

sub41201-39677

sub41204-35081

sub41214-26011

main41201-29785iLH172..5F..ARL;LH103,113,115,162..5F..(ARL,GCC)199808-200108

*FGR=41:10=4.100,W(LSD)

sub41201-39677

sub41204-35081

sub41214-26011

main41201-29795iRZH103..GEN;RZH102,104,112,114..LHD199108-199808

*FGR=43:10=4.300

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29795iRZH102..RHD;RZH114..4F,5F;RZH104,112..4F;RZH102..LHD..4F198908-199108

*FGR=43:10=4.300,AXLE CODE=G282

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29805iRZH112..4D;RZH104..RHD;RZH103,113..4FC;RZH112..5D..03S;LH10#,11#,RZH102,114..GEN198908-200201

*FGR=41:9=4.556

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29815iLH103,113,RZH114..4FC198908-199003

*FGR=39:8=4.875

sub41201-29816

main41201-29816iLH166,176;LH103,113,125,RZH114..4FC199003-200201

*FGR=39:8=4.875

sub41201-29817

sub41204-35081

sub41214-26011

main41201-29817iLH166,176;LH162,172,184..4FC200201-200408

*FGR=39:8=4.875

sub41201-69615

main41201-29855iRZH102..RHD..06S;RZH103,113,125..4D..5F198908-199305

*FGR=43:10=4.300

sub41201-29856

main41201-29856iRZH103,113..5F..CBR;RZH113..LHD..STD..EFI;RZH102,105,115,125..09S,12S,14S,15S199305-199806

*FGR=43:10=4.300

sub41201-80104

main41201-39676iLH162,172..5F..ARL200108-200201

*FGR=41:10=4.100,W(LSD)

sub41201-39677

sub41204-35081

sub41214-26011

main41201-39677iLH162,172..5F..ARL200201-200308

*FGR=41:10=4.100,W(LSD)

sub41201-80520

main41201-80068iRZH103..RHD..GEN;LH103,113..5F..ARL;LH125,RZH135,153..5F;RZH113..RHD..4D..STD..GEN199611-200201

*FGR=41:10=4.100

sub41201-80179

sub41204-35081

sub41214-26011

main41201-80104iRZH115..CBR;RZH113,115..5F..STD..(ARL,CIS);RZH113,114..LHD..(03S,06S,15S);RZH102,105..LHD..STD..(CIS,GEN);LH172,RZH103,125..RHD..4D..5F..(GL,STD);LH103,105,113,115,199806-200201

*FGR=43:10=4.300

sub41201-80181

sub41204-35081

sub41214-26011

main41201-80179iRZH103..03S..GEN200201-200508

*FGR=41:10=4.100

sub41201-80724

main41201-80181iRZH113..GCC;RZH113..LHD..03S..GEN;RZH105,112,114..LHD..STD;RZH103,115,155..5F..(ARL,CIS,GCC);LH154,162,164,172,174,184,RZH104..5F..(CIS,GEN)200201-200602

*FGR=43:10=4.300

sub41201-80747

main41201-80182iRZH125..4FC;LH11#,RZH112,114200408-200602

*FGR=41:9=4.556

sub41201-80732

main41201-80183iLH184..4FC200408-200501

*FGR=39:8=4.875

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35028iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

sub90366-35087

main90366-35028iRZH103,113,125..4D..5F198908-199511

sub90366-35087

main90366-35044iRZH112..4D..06S198908-200408

main90366-35087iLH11#;RZH112,114..RHD;LH184,RZH125..4FC199511-200602

main90366-35087iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200602

W(DIFFERENTIAL OIL STORAGE RING)

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iRZH102..03S198908-200008

sub90366-30078

main90366-30025iRZH103,105,113,115,125..5F..(SGL,STD)198908-199511

sub90366-30067

main90366-30025iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

sub90366-30067

main90366-30067iLH11#;RZH112,114..RHD;LH184,RZH125..4FC199511-200602

main90366-30067iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200602

W(DIFFERENTIAL OIL STORAGE RING)

main90366-30078iRZH104..GL;RZH102..STD;RZH114..15S..GL;LH102,112..LHD..06S;LH114,RZH104,114..RHD;LH103,113,125,162..4FC..ARL199907-200408

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199511-200201

main90311-38133iRZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114..GL,STD198908-199601

sub90311-38047

main90311-41009iRZH112..5D;RZH112..03S;LH10#,11#,154,16#,17#,184,RZH10#,113,114,115,125,135,15#200201-200602

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iRZH103..03S..GEN198908-200602

OD=47,T=1.70

main90201-35498iRZH103..03S..GEN198908-200602

OD=47,T=1.73

main90201-35499iRZH103..03S..GEN198908-200602

OD=47,T=1.76

main90201-35500iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200602

OD=47,T=1.79

main90201-35501iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

OD=47,T=1.82

main90201-35502iRZH103..03S..GEN198908-200602

OD=47,T=1.85

main90201-35503iRZH103..03S..GEN198908-200602

OD=47,T=1.88

main90201-35504iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

OD=47,T=1.91

main90201-35505iRZH112..4D..06S198908-200602

OD=47,T=1.94

main90201-35506iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200602

OD=47,T=1.97

main90201-35507iRZH103..03S..GEN198908-200602

OD=47,T=2.00

main90201-35508iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

OD=47,T=2.03

main90201-35509iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

OD=47,T=2.06

main90201-35510iRZH112..4D..06S198908-200602

OD=47,T=2.09

main90201-35511iRZH112..4D..06S198908-200602

OD=47,T=2.12

main90201-35512iRZH103..03S..GEN198908-200602

OD=47,T=2.15

main90201-35513iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

OD=47,T=2.18

main90201-35514iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200602

OD=47,T=2.21

main90201-35515iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

OD=47,T=2.24,MARK 01

main90201-35516iRZH103..03S..GEN198908-200602

OD=47,T=2.27,MARK 02

main90201-35517iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

OD=47,T=2.30,MARK 03

main90201-35518iRZH112..4D..06S198908-200602

OD=47,T=2.33,MARK 04

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iRZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114..GL,STD198908-200201

main41204-35080iLH172..5D..03S;RZH114..LHD..15S;RZH113..5D..03S..GEN;RZH113..4D..5F..(ARL,GEN);LH172,174,RZH105..4D..5F..(CBR,DSL,EFI);RZH102,104,112,113,115..LHD..(03S,06S,12S,15S199808-200201

W(DIFFERENTIAL OIL STORAGE RING)

main41204-35080iRZH103,113,153..5F;RZH102,105,115,125,135..09S,12S,14S,15S199511-200201

main41204-35081iRZH103..03S..GEN200201-200405

sub41204-35082

main41204-35082iLH10#,11#,154,16#,17#,184,RZH10#,11#,125,135,15#200405-200602

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iLH10#,11#,125,RZH10#,11#,125198908-199308

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iRZH112..4D..06S200201-200602

OD=39.5

main90179-20001iLH10#,11#,125,RZH10#,11#,125198908-199308

main90179-20018iLH10#,11#,125,154,16#,17#,184,RZH10#,11#,125,135,15#199308-200201

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200201

main41214-26011iRZH103..03S..GEN200201-200602

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200602

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-24010iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

main41231-24010iRZH103,113,125..4D..5F198908-200602

main41231-24010iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200602

W(DIFFERENTIAL OIL STORAGE RING)

main41231-40011iRZH112;RZH113..DX;RZH103,113..4FC;LH10#,11#,125,RZH102,104,114..CBR,DSL198908-200408

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-35010iLH10#,11#,125,RZH10#,11#,125198908-199303

sub41252-35020

main41252-35020iLH10#,11#,125,RZH10#,11#,125199303-200201

main41252-35040iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200201

W(DIFFERENTIAL OIL STORAGE RING)

main41252-35040iLH172..DEFI;RZH113,115..(03S,15S)..GCC..EFI;LH172,RZH113..5D..06S..(DSL,EFI)199511-200201

main41252-35041iRZH112..4D..06S200201-200602

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50007iLH11#;RZH112,114..RHD;LH184,RZH125..4FC198908-200602

main90366-50007iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

main90366-50007iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200602

W(DIFFERENTIAL OIL STORAGE RING)

main90368-45066iRZH112..4D..06S198908-200408

main90368-50024iLH166,176198908-200408

W(LSD)

main90368-50024iLH166,176199808-200308

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35010iLH103,113,RZH113..5F..ARL;LH114,RZH103,114..RHD..4D..5F198908-199511

W(LSD)

sub41302-35040

main41302-35020iRZH102..RHD..06S;RZH103,113,125..4D..5F199010-199308

W(LSD)

sub41302-26010

main41302-35020iRZH103,113,125..5F198908-199508

sub41302-26010

main41302-35040iLH114,RZH114..RHD;LH103,113,166,176,RZH103,113..SRF..5F..(ARL,CIS)199511-200602

W(LSD)

sub41302-35041

sub90105-11063

main41311-40020iRZH103..GEN;RZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114198908-200408

sub41311-40021

sub90105-11063

main41311-60060iLH114,RZH114..RHD199508-200602

sub41311-60061

sub90105-11063

main41311-60060iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200602

W(DIFFERENTIAL OIL STORAGE RING)

sub41311-60061

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iLH115..RHD;LH103..5D..03S;LH103,113,115..ARL,GCC;LH125,RZH103,113,125..4FC;LH102,104,112,114,166,176,RZH102,104,112,114198908-200408

main41315-35020iLH11#;RZH112,114..RHD;LH184,RZH125..4FC198908-200602

main41315-35020iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

main41315-35020iRZH114..LHD..15S;RZH105,115..STD..CIS;RZH113..4D..5F..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S)..GL..(CBR,DSL);RZH10199808-200602

W(DIFFERENTIAL OIL STORAGE RING)

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iRZH103..GEN;RZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114198908-199305

main41316-35010iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

main41316-35010iRZH103,113,125..4D..5F198908-200602

41331GEAR, REAR DIFFERENTIAL SIDE

main41039-34070iLH162,172..5F..ARL199907-200408

W(LSD)

main41331-35011iRZH112..03S;LH114,RZH112,114..LHD..SG;LH10#,112,113,115,125,154,162,164,172,174,184,RZH10#,113,115,125,135,15#198908-200602

main41331-35030iLH114,RZH114..RHD;LH103,113,166,176,RZH103,113..SRF..5F..(ARL,CIS)198908-199907

W(LSD)

sub41039-34070

main41331-35040iRZH103,113,125..4D..5F198908-199508

sub41039-34060

sub41039-34080

main41331-35040iRZH102..RHD..5F199010-199108

NEW ZEALAND SPEC

sub41039-34060

sub41039-34080

41341PINION, REAR DIFFERENTIAL

main41341-30020iRZH103,105,113,115,125..5F..STD199408-200005

W(LSD)

sub41341-30050

main41341-35010iRZH102..RHD..06S;LH114,RZH103,113,114,125..RHD..4D..(4F,5F)198908-199408

W(LSD)

sub41341-14041

main41341-35020iLH114,RZH114..RHD198908-200602

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iRZH103..GEN;RZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114198908-200602

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN.198908-200602

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30052iRZH113..DX;RZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114198908-200602

main41351-30060iLH114198908-200602

W(LSD)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-14200iLH114,162,RZH103,114..RHD..4D..5F;LH166,172,176,RZH113..5F..(ARL,CIS)199907-200302

T=1.80

sub41361-14201

main41361-14210iLH114,162,RZH103,114..RHD..4D..5F;LH103,113,166,172,176,RZH113..SRF..5F..(ARL,CIS)199907-200302

T=1.70,MARK N

sub41361-14211

main41361-24010iRZH103,113,125..5F198908-199508

T=0.90

sub41361-60E10

main41361-24020iRZH102..RHD..06S;RZH103,113,125..4D..5F198908-199508

T=1.00

sub41361-60E50

main41361-24030iRZH103,113,125..5F198908-199508

T=1.10

sub41361-60E90

main41361-24040iRZH103,105,113,115,125..5F..STD198908-199508

T=1.20

sub41361-60F30

main41361-24050iRZH102..RHD..06S;RZH103,113,125..4D..5F198908-199508

T=1.30

sub41361-60F70

main41361-40021iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN.198908-200602

T=1.6

main41362-40021iRZH103..GEN;RZH103,113..4FC;LH10#,11#,125,RZH102,104,112,114198908-200602

T=1.7

main41363-40021iRZH112..4D..06S198908-200602

T=1.8

9161160814

main91611-60814

28 parts on this diagram · 5 diagrams in section
