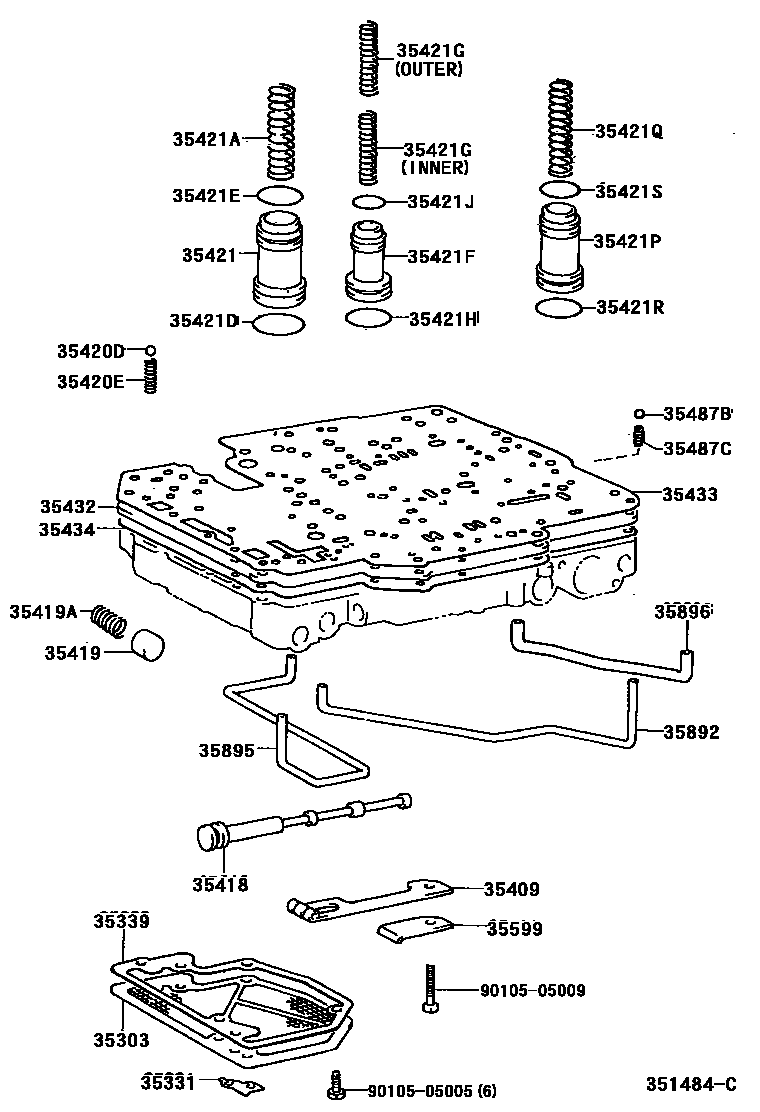

VALVE BODY & OIL STRAINER (ATM)
35303STRAINER SUB-ASSY, OIL
35331COVER, OIL STRAINER
35339GASKET, OIL STRAINER
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420BODY ASSY, LOWER VALVE
35420DBALL (FOR LOWER VALVE BODY)
OD=5.535,RUBBER
OD=6.35,RUBBER
35420ESPRING (FOR LOWER VALVE BODY)
35421PISTON, ACCUMULATOR, NO.1
35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)
35421DRING (FOR ACCUMULATOR PISTON NO.1)
35421ERING (FOR ACCUMULATOR PISTON NO.1)
35421FPISTON, ACCUMULATOR, NO.2
35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
OUTER
INNER
OUTER
UPPER
LOWER
35421HRING (FOR ACCUMULATOR PISTON NO.2)
35421JRING (FOR ACCUMULATOR PISTON NO.2)
35421PPISTON, ACCUMULATOR, NO.3
35421QSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)
35421RRING (FOR ACCUMULATOR PISTON NO.3)
35421SRING (FOR ACCUMULATOR PISTON NO.3)
35432PLATE, VALVE BODY, NO.1
35433GASKET, VALVE BODY, NO.1
35434GASKET, VALVE BODY, NO.2
35487BBALL, CHECK, NO.4
35487CSPRING, COMPRESSION (FOR CHECK BALL)
35599COVER, MANUAL DETENT SPRING
35892TUBE, OVERDRIVE BRAKE
35895TUBE, FRONT CLUTCH APPLY
35896TUBE, OVERDRIVE SWITCH APPLY
9010505005
9010505009
33 parts on this diagram · 11 diagrams in section
