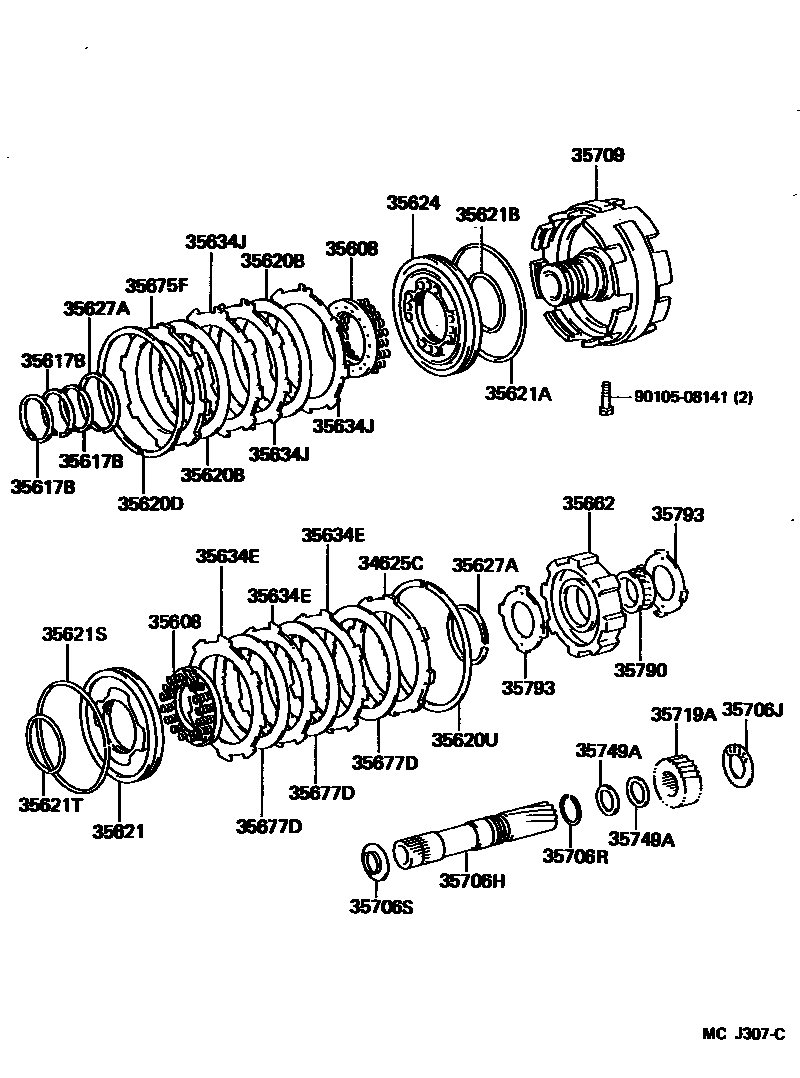

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

34625CFLANGE, OVERDRIVE BRAKE

main34625-22010iLH103,113,125,RZH103,113,114,125..4FC198908-199907

main35676-22030iLH162..4FC199911-200108

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-20010iLH162..4FC199907-200108

FRONT

main35608-22010iLH172..4FC200008-200208

REAR

main35608-30020iLH103,113,125..4FC199907-199911

REAR

35617BRING, CLUTCH DRUM OIL SEAL

main35617-16010×3iLH103,113,125,RZH103,113,114,125..4FC198908-199907

main35617-28010×3iLH172..4FC199907-200208

35620BDISC, CLUTCH (FOR BRAKE)

main35677-30100×2iLH103,113,RZH103,113,114..4FC198908-199608

main35677-30140×2iLH103,113,125,RZH103,113,125..4FC199608-199907

35620DRING (FOR BRAKE)

main90521-99139iLH103,113,125,RZH103,113,114,125..4FC198908-199907

35620URING (FOR REAR BRAKE)

main90521-99139iLH103,113,125,RZH103,113,114,125..4FC198908-199907

35621PISTON, BRAKE, NO.1

main35621-30010iLH103,113,125..4FC199907-199911

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99110iLH184,RZH125..4FC199907-200501

main90301-99192iLH103,113,RZH103,113,114..4FC198908-199808

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-56007iLH162..4FC..GEN199907-200408

main90301-57188iLH103,113,RZH103,113,114..4FC198908-199808

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iLH103,113,RZH103,113,114..4FC198908-199808

main90301-99107iLH103,113,125..4FC199907-199911

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-56007iLH184,RZH125..4FC199907-200501

main90301-57188iLH103,113,RZH103,113,114..4FC198908-199808

35624PISTON, 2ND BRAKE

main35624-22010iLH172..4FC199907-200208

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262×2iLH103,113,125,RZH103,113,114,125..4FC198908-199907

35634EPLATE, CLUTCH (FOR BRAKE)

main35648-30020×3iLH162..4FC199907-200108

35634JPLATE, CLUTCH, NO.3

main35634-22060×3iLH103,113,125,RZH103,113,125..4FC199308-199907

35662HUB, BRAKE

main35662-30010iLH103,113,125,RZH103,113,114,125..4FC198908-199907

35675FFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iLH103,113,125,RZH103,113,114,125..4FC198908-199907

main35675-22140iLH162..4FC..GEN199911-200408

35677DDISC, CLUTCH (FOR REAR BRAKE)

main35677-22070×3iLH184,RZH125..4FC199907-200501

main35677-30020×3iLH103,113,RZH103,113,114..4FC198908-199608

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30050iLH172..4FC199907-200208

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-21001iLH103,113,125,RZH103,113,114,125..4FC198908-199907

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iLH172..4FC199907-200208

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iLH103,113,125..4FC199907-200005

main35789-43020iLH103,113,125..4FC200005-200008

35709SUPPORT SUB-ASSY, CENTER

main35709-12020iLH184,RZH125..4FC199907-200501

main35709-30051iLH103,113,125,RZH103,113,114..4FC..(CBR,DSL)198908-199810

35719AGEAR, REAR PLANETARY SUN

main35719-30050iLH103,113,125,RZH103,113,114,125..4FC198908-199907

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iLH103,113,125,RZH103,113,114,125..4FC198908-199907

35790CLUTCH ASSY, 1 WAY

main35791-30020iLH103,113,125,RZH103,113,114,125..4FC198908-199907

main35791-30100iLH172..4FC200109-200208

35793RETAINER, 1 WAY CLUTCH

main35793-22011×2iLH103,113,125,RZH103,113,114,125..4FC198908-199907

9010508141

main90105-08141

28 parts on this diagram · 1 diagram in section
