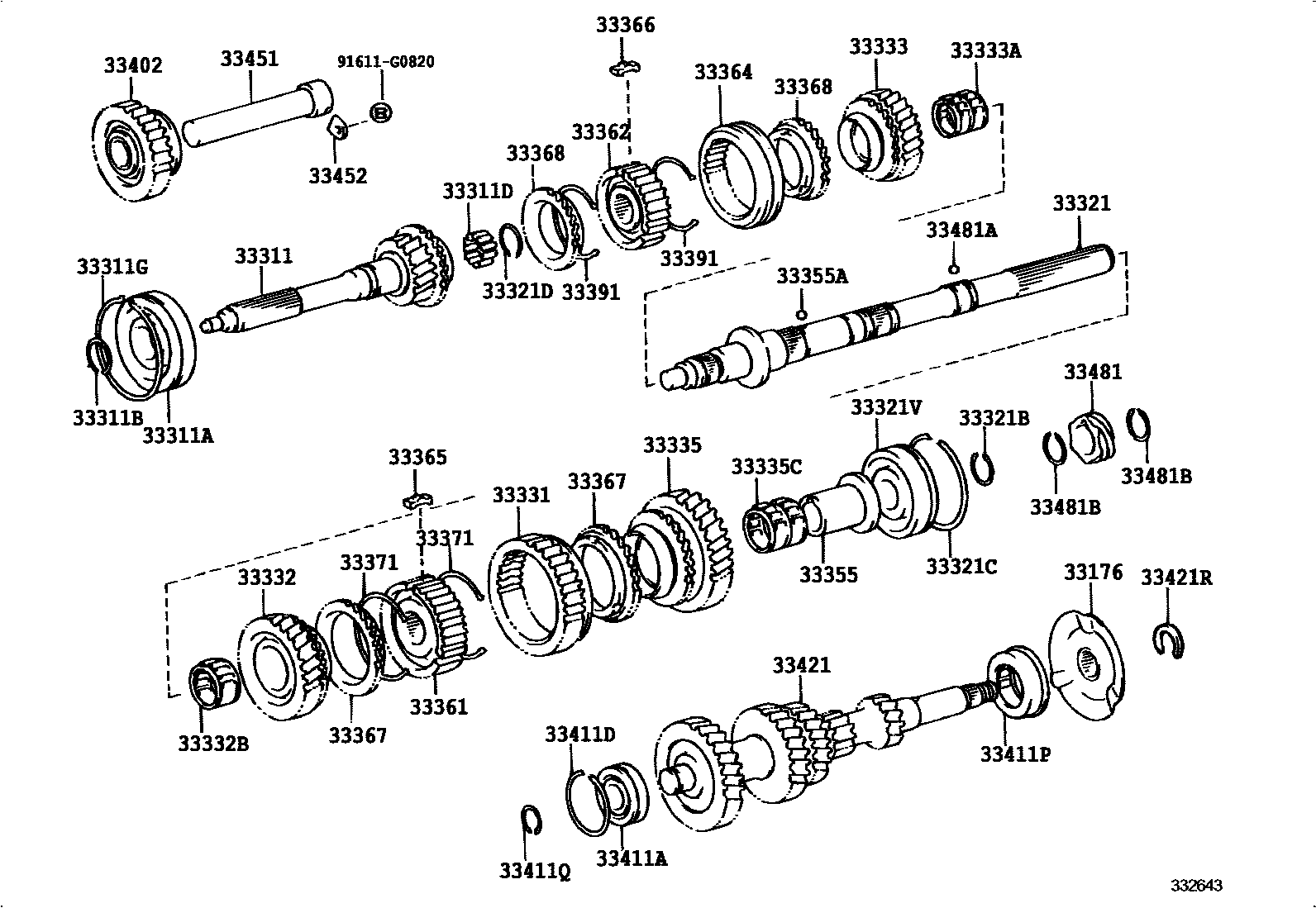

TRANSMISSION GEAR (MTM)

0001 1G55 0002 1G55 0003 1G55

33176SEPARATOR, MANUAL TRANSMISSION OIL, NO.1

main33176-35011iRZH102,104,112,114..4F198908-199108

33311SHAFT, INPUT

main33301-0W020iLH112..RHD;RZH112..4D..06S199805-199808

MALAYSIA SPEC

main33301-0W030iRZH112..4D..06S;LH174,RZH115..CIS;LH112,RZH105..LHD..SG..STD;LH114,RZH103,114..RHD..4D..5F;LH172,174,RZH114,155..(06S,10S,11S,15S)..GL..(CBR,DSL,EFI);LH10#,113,115,199805-200412

TAP:REFER TO ILLUSTRATION

sub33301-35071

main33301-26040iLH10#,11#,125,RZH10#,11#,125,135,153..4F,5F198908-199806

REFER TO ILLUSTRATION

sub33301-35071

main33301-35071iRZH112..4D..06S199806-200501

REFER TO ILLUSTRATION

main33301-35080iLH166,176199808-200408

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32024iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=2.05,MARK 0

main90520-30215iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=2.10,MARK 1

main90520-30216iRZH114..GL198908

T=2.15,MARK 2

main90520-30217iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=2.20,MARK 3

main90520-30218iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=2.25,MARK 4

main90520-30219iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=2.30,MARK 5

33311DBEARING, INPUT SHAFT

main90361-06002iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-76002iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33321SHAFT, OUTPUT

main33321-0B010iRZH112..4D..06S199907-200412

TAP:REFER TO ILLUSTRATION

sub33321-26050

main33321-0B010iLH174,RZH112..SG..(03S,12S)200211

REFER TO ILLUSTRATION

sub33321-26050

main33321-0W010iRZH115..CBR;RZH113..5F..ARL;RZH112..RHD..03S;RZH115..(CIS,GCC)..EFI;LH112,RZH105,112,113..LHD..STD;RZH103,114,125,155..4D..(03S,11S,14S,15S)..5F;LH10#,113,114,115,1199805-200208

TAP:REFER TO ILLUSTRATION

main33321-26050iRZH114..GL198908-200501

REFER TO ILLUSTRATION

main33321-28010iLH166,176199808-200408

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25005iRZH114..GL198908

T=2.67-2.72,MARK A

main90520-25006iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=2.73-2.78,MARK B

main90520-25009iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=2.79-2.84,MARK C

main90520-25010iRZH114..GL198908

T=2.85-2.90,MARK D

main90520-25011iRZH114..GL198908

T=2.91-2.96,MARK E

main90520-25012iRZH114..GL198908

T=2.97-3.02,MARK F

main90520-25013iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=3.03-3.08,MARK G

main90520-25014iRZH114..GL198908

T=3.09-3.14,MARK H

main90520-25015iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=3.15-3.20,MARK J

main90520-25016iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=3.21-3.26,MARK K

main90520-25017iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=3.27-3.32,MARK L

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-71221iRZH114..GL198908

T=1.65,ID=71.1

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iRZH114..GL198908-200602

T=1.85-1.90,MARK D-1,REFER REPAIR MANUAL

main90520-28011iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200602

T=1.95-2.00,MARK E-1,REFER REPAIR MANUAL

main90520-28012iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908-200602

T=1.75-1.80,MARK C-1,REFER REPAIR MANUAL

main90520-28013iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200602

T=2.05-2.10,MARK F-1,REFER REPAIR MANUAL

main90520-28245iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908-200602

T=1.80-1.85,MARK D,REFER REPAIR MANUAL

main90520-28246iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200602

T=1.90-1.95,MARK E,REFER REPAIR MANUAL

main90520-28248iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908-200602

T=2.00-2.05,MARK F,REFER REPAIR MANUAL

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-30059iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

33331GEAR, REVERSE

main33331-0K020iLH174..15S..(CIS,GEN);RZH112,155..SRF..(03S,06S,11S);RZH103,113,115,125..5F..(ARL,CIS,GCC);LH114,RZH105,113,114..LHD..4D..STD..(CIS,GEN);LH10#,112,154,162,164,172,1200307-200412

sub33331-71010

main33331-0K020iLH114,RZH114..RHD200307

TAP:REFER TO ILLUSTRATION

sub33331-71010

main33331-0W010iRZH112..4D..06S199608-200208

MALAYSIA SPEC

sub33331-0K020

main33331-0W010iLH174,RZH112..SG..(03S,12S)200211

sub33331-0K020

main33331-0W020iRZH114..15S;RZH113..LHD..EFI;RZH115..STD..CBR;LH172,RZH125..RHD..5F;LH10#,11#,125,184,RZH102,104,112..CIS,GEN;RZH103,105,113,115..5F..STD..(ARL,CIS)..EFI;LH174,RZH1199805-200008

TAP:REFER TO ILLUSTRATION

sub33331-0K020

main33331-0W020iRZH112,115..SRF..CBR;RZH113..LHD..03S..GEN;RZH115..(CIS,GCC)..EFI;LH174,RZH114..(10S,15S)..(CIS,GEN);RZH103,105,113,125,155..5F..(ARL,CIS,GCC);LH10#,11#,154,162,164199907-200307

sub33331-0K020

main33331-35060iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199012

sub33331-35061

main33331-35061iRZH103..03S..GEN199012-200501

REFER TO ILLUSTRATION

sub33331-35062

main33331-35061iLH166,176199907-200408

sub33331-35062

main33331-35062iLH114,RZH113,114,115200501

REFER TO ILLUSTRATION

sub33331-71010

33332GEAR, 2ND

main33033-0W030iRZH112..4D..SG;LH174,RZH115..CIS;LH112,RZH105..LHD..SG..STD;LH174,RZH103..4D..(03S,10S,12S)..5F;LH172,RZH114,155..(06S,11S,15S)..GL..(CBR,DSL,EFI);LH114,172,RZH114.199805-200412

TAP:REFER TO ILLUSTRATION

sub33033-26011

main33033-26011iRZH114..GL198908-200501

REFER TO ILLUSTRATION

main33033-26021iLH172..DEFI199405-200501

main33033-35011iLH166,176199808-200408

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-38002iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

33333GEAR, 3RD

main33034-0W030iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..5D..GEN;RZH112..RHD..SP;LH112,154,184..4D..GEN;RZH113,115,125..5F..(ARL,GCC);LH114,172,RZH113,114..LHD..4D..STD..GEN;LH199805-200602

TAP:REFER TO ILLUSTRATION

main33034-25030iLH172..DEFI200108-200501

main33034-26041iLH112..DX199405-199508

sub33034-35050

main33034-26051iRZH102,103,113..4F,5F;LH10#,11#,125,RZH104,105,112,114,115,125,135,153..(4F,5F)..(GL,STD)198908-199806

REFER TO ILLUSTRATION

sub33034-27010

main33034-26060iRZH112..RHD..SP;LH172..LHD..5D..GEN;LH174..15S..(CIS,GEN);RZH113..LHD..03S..GEN;RZH105,113,115,155..CIS,GCC;LH10#,11#,154,164,RZH102,104,114200311-200602

REFER TO ILLUSTRATION

main33034-27010iRZH114..GL199806-200311

REFER TO ILLUSTRATION

main33034-35030iLH166,176199808-200408

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-35005iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33335GEAR, 1ST

main33032-0W020iLH112..RHD;RZH112..4D..06S199805-199808

MALAYSIA SPEC

main33032-0W040iRZH114..15S;RZH113..LHD..EFI;RZH115..STD..CBR;LH172,RZH125..RHD..5F;LH10#,11#,125,184,RZH102,104,112..CIS,GEN;RZH103,105,113,115..5F..STD..(ARL,CIS)..EFI;LH174,RZH1199805-200412

TAP:REFER TO ILLUSTRATION

sub33032-26030

main33032-26020iLH166,176199808-200408

main33032-26030iRZH103..03S..GEN198908-200501

REFER TO ILLUSTRATION

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-39011iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33355RACE, 1ST GEAR BEARING INNER

main33355-0W010iLH114,172,RZH114..RHD..SRF..4D..(03S,15S)..STD..GEN199808-200412

TAP:REFER TO ILLUSTRATION

sub33355-35020

main33355-35020iLH172..RHD..SRF..4D..03S..STD..GEN198908-200501

REFER TO ILLUSTRATION

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-0W010iLH112..RHD;RZH112..4D..06S..CBR199608-200412

TAP:REFER TO ILLUSTRATION

sub33361-35020

main33361-35020iRZH114..GL198908-200501

REFER TO ILLUSTRATION

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-0K010iLH174..12S;LH114,RZH112,114..RHD..SG;LH172..RHD..SRF..4D..03S..STD..GEN200410-200510

TAP:REFER TO ILLUSTRATION

sub33362-0W010

main33362-0W010iRZH112..5D;RZH112..03S;LH172..03S..GL;RZH113,115..GCC;RZH113..LHD..03S..GEN;LH112,114,154,184..4D..GEN;LH172,174,RZH114..STD..GEN..(CBR,DSL)199608-200412

TAP:REFER TO ILLUSTRATION

sub33362-35040

main33362-35040iRZH103..03S..GEN198908-200501

REFER TO ILLUSTRATION

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-0W010iRZH112..4D..SG;LH174,RZH115..CIS;LH112,RZH105..LHD..SG..STD;LH174,RZH103..4D..(03S,10S,12S)..5F;LH172,RZH114,155..(06S,11S,15S)..GL..(CBR,DSL,EFI);LH114,172,RZH114.199608-200412

TAP:REFER TO ILLUSTRATION

sub33364-26020

main33364-26020iRZH103..03S..GEN199209-200501

REFER TO ILLUSTRATION

main33364-35030iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199209

sub33364-26020

sub33213-35033

sub33220-26010

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-35020iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200312

sub33365-35021

main33365-35021iLH174,RZH112..SG..(03S,12S)200312

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-35040iLH112..LHD;RZH112..SRF;LH174,RZH114..10S,15S;LH10#,113,114,115,125,154,16#,172,176,184,RZH10#,113,115,125,135,15#..5F198908-200312

sub33366-35041

main33366-35041iLH172..HRF;LH172..5D..GEN;LH172..GL..DSL;LH162,RZH112..SRF..5F..GEN;LH172,RZH113..LHD..4D..GEN;LH172,174..4D..(06S,15S)..(CIS,GEN)..DSL;RZH105,113,115,125,155..5F..199907-200312

33367RING, SYNCHRONIZER, NO.1

main33368-20012iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33368RING, SYNCHRONIZER, NO.2

main33367-14010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031iRZH114..GL198908

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-0W010iLH112..RHD;RZH112..4D..06S..CBR199608-200208

MALAYSIA SPEC

sub33402-0W020

main33402-0W010iLH174,RZH112..SG..(03S,12S)200211

sub33402-0W020

main33402-0W020iRZH114..15S;RZH113..LHD..EFI;RZH115..STD..CBR;LH172,RZH125..RHD..5F;LH10#,11#,125,184,RZH102,104,112..CIS,GEN;RZH103,105,113,115..5F..STD..(ARL,CIS)..EFI;LH174,RZH1199805-200412

TAP:REFER TO ILLUSTRATION

sub33402-60040

main33402-35050iRZH114..GL198908-200501

REFER TO ILLUSTRATION

sub33402-60040

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-25023iRZH114..GL198908

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-49222iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=1.07,OD=55.6

33411PBEARING, COUNTERSHAFT CENTER

main90365-31006iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23089iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=2.10-2.15

main90520-23090iRZH114..GL198908

T=2.20-2.25

main90520-23115iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=2.05-2.10

main90520-23143iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=2.15-2.20

main90520-23144iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=2.25-2.30

main90520-23145iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=2.30-2.35

33421GEAR, COUNTER

main33421-0W040iLH112..RHD;RZH112..4D..06S199805-199808

MALAYSIA SPEC

main33421-0W050iLH172..03S..GL;RZH112..RHD..SP;RZH113..LHD..03S..GEN;LH112,154,184..4D..GEN;LH114,RZH112,114..LHD..STD;RZH113,115,125..5F..(ARL,GCC);LH172,174..(03S,06S,15S)..STD..199805-200412

TAP:REFER TO ILLUSTRATION

main33421-26100iRZH103..03S..GEN198908-200501

REFER TO ILLUSTRATION

main33421-26140iLH112..DX199405-200501

main33421-35170iLH166,176199808-200408

33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)

main90520-19008iRZH114..GL198908

T=2.85

main90520-19009iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=2.90

main90520-19010iRZH114..GL198908

T=2.95

main90520-19011iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=3.00

main90520-19012iRZH114..GL198908

T=3.05

main90520-19013iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908

T=3.10

main90520-19014iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=3.15

33451SHAFT, REVERSE IDLER GEAR

main33451-28010iRZH114..15S;LH10#,11#,125,154,16#,17#,184,RZH10#,112,113,115,125,135,15#..5F198908-200502

sub33451-28011

main33451-28011iLH114,17#,RZH11#200502

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-36030iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-20070iRZH114..GL199608-200308

N=5,MARK 5X17-19

main33481-22010iRZH103..03S..GEN198908-200508

N=6,MARK 6X18-20

main33481-30040iLH113,115..RHD..SG;LH102,103,104,112,114,RZH102,104,112,114..(GL,STD)..GEN198908-199608

N=6,MARK 6X21-23

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-06004iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908-200412

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26061iRZH102,112..SRF;RZH103..RHD..5F..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..5F..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D198908

T=1.50,OD=31.3

91611G0820

main91611-G0820

42 parts on this diagram · 3 diagrams in section
