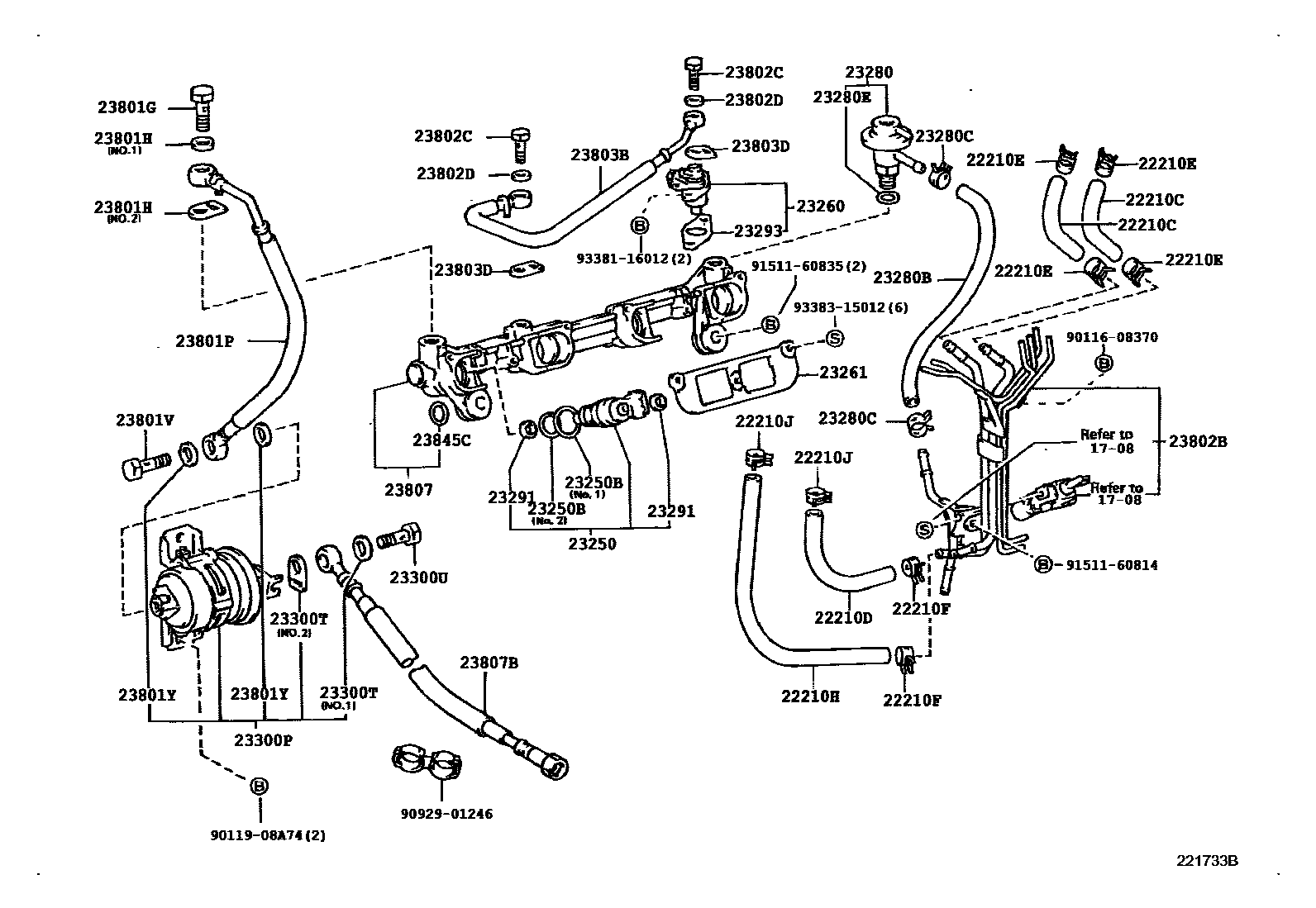

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1708

22210BODY ASSY, THROTTLE

main22210-75031i2RZE..RZH113199405-199508

main22210-75140i1RZE..RZH102,112199508-199703

main22210-75160i2RZE..RZH103,113,135,153199508-199808

main22210-75161i2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN)199808-200508

22210CHOSE, WATER BY-PASS, NO.1

main16261-75030i2RZE..RZH113199405-199508

22210DHOSE, WATER BY-PASS, NO.2

main99555-10200i2RZE..RZH113199405-199508

*H,L=140

22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

main96135-41300i2RZE..RZH113199405-199508

sub96135-51300

22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

main96135-41300i2RZE..RZH113199405-199508

sub96135-51300

22210HHOSE, WATER BY-PASS, NO.3

main99555-10300i2RZE..RZH113199405-199508

*H,L=250

sub99555-10500

22210JCLIP(FOR WATER BY-PASS HOSE NO.3)

main96135-41300i2RZE..RZH113199405-199508

sub96135-51300

23250INJECTOR ASSY, FUEL

main23209-79035i2RZE..RZH113199405-199508

main23209-79105i2RZE..RZH103,105,113,115,125,135,15#199508-200508

main23209-79115i1RZE..RZH102,112199508-199703

23250BRING, O(FOR FUEL INJECTOR)

main90301-14006i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200508

NO.2

main90301-17007i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200508

NO.1

23260INJECTOR ASSY, COLD START FUEL

main23260-79186i2RZE..RZH113199405-199508

23261COVER, INJECTOR

main23261-75020i2RZE..RZH103,105,113,115,125,135,15#199405-200508

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75010i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200508

23280BHOSE, FUEL PRESSURE REGULATOR RETURN

main95333-06020i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405

sub95337-06020

main95333-06020i2RZE..RZH103,105,113,115,125,135,15#199907-200508

L=200(*H,L=190)

sub95337-06020

23280CCLAMP OR CLIP(FOR FUEL PRESSURE REGULATOR RETURN HOSE)

main96135-41100i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200204

sub96135-51100

main96135-51100i2RZE..RZH103..03S..GEN199907-200508

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-09002i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200508

23291INSULATOR, INJECTOR VIBRATION

main23291-75020i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200508

23293GASKET, COLD START INJECTOR

main23293-75010i2RZE..RZH113199405-199508

23300PFILTER, FUEL(FOR EFI)

main23300-79255i2RZE..RZH113..DX199405-199506

main23300-79485i2RZE..RZH113..STD199408-199506

main23300-79505i1RZE..RZH102,112;2RZE..RZH113..DX199506-199703

main23300-79515i2RZE..RZH103,105,113,115,125,135,153..03S,06S,12S,14S,15S199506-200401

main23300-79605i2RZE..RZH103,105,113,115,125,135,15#200401-200508

23300TGASKET(FOR FUEL FILTER)

main90430-12017i1RZE,2RZE..RZH102,103,105,112,113,115,125,135,153199405-199905

NO.2

main90430-12026i1RZE,2RZE..RZH102,103,105,112,113,115,125,135,153199405-199905

NO.1

main90430-12026i2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN)199905-200508

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i2RZE..RZH103,105,113,115,125,135,15#199405-200508

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12033i2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN)199905-200508

main90401-12097i1RZE,2RZE..RZH102,103,105,112,113,115,125,135,153199405-199905

23801HGASKET(FOR FUEL PIPE)

main23279-74010i2RZE..RZH103,105,113,115,125,135,15#199905-200508

NO.1 & NO.2

main90430-12017i1RZE,2RZE..RZH102,103,105,112,113,115,125,135,153199405-199905

NO.2

main90430-12026i1RZE,2RZE..RZH102,103,105,112,113,115,125,135,153199405-199905

NO.1

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-75010i2RZE..RZH113199405-199506

main23801-75050i2RZE..RZH103,105,113,115,125,135,15#199506-200508

23801VBOLT, UNION

main90401-12097i1RZE,2RZE..RZH102,103,105,112,113,115,125,135,153199405-200508

23801YGASKET

main90430-12026i2RZE..RZH103,105,113,115,125,135,15#199405-200508

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-75010i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..(ARL,GEN);1RZE,2RZE..RZH102,103,112,125,135,153..RHD199508-200508

main23802-75021i2RZE..RZH113199405-199508

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08003i2RZE..RZH113199405-199508

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08014i2RZE..RZH113199405-199508

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-75011i2RZE..RZH113199405-199508

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08015i2RZE..RZH113199405-199508

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-75010i2RZE..RZH113199405-199508

main23807-75030i2RZE..RZH105,115..STD..CIS;2RZE..RZH113..4D..STD..(ARL,GEN);1RZE,2RZE..RZH102,103,112,125,135,153..RHD199508-200402

sub23807-75031

main23807-75031i2RZE..RZH103,105,113,115,125,135,15#200402-200508

23807BHOSE, FUEL DELIVERY PIPE

main23906-75030i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200508

23845CINSULATOR, FUEL PIPE

main23845-75010i2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)199405-200508

9011608370

main90116-08370

9011908A74

main90119-08A74

9092901246

main90929-01246

9151160814

main91511-60814

9151160835

main91511-60835

9338116012

main93381-16012

9338315012

main93383-15012
