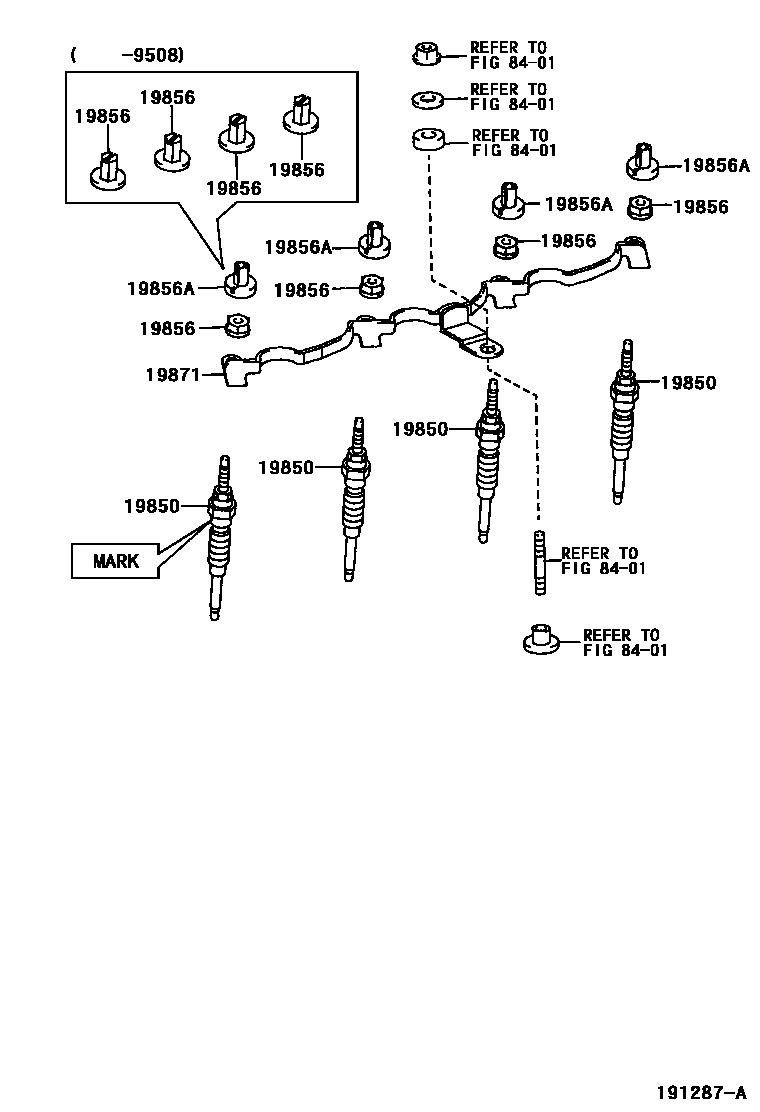

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1W(INTEGRATED IGNITION ASSEMBL0005 1

19850PLUG ASSY, GLOW

main19850-05010i3L..LH103..4D..GEN199901-200312

*BV-GV=12V-11V,(L)

main19850-54090i3L..LH125..HRF..GEN198908-199808

*BV-GV=12V-11V

main19850-54090i2L,3L..LH102,103,104,11#,125..ARL,GCC,GEN199808-199901

*BV-GV=12V-11V,MARK 19850-54090

main19850-54120i3L..LH103..4D..GEN199901-200312

*BV-GV=12V-11V,(J)

main19850-54120i3L..LH125..ARL;2L,3L..LH10#,11#,125..SMRF,SRF199608-200501

*BV-GV=12V-11V

main19850-54120i3L..LH115..CIS;3L..LH103..5D..03S;3L,5L..LH115,172..RHD;3L,5L..LH113,184..HRF,SMRF;2L,3L,5L..LH105,112,114,166,174,176..LHD199808-199901

*BV-GV=12V-11V,MARK 19850-54120

main19850-54120i2L,3L,5L..LH10#,11#,125,166,17#,184199901-200210

*BV-GV=12V-11V,MALAYSIA SPEC

main19850-54120i5L..LH172,174..LHD..4D..GEN200406-200501

*BV-GV=12V-11V,PERU SPEC

main19850-54140i2L..LH114..RHD199907-200501

*BV-GV=12V-11V,MARK 19850-54140

19856NUT, CONNECTING(FOR GLOW PLUG)

main90179-04019i2L,3L..LH10#,11#,125198908-199508

main90179-04030i5L..LH172..4FC199508-200501

19856AGROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)

main90189-04024i5LE..LH172;5L..LH174..12S199508-200501

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

8401

5 parts on this diagram · 4 diagrams in section
