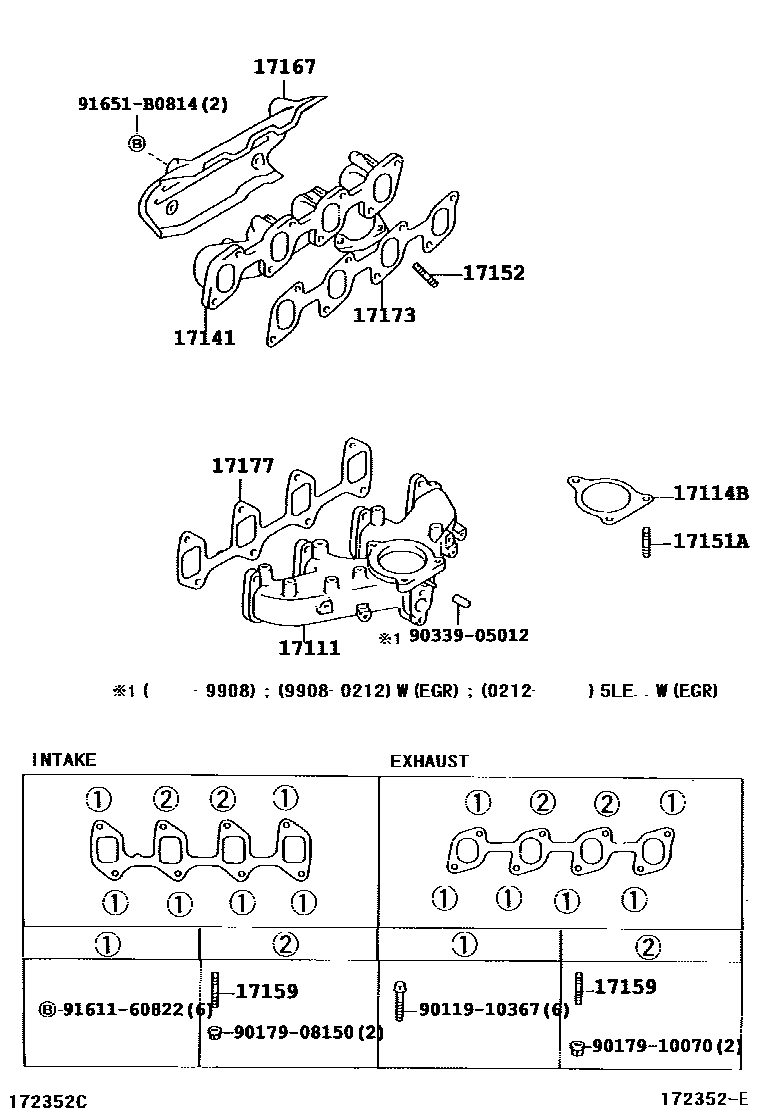

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-54092i5L..LH172,184199808-200206

main17101-54092i5LE..LH172200008-200312

W(EGR)

main17101-54093i5L..LH162,172,184..5F..ARL200206-200212

W(EGR)

sub17111-54140

main17101-54101i5L..LH174..GL;2L,3L,5L..LH10#,11#,125,166,176198908-199908

main17101-75011i2RZE..RZH113199405-199508

main17101-75020i2RZE..RZH113..4D..STD;2RZE..RZH105,115..STD..CIS;1RZE,2RZE..RZH102,103,112,125,135,153..RHD199508-200010

main17101-75021i2RZE..RZH103..03S..GEN200010-200508

main17111-54112i3L..LH103..4D..GEN199908-200206

W/O(EGR)

main17111-54112i2L..LH112..RHD200206-200408

MALAYSIA SPEC

main17111-54113i5L..LH174..12S200402

main17111-54113i5L..LH174..CIS;2L,5L..LH10#,16#,176..CIS,GEN200206-200501

W/O(EGR)

main17111-54140i5L..LH172,174..LHD..4D..GEN200212-200501

W(EGR)

main17111-75010i1RZ..RZH112..4D..06S198908-200208

17114BGASKET, INTAKE FLANGE

main17116-54021i2L,3L,5L..LH10#,11#,125,16#,17#,184198908-200008

sub17116-54030

main17116-54030i5LE..LH172;5L..LH172..HRF;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..4D..06S..STD;5L..LH172..5F..(ARL,GCC);2L,5L..LH114,172..LHD..4D;2L,5L..LH112,154,174,184.200008-200501

17141MANIFOLD, EXHAUST

main17141-54110i2L,3L..LH10#,11#,125198908-199602

main17141-54111i5L..LH172..RHD..SRF..4D..03S..STD..GEN199602-200501

W/O(EGR)

main17141-54111i5L..LH174..12S200211-200312

main17141-54121i5LE..LH172199907-200501

W(EGR)

main17141-54121i5L..LH172,184199808-199907

main17141-75010i1RZE..RZH102,112199405-199703

main17141-75020i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S198908-200208

17151ABOLT, STUD(FOR MANIFOLD TO VENTURI)

main90116-08145i5LE..LH172200108-200312

main90116-08292i5LE..LH172200312-200501

main90116-08293i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F198908-200501

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

main90116-10088i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200301-200312

(J)

main90116-10149i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

main90116-T0001i5L..LH172..RHD..SRF..4D..03S..STD..GEN200206-200312

(L)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08220i5LE..LH172198908-200501

INTAKE SIDE

main90116-08220i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199301-200312

INTAKE SIDE,(J)

main90116-10141i5LE..LH172199907-200501

EXHAUST SIDE

main90116-10141i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200312

EXHAUST SIDE,(J)

main90116-10163i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

main90116-T0003i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200304-200312

INTAKE SIDE,(L)

main90126-T0004i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200304-200312

EXHAUST SIDE,(L)

main92132-60820i2L,3L..LH10#,11#,125199204-199301

INTAKE SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-75010i1RZE,2RZE..RZH102,103,112,113,135,153198908-199706

sub17167-75060

main17107-75020i1RZ,2RZ..RZH10#,11#,125198908-199706

W(HOT AIR INTAKE)

sub17167-75110

main17167-54070i2L,3L..LH10#,11#,125198908-199505

main17167-54110i5L..LH174..12S199505-200501

main17167-75060i2RZE..RZH105,115..STD..CIS;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN)199706-200508

main17167-75110i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ..RZH102,104,105,113,114,115199706-200208

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i5L..LH172..HRF;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..5F..(ARL,GCC);2L,5L..LH112,154,184..4D;2L,5L..LH114,172..LHD..4D;5L..LH172,174..4D..(06S,15S)..STD..198908-200501

main17173-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54020i2L,3L..LH10#,11#,125198908-199507

sub17177-54021

main17177-54021i5L..LH174..12S199507-200501

main17177-75010i1RZ,2RZ#..RZH10#,11#,125198908-199506

sub17177-75011

main17177-75011i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15199506-200208

9011910367

main90119-10367

9017908150

main90179-08150

9017910070

main90179-10070

9033905012

main90339-05012

9161160822

main91611-60822

91651B0814

main91651-B0814

15 parts on this diagram · 3 diagrams in section
