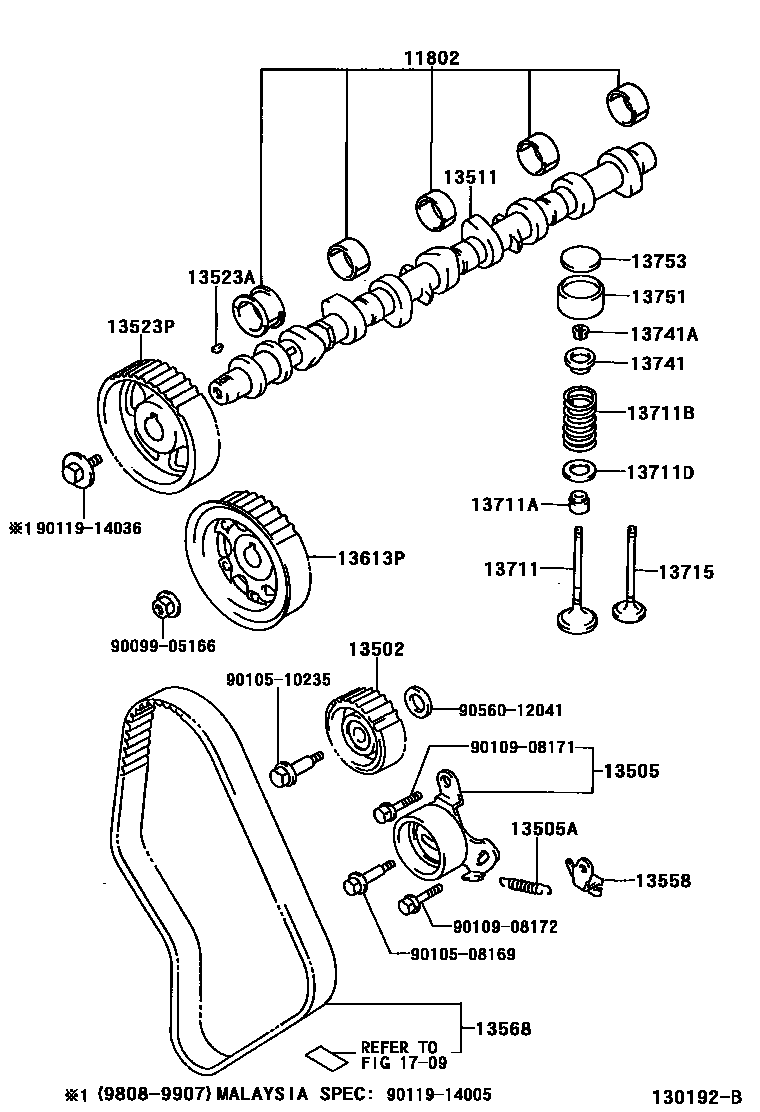

CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11802-54020i2L..LH112..RHD198908-200401

STD

sub11802-54021

main11803-54020i5L..LH162..4FC;5L..LH172..06S..GL198908-200401

U/S 0.125

sub11803-54021

main11804-54020i2L..LH112..RHD198908-200401

U/S 0.25

sub11804-54021

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54030i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54020i2L,3L..LH10#,11#,125198908-199111

sub13505-54021

main13505-54021i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199111-200312

13505ASPRING, TENSION(FOR IDLER)

main90506-18060i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13511CAMSHAFT

main13501-05020i5L..LH174..12S200211-200312

(L)

main13501-05020i5L..LH174..12S200211-200312

MALAYSIA SPEC,(L)

main13501-54050i2L..LH114..RHD198908-200501

main13501-54070i5L..LH162..4FC;5L..LH172..06S..GL198908-200501

main13501-54070i5L..LH174..12S200211-200312

(J)

main13501-54070i5L..LH174..12S200211-200312

MALAYSIA SPEC,(J)

main13501-54090i5LE..LH172200312-200501

main13501-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-75010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13523PPULLEY, CAMSHAFT TIMING

main13523-54040i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13558BRACKET, SPRING(FOR IDLER)

main13558-54020i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13568BELT, TIMING

main13568-54070i2L,3L..LH10#,11#,125198908-199205

sub13568-59065

main13568-59065i2L,3L..LH10#,11#,125199205-199512

sub13568-59066

main13568-59066i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199512-200305

sub13568-59067

sub13568-59106

main13568-59067i2L,5L#..LH10#,11#,154,16#,17#,184200305-200307

sub13568-59106

main13568-59106i2L,5L#..LH10#,11#,154,16#,17#,184200307

sub13568-59175

13613PPULLEY, INJECTION PUMP DRIVE

main13603-54030i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13711VALVE, INTAKE

main13711-17010i3L..LH103,113,115,125;2L,3L..LH102,105,112..LHD..SG199505-200501

main13711-54020i2L,3L..LH10#,11#,125198908-199505

main13711-54030i5L..LH166,17#,184199808-200501

main13711-75010i1RZE..RZH102,112199508-199703

main13711-75020i1RZ..RZH102,104,112,114198908-200007

sub13711-75021

main13711-75021i1RZ..RZH112..4D..06S200007-200208

main13711-75030i2RZ..RZH103,113..RHD..SG198908-199808

NEW ZEALAND SPEC

sub13711-75040

main13711-75030i2RZE..RZH103,113,135,153;2RZ#..RZH103,105,113,115,125..(03S,12S,14S,15S)..(ARL,CIS)198908-199907

sub13711-75040

main13711-75040i2RZ#..RZH103,105,113,115,125,135,15#199308-200508

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02053i2L,3L..LH10#,11#,125198908-199808

sub90913-02110

main90913-02109i2L,3L..LH10#,11#,125199601-199607

main90913-02110i2L,3L..LH10#,11#,125199607-200208

main90913-02116i2L,3L..LH10#,11#,125199704-199705

main90913-02117i5LE..LH172199705-200501

13711BSPRING, COMPRESSION(FOR INNER)

main90501-45033i2RZ..RZH103,113..06S..GEN199508-199808

NEW ZEALAND SPEC

main90501-45033i1RZ..RZH112..4D..06S198908-200208

main90501-45033i2RZ..RZH103,105,113,115..GCC,GEN199308-199907

INTAKE SIDE

main90501-48005i2RZ..RZH105,113,115..GCC199308-199907

EXHAUST SIDE

main90504-49001i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F198908-200501

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-23003i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13715VALVE, EXHAUST

main13715-17010i3L..LH103,113,115,125;2L,3L..LH102,105,112..LHD..SG199003-200501

main13715-54040i3L..LH103,105,113,115,125198908-199505

main13715-54050i5L..LH162..4FC;5L..LH172..06S..GL199808-200501

main13715-75020i1RZ#..RZH102,104,112,114198908-200208

main13715-75030i2RZE..RZH105,115..STD..CIS;2RZ..RZH103,105,113,115,125;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN)198908-200508

main13715-75070i2RZE..RZH103,113,125..ARL200201-200501

W(LPG)

13741RETAINER, VALVE SPRING

main13741-43010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

main13741-54020i5L..LH172..HRF;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..5F..(ARL,GCC);2L,5L..LH112,154,184..4D;2L,5L..LH114,172..LHD..4D;5L..LH172,174..4D..(06S,15S)..STD..198908-200501

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200501

13751LIFTER, VALVE

main13751-54010i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F198908-200501

main13751-64011i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

13753SHIM, VALVE ADJUSTING

main13753-54010i5L..LH162..4FC;5L..LH172..06S..GL198908-200501

T=2.50,MARK=T01

main13753-54060i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F198908-200501

T=2.60,MARK=T06

main13753-54110i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

T=2.70,MARK=T11

main13753-54160i5LE..LH172;5L..LH174..12S198908-200501

T=2.80,MARK=T16

main13753-54210i5LE..LH172;5L..LH174..12S198908-200501

T=2.90,MARK=T21

main13753-54260i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F198908-200501

T=3.00,MARK=T26

main13753-54310i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

T=3.10,MARK=T31

main13753-54360i2L..LH112..RHD198908-200501

T=3.20,MARK=T36

main13753-54410i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F198908-200501

T=3.30,MARK=T41

main13753-54420i5LE..LH172;5L..LH174..12S198908-200501

T=2.55,MARK=T42

main13753-54430i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

T=2.65,MARK=T43

main13753-54440i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

T=2.75,MARK=T44

main13753-54450i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN198908-200501

T=2.85,MARK=T45

main13753-54460i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

T=2.95,MARK=T46

main13753-54470i5L..LH174..CIS;5L..LH162..GEN;2L,5L..LH102,104,16#,176..4D..(03S,12S,15S)..5F198908-200501

T=3.05,MARK=T47

main13753-54480i2L..LH112..RHD198908-200501

T=3.15,MARK=T48

main13753-54490i3L..LH103,113,115,125;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

T=3.25,MARK=T49

main13753-65600i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=2.25

main13753-65620i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-200208

T=2.30

main13753-65640i1RZ..RZH112..4D..06S198908-200208

T=2.35

main13753-65660i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-200208

T=2.40

main13753-65680i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=2.45

main13753-65700i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-200208

T=2.50

main13753-65720i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=2.55

main13753-65740i1RZ..RZH112..4D..06S198908-200208

T=2.60

main13753-65760i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-200208

T=2.65

main13753-65780i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=2.70

main13753-65800i1RZ..RZH112..4D..06S198908-200208

T=2.75

main13753-65820i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=2.80

main13753-65840i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=2.85

main13753-65860i1RZ..RZH112..4D..06S198908-200208

T=2.90

main13753-65880i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=2.95

main13753-6B010i1RZ..RZH112..4D..06S198908-200208

T=3.00

main13753-6B030i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-200208

T=3.05

main13753-6B050i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=3.10

main13753-6B070i1RZ..RZH112..4D..06S198908-200208

T=3.15

main13753-6B090i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=3.20

main13753-6B110i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=3.25

main13753-6B130i1RZ..RZH112..4D..06S198908-200208

T=3.30

main13753-6B150i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

T=3.35

main13753-6B170i1RZ#,2RZ#..RZH10#,11#,125,135,153198908-200208

T=3.40

1709

9009905166

main90099-05166

9010508169

main90105-08169

9010510235

main90105-10235

9010908171

main90109-08171

9010908172

main90109-08172

9011914005

main90119-14005

9011914036

main90119-14036

9056012041

main90560-12041

29 parts on this diagram · 2 diagrams in section
