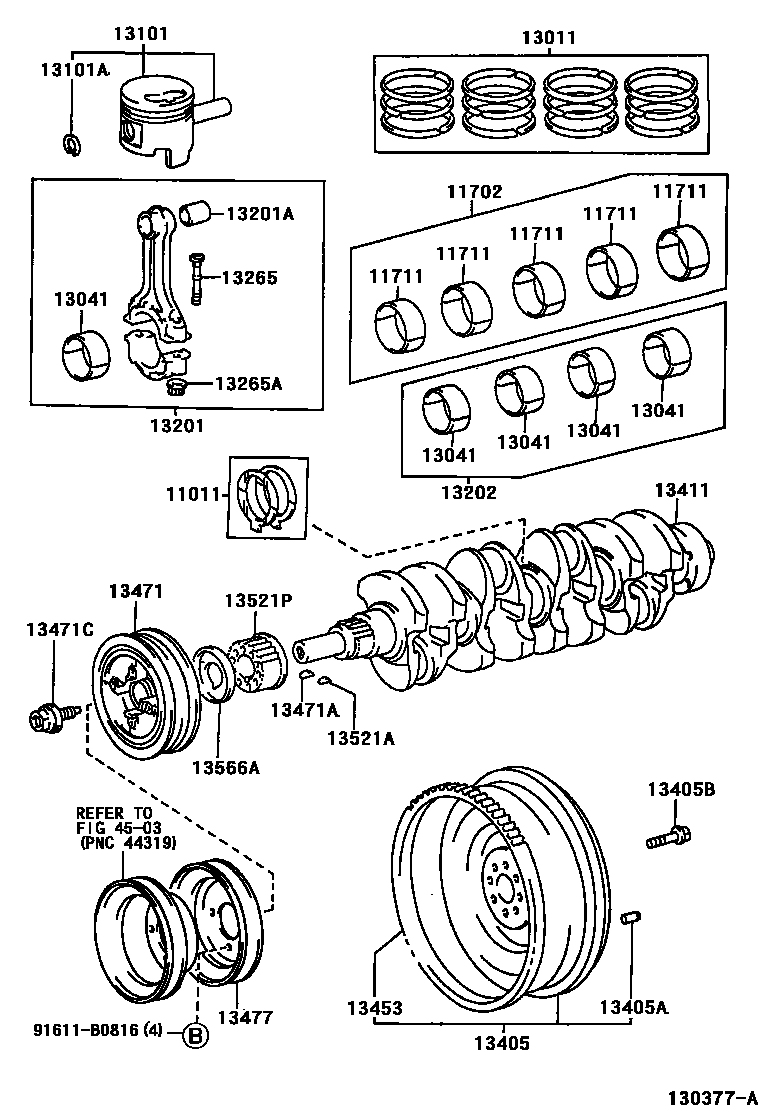

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-54020i5LE..LH172;5L..LH174..12S198908-200312

STD

main11011-75010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#198908-200208

STD

main11012-54020i2L,3L,5L#..LH10#,11#,125,154,16#,17#,184198908-200008

O/S 0.125

main11013-54020i2L,3L,5L#..LH10#,11#,125,154,16#,17#,184198908-200008

O/S 0.250

11702BEARING SET, CRANKSHAFT

main11704-54061i2L,3L,5L..LH10#,11#,125,154,16#,17#,184198908-200108

U/S 0.25

sub11704-54080

main11704-54080i2L,5L#..LH10#,11#,154,16#,17#,184200108

U/S 0.25

sub11704-54081

main11704-75010i1RZ,2RZ..RZH10#,11#,125198908-199308

U/S 0.25

sub11704-75020

main11704-75020i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199904

U/S 0.25

sub11704-75021

main11704-75021i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199904-200411

U/S 0.25

sub11704-75022

main11704-75022i1RZ,2RZ#..RZH11#,125,135,15#200411

U/S 0.25

main11705-54061i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200108

U/S 0.50

sub11705-54080

main11705-54080i2L,5L#..LH10#,11#,154,16#,17#,184200108

U/S 0.50

sub11705-54081

11711BEARING, CRANKSHAFT

main11071-75010-01i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1

sub11071-75020

main11071-75010-02i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2

sub11071-75020

main11071-75010-03i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3

sub11071-75020

main11071-75020-01i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199904

MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1

sub11071-75021

main11071-75020-02i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199904

MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2

sub11071-75021

main11071-75020-03i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199904

MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3

sub11071-75021

main11071-75021-01i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199907-200501

REFER TO REPAIR MANUAL,MARK 1,NO.2

sub11071-75022

main11071-75021-01i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199904

MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1

sub11071-75022

main11071-75021-02i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199904

MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2

sub11071-75022

main11071-75021-02i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199907-200501

REFER TO REPAIR MANUAL,MARK 2,NO.2

sub11071-75022

main11071-75021-03i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199904

MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3

sub11071-75022

main11071-75021-03i1RZ..RZH112..4D..06S199907-200501

REFER TO REPAIR MANUAL,MARK 3,NO.2

sub11071-75022

main11071-75022-01i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK1,NO.2

main11071-75022-02i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK2,NO.2

main11071-75022-03i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK3,NO.2

main11701-54061-01i5L..LH162,172;2L,5L..LH112,174..4D..STD;2L,5L..LH102,104,114,154,164,166,176,184..03S,10S,11S,12S,14S,15S198908-200108

MARK 1,REFER REPAIR MANUAL

sub11701-54080

main11701-54061-02i5L..LH162,172;2L,5L..LH112,174..4D..STD;2L,5L..LH102,104,114,154,164,166,176,184..03S,10S,11S,12S,14S,15S198908-200108

MARK 2,REFER REPAIR MANUAL

sub11701-54080

main11701-54061-03i5L..LH162,172;2L,5L..LH112,174..4D..STD;2L,5L..LH102,104,114,154,164,166,176,184..03S,10S,11S,12S,14S,15S198908-200108

MARK 3,REFER REPAIR MANUAL

sub11701-54080

main11701-54080-01i5L..LH172..4FC200108-200501

MARK 1,REFER REPAIR MANUAL

sub11701-54081

main11701-54080-02i5LE..LH172;5L..LH174..12S200108-200501

MARK 2,REFER REPAIR MANUAL

sub11701-54081

main11701-54080-03i2L,5L..LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN200108-200501

MARK 3,REFER REPAIR MANUAL

sub11701-54081

main11701-75010-01i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 1,NO.1:REFER TO REPAIR MANUAL,MARK 1

sub11701-75020

main11701-75010-02i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 2,NO.1:REFER TO REPAIR MANUAL,MARK 2

sub11701-75020

main11701-75010-03i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3

sub11701-75020

main11701-75020-01i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199904

MARK 1,NO.1:REFER TO REPAIR MANUAL,MARK 1

sub11701-75021

main11701-75020-02i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199904

MARK 2,NO.1:REFER TO REPAIR MANUAL,MARK 2

sub11701-75021

main11701-75020-03i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199904

MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3

sub11701-75021

main11701-75021-01i1RZ..RZH112..4D..06S199907-200501

REFER TO REPAIR MANUAL,MARK 1,NO.1

sub11701-75022

main11701-75021-01i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199904

MARK 1,NO.1:REFER TO REPAIR MANUAL,MARK 1

sub11701-75022

main11701-75021-02i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199907-200501

REFER TO REPAIR MANUAL,MARK 2,NO.1

sub11701-75022

main11701-75021-02i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199904

MARK 2,NO.1:REFER TO REPAIR MANUAL,MARK 2

sub11701-75022

main11701-75021-03i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZE..RZH103,114,125,135,153..03S,06S,12S,14S,15S199904

MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3

sub11701-75022

main11701-75021-03i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199907-200501

REFER TO REPAIR MANUAL,MARK 3,NO.1

sub11701-75022

main11701-75022-01i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK1,NO.1

main11701-75022-02i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK2,NO.1

main11701-75022-03i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK3,NO.1

13011RING SET, PISTON

main13011-54100i2L..LH102,104,112,114198908-199907

STD

main13011-54120i3L..LH103,105,113,115,125198908-200008

STD

main13011-54130i5LE..LH172;5L..LH174..12S199808-200312

STD

main13011-75020i1RZ#..RZH102,104,112,114198908-199704

STD

sub13011-75080

main13011-75030i2RZ#..RZH103,105,113,115,125198908-199605

STD

main13011-75070i2RZE..RZH105,115..STD..CIS;2RZ..RZH103,105,113,115,125;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN)199605-200508

STD

main13011-75080i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ..RZH102,104,114199704-200208

STD

main13013-54100i2L..LH102,104,112,114198908-199907

O/S 0.50

main13013-54120i3L..LH103,105,113,115,125198908-200008

O/S 0.50

main13013-54130i5L#..LH154,16#,17#,184199808-199907

O/S 0.50

main13013-75020i1RZ#..RZH102,104,112,114198908-199704

O/S 0.50

sub13013-75080

main13013-75030i2RZ#..RZH103,105,113,115,125198908-199605

O/S 0.50

main13013-75070i2RZE..RZH105,115..STD..CIS;2RZ..RZH103,105,113,115,125;2RZE..RZH103,125,135,153..RHD;2RZE..RZH113..4D..STD..(ARL,GEN)199605-200508

O/S 0.50

main13013-75080i1RZ..RZH112..4D..06S199704-200208

O/S 0.50

main13014-54100i2L..LH102,104,112,114198908-199907

O/S 0.75

main13015-54100i2L..LH102,104,112,114198908-199907

O/S 1.00

13041BEARING, CONNECTING ROD

main13041-54024-01i2L..LH114..RHD198908-200501

MARK 1,REFER REPAIR MANUAL

main13041-54024-02i2L..LH114..RHD198908-200501

MARK 2,REFER REPAIR MANUAL

main13041-54024-03i2L..LH102,112..LHD..06S198908-200501

MARK 3,REFER REPAIR MANUAL

main13041-54041-01i5L..LH174..GL;3L..LH103,105,113,115,125198908-200501

MARK 1,REFER REPAIR MANUAL

sub13041-54042

main13041-54041-02i5L..LH172..RHD..SRF..4D..03S..STD..GEN198908-200501

MARK 2,REFER REPAIR MANUAL

sub13041-54042

main13041-54041-03i5L..LH162..4FC;5L..LH172..06S..GL198908-200501

MARK 3,REFER REPAIR MANUAL

sub13041-54042

main13041-75010-01i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 1:REFER TO REPAIR MANUAL,MARK 1

main13041-75010-02i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 2:REFER TO REPAIR MANUAL,MARK 2

main13041-75010-03i1RZ,2RZ..RZH10#,11#,125198908-199308

MARK 3:REFER TO REPAIR MANUAL,MARK 3

main13041-75020-04i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199701

MARK 4:REFER TO REPAIR MANUAL,MARK 4

sub13041-75021

main13041-75020-05i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199701

MARK 5:REFER TO REPAIR MANUAL,MARK 5

sub13041-75021

main13041-75020-06i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199701

MARK 6:REFER TO REPAIR MANUAL,MARK 6

sub13041-75021

main13041-75021-04i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199701-200501

MARK 4:REFER TO REPAIR MANUAL,MARK 4

sub13041-75022

main13041-75021-05i1RZ..RZH112..4D..06S199701-200501

MARK 5:REFER TO REPAIR MANUAL,MARK 5

sub13041-75022

main13041-75021-06i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S199701-200501

MARK 6:REFER TO REPAIR MANUAL,MARK 6

sub13041-75022

main13041-75022-04i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK4

main13041-75022-05i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK5

main13041-75022-06i1RZ,2RZE..RZH11#200501

REFER TO REPAIR MANUAL,MARK6

13101PISTON SUB-ASSY, W/PIN

main13101-05010i5LE..LH172200108-200109

STD,REFER REPAIR MANUAL

main13101-05010-01i5LE..LH172;5L..LH174..12S200109-200312

STD,MARK 1,REFER REPAIR MANUAL

main13101-05010-01i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

STD,MALAYSIA SPEC,MARK 1,REFER REPAIR MANUAL

main13101-05010-02i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

STD,MALAYSIA SPEC,MARK 2,REFER REPAIR MANUAL

main13101-05010-02i5LE..LH172;5L..LH174..12S200109-200312

STD,MARK 2,REFER REPAIR MANUAL

main13101-05010-03i5LE..LH172;5L..LH174..12S200109-200312

STD,MARK 3,REFER REPAIR MANUAL

main13101-05010-03i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200312

STD,MALAYSIA SPEC,MARK 3,REFER REPAIR MANUAL

main13101-54070-01i2L..LH102,104,112,114198908-199907

STD,MARK 1,REFER REPAIR MANUAL

main13101-54070-02i2L..LH102,104,112,114198908-199907

STD,MARK 2,REFER REPAIR MANUAL

main13101-54070-03i2L..LH102,104,112,114198908-199907

STD,MARK 3,REFER REPAIR MANUAL

main13101-54100-01i3L..LH103,105,113,115,125198908-199102

STD,MARK 1,REFER REPAIR MANUAL

sub13101-54101

main13101-54100-02i3L..LH103,105,113,115,125198908-199102

STD,MARK 2,REFER REPAIR MANUAL

sub13101-54101

main13101-54100-03i3L..LH103,105,113,115,125198908-199102

STD,MARK 3,REFER REPAIR MANUAL

sub13101-54101

main13101-54101-01i3L..LH103,105,113,115,125199102-200008

STD,MARK 1,REFER REPAIR MANUAL

main13101-54101-02i3L..LH103,105,113,115,125199102-200008

STD,MARK 2,REFER REPAIR MANUAL

main13101-54101-03i3L..LH103,105,113,115,125199102-200008

STD,MARK 3,REFER REPAIR MANUAL

main13101-54120-01i5L..LH174..10S,15S;5L..LH154,16#,172,176,184199907

STD,MARK 1,REFER REPAIR MANUAL

main13101-54120-01i5L..LH166,17#,184199808-199907

STD,MARK 1,(J):REFER R/M

main13101-54120-02i5L..LH166,17#,184199808-199907

STD,MARK 2,(J):REFER R/M

main13101-54120-02i5LE..LH172;5L..LH174..12S199907

STD,MARK 2,REFER REPAIR MANUAL

main13101-54120-03i5L..LH174..10S,15S;5L..LH154,16#,172,176,184199907

STD,MARK 3,REFER REPAIR MANUAL

main13101-54120-03i5L..LH166,17#,184199808-199907

STD,MARK 3,(J):REFER R/M

main13101-75010i1RZ#..RZH102,104,112,114198908-199704

STD

main13101-75020i2RZ#..RZH103,105,113,115,125198908-199508

STD

main13101-75030i1RZ..RZH102,104,112,114..LHD..SG..5F199012-199308

STD,CHINA SPEC(WITH OUT CKD,SKD)

main13101-75080i2RZ#..RZH103,105,113,115,125,135,15#199508-200508

STD

main13101-75090i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ..RZH102,104,114199704-200208

STD

main13103-54070i2L..LH102,104,112,114198908-199907

O/S 0.50

main13103-54100i3L..LH103,105,113,115,125198908-199102

O/S 0.50

sub13103-54101

main13103-54101i3L..LH103,105,113,115,125199102-200008

O/S 0.50

main13103-54120i5LE..LH172;5L..LH174..12S199808-199907

O/S 0.50

main13103-75010i1RZ..RZH114;1RZ..RZH102..RHD;1RZ..RZH104,112..4F;1RZ..RZH102..LHD..4F198908-199704

O/S 0.50

main13103-75020i2RZ#..RZH103,105,113,115,125198908-199508

O/S 0.50

main13103-75030i1RZ..RZH102,104,112,114..LHD..SG..5F199104-199308

O/S 0.50,CHINA SPEC(WITH OUT CKD,SKD)

main13103-75080i2RZ#..RZH103,105,113,115,125,135,15#199508-200508

0/S 0.50

main13103-75090i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ..RZH102,104,114199704-200208

O/S 0.50

main13104-54070i2L..LH102,104,112,114198908-199907

O/S 0.75

main13105-54070i2L..LH102,104,112,114198908-199907

O/S 1.00

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-28003i1RZ..RZH114..LHD;1RZ,2RZ#..RZH10#,112,113,115,125,135,153198908-200208

main90521-29003i2L..LH102,112..LHD..06S198908-200501

main90521-31001i5L..LH154,184;5L..LH172..HRF;5L..LH172..LHD..4D;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..5F..(ARL,GCC);5L..LH172,174..4D..(06S,15S)..STD..(GCC,GEN)198908-200501

13201ROD SUB-ASSY, CONNECTING

main13201-59095i2L..LH102,104,112,114198908-199803

sub13201-59096

main13201-59096i2L..LH102,104,112,114199803-199907

main13201-59105i3L..LH103,105,113,115,125198908-199803

sub13201-59106

main13201-59106i5L..LH174..GL;5L..LH172..RHD;3L,5L..LH103,105,113,115,125,166,176,184199803-200008

sub13201-59216

main13201-79165i1RZ,2RZ..RZH10#,11#,125198908-199102

sub13201-79166

main13201-79166i1RZ,2RZ..RZH10#,11#,125199102-199308

sub13201-79167

main13201-79167i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199308-200401

sub13201-79565

main13201-79565i1RZ,2RZ#..RZH10#,11#,125,135,15#200401

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73114i2L..LH102,104,112,114198908-199907

main90999-73115i3L,5L#..LH103,105,113,115,125,154,16#,17#,184198908-200008

main90999-73125i1RZ,2RZ..RZH10#,11#,125198908-199001

main90999-73129i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15199001-200208

13202BEARING SET, CONNECTING ROD

main13204-54024i2L..LH102,104,112,114198908-199907

U/S 0.25

main13204-54041i3L,5L#..LH103,105,113,115,125,154,16#,17#,184198908-199907

U/S 0.25

sub13204-54042

main13204-75010i1RZ,2RZ..RZH10#,11#,125198908-199308

U/S 0.25

main13204-75020i1RZ#,2RZ#..RZH10#,11#,125,135,153199308-199701

U/S 0.25

sub13204-75021

main13204-75021i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..STD..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15S199701-200411

U/S 0.25

sub13204-75022

main13204-75022i1RZ,2RZ#..RZH11#,125,135,15#200411

U/S 0.25

main13205-54024i2L..LH102,104,112,114198908-199907

U/S 0.50

main13205-54041i3L,5L..LH103,105,113,115,125,166,17#,184198908-199907

U/S 0.50

sub13205-54042

13265BOLT, CONNECTING ROD

main13265-54020i2L,3L..LH10#,11#,125198908-199803

sub13265-54021

main13265-54021i5L..LH162..4FC;5L..LH172..06S..GL199803-200501

main13265-75010i1RZ,2RZ..RZH10#,11#,125198908-199102

sub13265-75011

main13265-75011i1RZ,2RZ..RZH10#,11#,125199102-199308

sub13265-75030

main13265-75030i1RZ..RZH112..4D..06S199308-200208

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09007i1RZ,2RZ..RZH10#,11#,125198908-199308

main90179-09009i1RZ..RZH112..4D..06S199308-200208

main90179-10123i2L..LH102,112..LHD..06S198908-200501

13405FLYWHEEL SUB-ASSY

main13405-05070i5L..LH174..12S200204-200501

(L)

main13405-54012i2L..LH102,104,112,114198908-199508

main13405-54070i3L..LH103,105,113,115..GEN198908-199308

main13405-54080i5L..LH172..06S..GL199910-200501

(J)

main13405-54080i2L..LH112..RHD198908-200312

main13405-75030i1RZ,2RZ..RZH114,115..4F,5F;2RZE..RZH103,135,153..RHD..5F;1RZ#,2RZ..RZH10#,112,113..SRF..(4F,5F);2RZ#..RZH105,115,125..5F..STD..(ARL,CIS);2RZE..RZH113..4D..(03S,06S,198908-200208

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i5L..LH174..12S198908-200501

L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10207i1RZ,2RZ..RZH114,115..4F,5F;2RZE..RZH103,135,153..RHD..5F;1RZ#,2RZ..RZH10#,112,113..SRF..(4F,5F);2RZ#..RZH105,115,125..5F..STD..(ARL,CIS);2RZE..RZH113..4D..(03S,06S,198908-200312

main90105-12109i3L..LH103,113,115,125..5F;2L,3L,5L..LH102,105,112,174..LHD..(06S,10S,12S)198908-200501

main90105-12109i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200304-200312

(J)

main90105-T0048i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200304-200312

(L)

main90910-02116i1RZ,2RZ#..RZH10#,11#,125,135,15#..5F200312

13411CRANKSHAFT

main13401-05030i5L..LH172..RHD..SRF..4D..03S..STD..GEN200210-200301

MALAYSIA SPEC

sub13401-54100

main13401-05030i5LE..LH172;5L..LH174..12S;5L..LH172..RHD..SRF..4D..03S..STD..GEN200301-200312

(L)

sub13401-54100

main13401-05030i5LE..LH172;5L..LH174..12S200108-200301

sub13401-54100

main13401-54040i2L..LH102,104..03S,12S198908-200501

main13401-54060i3L..LH103,105,113,115,125198908-199608

sub13401-54061

main13401-54061i5L..LH174..GL;3L..LH103,105,113,115,125199608-200209

sub13401-54100

main13401-54100i5L..LH16#,176;5L..LH174..CIS200209-200501

main13411-75900i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

13453GEAR, FLYWHEEL RING

main13453-05010i5L..LH174..12S199910-200501

(L)

main13453-0W010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..5F199907-200208

TYPE B:REFER ILLUST.

main13453-0W010i1RZ,2RZ..RZH114,115;2RZE..RZH103,135,153..RHD..5F;1RZ#,2RZ..RZH10#,112,113..SRF..5F;2RZ#..RZH105,115,125..5F..STD..(ARL,CIS);2RZE..RZH113..4D..(03S,06S,09S)..5F..(A199501

TYPE B:REFER TO ILLUSTRATION

main13453-20010i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#..5F199907-200208

TYPE A:REFER ILLUST.

main13453-20010i1RZ,2RZ..RZH114,115..4F,5F;2RZE..RZH103,135,153..RHD..5F;1RZ#,2RZ..RZH10#,112,113..SRF..(4F,5F);2RZ#..RZH105,115,125..5F..STD..(ARL,CIS);2RZE..RZH113..4D..(03S,06S,198908

TYPE A:REFER TO ILLUSTRATION

main13453-54010i5L..LH162..5F;5L..LH172..HRF;5L..LH172..LHD..4D;5L..LH172..5D..GEN;5L..LH172..03S..GL;5L..LH172..4D..06S..STD;5L..LH172..5F..(ARL,GCC);2L,5L..LH112,174..4D..(03S,06198908-200312

main13453-54010i2L,3L,5L..LH10#,11#,125,16#,17#,184..5F199907-200501

(J)

13471PULLEY, CRANKSHAFT

main13408-54070i2L,3L..LH10#,11#,125198908-199505

sub13408-54080

main13408-54080i2L,3L..LH10#,11#,125199505-199605

sub13408-54090

main13408-54090i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199605-200501

main13408-75010i1RZ,2RZ..RZH10#,11#,125198908-199308

sub13408-75020

main13408-75020i1RZ,2RZ#..RZH10#,11#,125199308-199502

sub13408-75030

main13408-75030i1RZ..RZH112..4D..06S199502-200208

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i1RZ..RZH112..4D..06S199303-200208

main95161-20519i1RZ,2RZ..RZH10#,11#,125198908-199303

main95161-20622i2L,3L..LH10#,11#,125198908-199205

sub95161-30622

main95161-30622i5L..LH174..12S199205-200501

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16033i1RZ,2RZ..RZH10#,11#,125198908-199003

sub90105-16041

main90105-16041i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199003-200208

main90119-14005i2L,3L..LH10#,11#,125198908-198910

main90119-14031i2L,3L..LH10#,11#,125198910-199310

sub90901-19028

main90901-19028i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199310-200501

13477PULLEY, CRANKSHAFT, NO.2

main88451-95J00i1RZ..RZH112..LHD;1RZ..RZH112..RHD..SP;1RZ,2RZ#..RZH102,103,113..GL,STD198908-200508

W(SINGLE AIR CONDITIONER)

main88451-95J01i2RZE..RZH153;1RZ#,2RZ#..RZH10#,113,114,115,125..SG..(03S,05S,09S,12S,14S,15S)198908-199907

W(DUAL AIR CONDITIONER)

main88451-95J01i1RZ..RZH112..SG..03S200211

main88451-95J03i5L..LH174..GL;3L..LH113,125..STD;5L..LH172..RHD..STD;2L,3L,5L..LH10#,112,114,115,166,176198908-200008

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-75010i2RZ..RZH115;2RZE..RZH105,115..STD..CIS;1RZ#,2RZ..RZH10#,112,113..SRF;2RZE..RZH113..4D..(03S,06S,09S)..(ARL,GEN);1RZ,2RZ#..RZH103,114,125,135,153..03S,06S,12S,14S,15198908-200208

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i1RZ..RZH112..5D;1RZ..RZH112..03S;1RZ,2RZ#..RZH10#,113,114,115,125,135,15#199303-200208

main95161-20519i1RZ,2RZ..RZH10#,11#,125198908-199303

main95161-20622i2L,3L..LH10#,11#,125198908-199205

sub95161-30622

main95161-30622i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184199205-200501

13521PPULLEY, CRANKSHAFT TIMING

main13521-54030i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200501

13566AGUIDE, TIMING BELT

main13566-05010i5L..LH174..12S200301-200501

(L)

main13566-54040i5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184198908-200301

main13566-54040i5L..LH174..CIS;2L,5L..LH10#,16#,176200301-200501

(J)

4503

91611B0816

main91611-B0816

27 parts on this diagram · 2 diagrams in section
