HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

1605

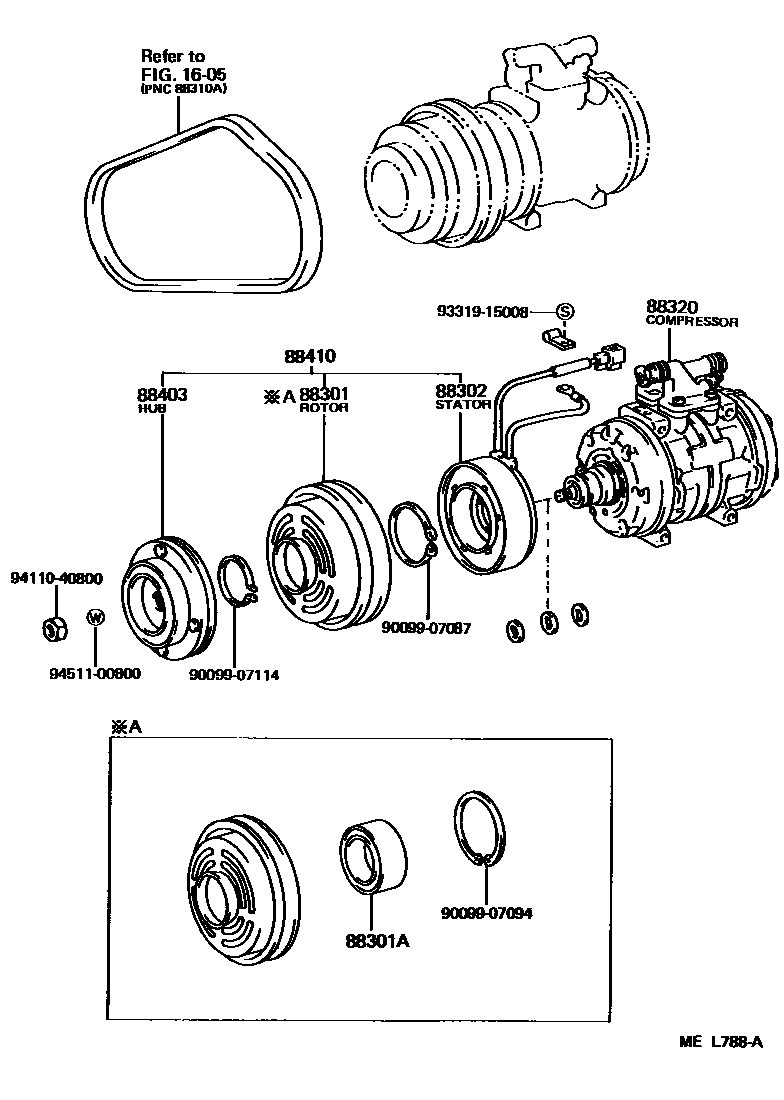

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLH51,61..GEN;YH61,63..V..(4H,4HC)..GEN;LH71,YH5#,63..MTM..(03S,06S,15S)..(ARL,GEN)198708-198908

main88412-26020iYH51,61..COM198708-198908

88301ABEARING (FOR MAGNET CLUTCH)

main90099-10133iYH53..4H198708-198908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH71;LH51,61..GEN198708-198908

main88411-26030iYH53,73..05S,15S198708-198908

main88411-30370iYH51,61..COM198708-198901

sub88411-26030

main88411-30380iYH63..4HC..GEN;YH5#,61,63..V..MTM..STD..(ARL,GEN)198708-198908

88320COMPRESSOR ASSY, COOLER

main88320-26121iLH71;LH51,61..GEN198708-198908

main88320-26142iYH5#,61,73..05S,12S,15S198708-198908

main88320-26162iYH5#,61,63..V..STD..(ARL,GEN)198708-198908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iLH61..LHD198708-198908

main88403-14030iLH71198708-198908

sub88403-12030

main88403-30280iYH51,61..COM198708-198908

88410CLUTCH ASSY, MAGNET

main88410-22080iLH71;LH51,61..GEN198708-198908

sub88410-60140

main88410-26040iYH5#,61,73..05S,12S,15S198708-198901

sub88410-26070

main88410-26070iYH5#,61,73..05S,12S,15S198901-198908

main88410-30380iYH5#,61,63..V..STD..(ARL,GEN)198708-198908

9009907087

main90099-07087

9009907094

main90099-07094

9009907114

main90099-07114

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

13 parts on this diagram · 4 diagrams in section
