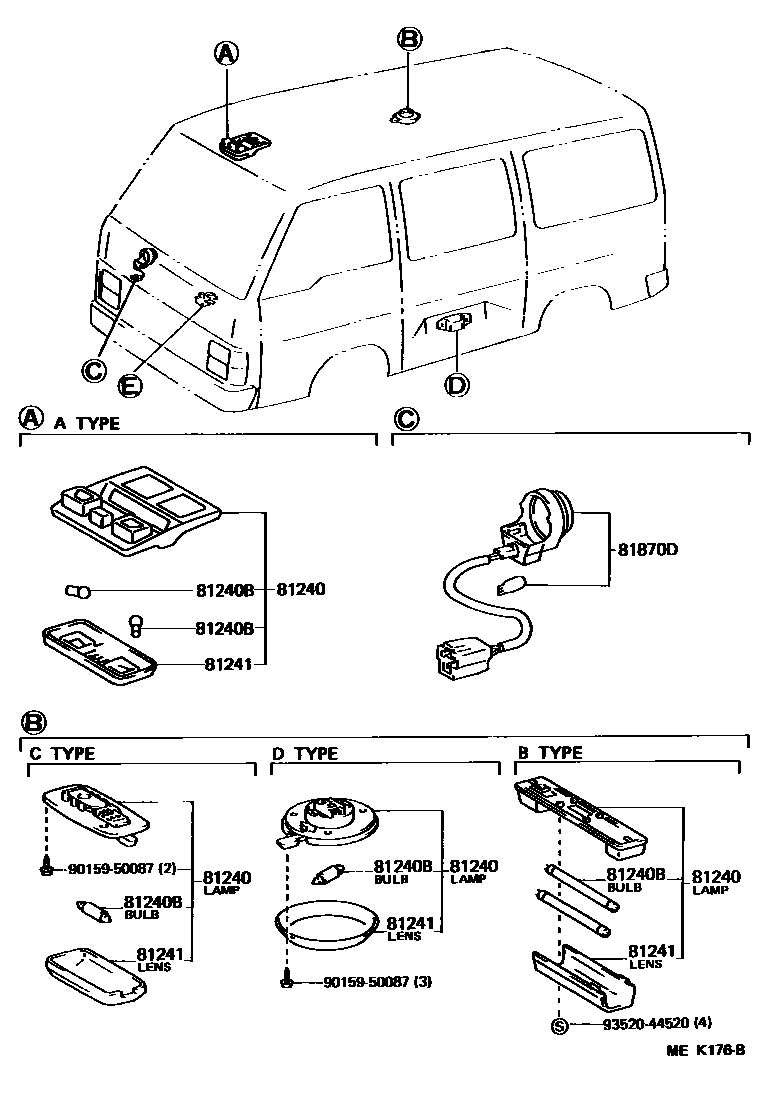

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-95704iYH63..03S199206

main81240-95704-03iLH51,61,YH5#,6#..03S,06S198708-199206

GRAY,TRIM4#

sub81240-95704

main81240-95705iYH53..SA198808-199206

main81240-95705-A0iYH53199206

IVORY,TRIM1#

sub81240-95705

main81240-95A18iLH51,61,YH51,61,63..COM198708-198908

main81240-95J05-03iYH53..4FC198708-198908

HIGH GRADE PACKAGE,GRAY,TRIM8#

main81240-95J06-03iYH53..05S198708-198908

GRAY,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main90981-11004iYH53,63198708-199708

12V 10W

main90981-11033iYH53..05S198708-198908

100V 6W(MARK FL-6W)

main90981-12005iYH53..4FC198708-198908

12V 8W,HIGH GRADE PACKAGE

81241LENS, ROOM LAMP, NO.1

main81241-95013iYH63..03S198708-199206

main81241-95705iLH71,YH73198708-199708

main81241-95J02iYH53..05S198708-198908

main81241-95J05-03iYH53..4FC198708-198908

HIGH GRADE PACKAGE,GRAY,TRIM8#

81870DLAMP ASSY, KEY CYLINDER

main81870-95J00iYH53..05S198708-198908

9015950087

main90159-50087

9352044520

main93520-44520

6 parts on this diagram · 2 diagrams in section
