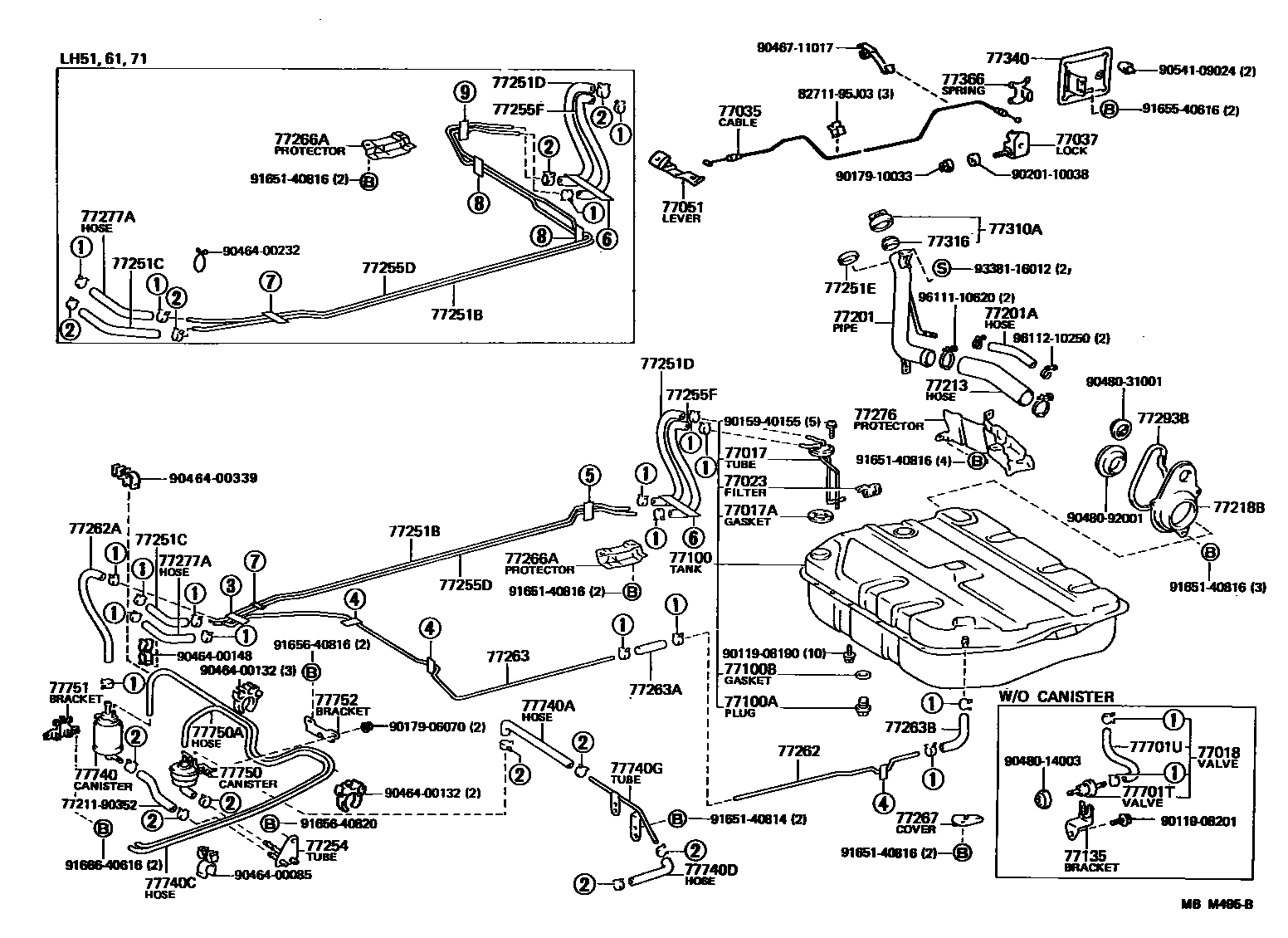

FUEL TANK & TUBE

0001 1 0002 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-26010iYH5#,61,63,73..ARL,GEN198708-198908

main77017-26020iLH51,61,71198708-198908

main77017-26070iYH53,63199705

77017AGASKET, FUEL TANK VENT

main77169-14020iYH53,63199705

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-26080iYH53,63199705

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYH5#,6#,73198708-199111

main77023-32010iLH51,61,71198708-198908

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-95J01iYH53..GL;LH51..06S;YH51..RHD..V4D198708-199610

main77035-95J02iLH61..RHD..SRF..03S..GEN198708-198908

HIGH GRADE PACKAGE

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-14010iYH53..GL;LH51..06S;YH51..RHD..V4D198708-199206

main77037-90K00iLH61,YH61..V4D..06S198708-199206

77051LEVER SUB-ASSY, FUEL LID OPEN

main77050-95J00iYH53..GL198908-199206

main77050-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

main77050-95J00-16iLH61..RHD..SRF..03S..GEN198708-198908

BROWN,TRIM4#

main77050-95J00-B0iYH53..GL199206-199610

GRAY,TRIM1#

77100TANK ASSY, FUEL

main77100-26902iYH63..V;YH5#,60,61,73..03S,05S,06S,12S,15S198708-199206

main77100-26903iLH51,61,71198708-198908

77100APLUG(FOR FUEL TANK)

main90105-12116iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

77100BGASKET(FOR FUEL TANK)

main90430-12245iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

77135BRACKET, CHECK VALVE

main77135-26010iYH53,63199705

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-26040iYH53,63199705

main77201-26080iYH53,63,73..ARL198708-198908

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-24012iLH51,61,71,YH5#,6#,73198708-199111

L=340

77213HOSE, FUEL TANK SUB INLET

main77213-26040iYH63..VSP;YH53,63..09S,15S199111-199705

main77213-26070iYH53,63,73..ARL198708-198908

77218BPLATE, FUEL INLET PIPE LOWER SHIELD

main77218-95J00iYH53,63..V4D199610

77251BTUBE, FUEL MAIN

main77251-26181iLH51198708-198908

main77251-26191iLH61198708-198908

main77251-26201iLH71198708-198908

main77251-26430iYH5#198808-199705

main77251-26450iYH63..15S199111-199206

main77251-26470iYH73198708-198908

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main95333-06040iYH5#,6#,73198708-199111

L=400

main95333-08030iLH51,61,71198708-198908

L=300

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-06030iYH5#,6#,73198708-199111

L=300

sub95338-06030

main95333-08030iLH51,61,71198708-198908

L=300

77251ESHIELD, FUEL TANK INLET PIPE

main77251-10010iYH53,63..V4D199610

77254TUBE, FUEL EMISSION, NO.1

main77263-26060iYH53,63,73..ARL198708-198908

GULF SPEC

main77263-26070iYH53,63199303

77255DTUBE, FUEL RETURN

main77255-26041iLH51198708-198908

main77255-26051iLH61198708-198908

main77255-26061iLH71198708-198908

main77255-26150iYH53198708-198808

GULF SPEC

main77255-26160iYH63..15S199111-199206

main77255-26190iYH73198708-198908

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-06030iLH51,61,71198708-198908

L=300

sub95338-06030

77262TUBE, FUEL EMISSION, NO.2

main77262-26140iYH51..LHD198708-198908

GULF SPEC

main77262-26150iYH61..LHD..4H198708-198908

GULF SPEC

main77262-26160iYH73198708-198908

77262AHOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)

main95333-06060iYH53,63,73..ARL198708-198908

GULF SPEC

77263TUBE, FUEL TANK TO CANISTER, NO.3

main77263-26030iYH53,63,73..ARL198708-198908

GULF SPEC

77263AHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE)

main95333-06020iYH53,63,73..ARL198708-198908

GULF SPEC

sub95337-06020

77263BHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE)

main90923-01274iYH53,63,73..ARL198708-198908

GULF SPEC

77266APROTECTOR, FUEL TUBE, NO.1

main77266-26010iLH51,61,71,YH5#,6#,73198708-199111

77267COVER, FUEL EVAPORATIVE TUBE

main77267-26020iYH63..VSP;YH53,63..09S,15S199111-199705

77276PROTECTOR, FUEL HOSE

main77276-26050iLH51,61,71,YH5#,6#,73198708-199111

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-12071iLH51,61,71198708-198908

*H,L=520

main95333-06040iYH5#,6#,73198708-199303

L=400

77293BPACKING, FUEL INLET PIPE LOWER SHIELD PLATE

main77293-95J00iYH53;YH63..VSP199203-199610

77310ACAP ASSY, FUEL TANK

main77310-12100iYH53,63199705

main77310-35061iLH51,61,71198708-198908

77316GASKET, FUEL TANK CAP

main77316-12050iYH53,63199705

77340DOOR ASSY, FUEL INLET BOX

main77340-95J00iYH53,63..STD199206

main77340-95J01iYH51..RHD..V4D;LH51,61,YH61..V4D..06S198708-199206

W(FUEL LID OPENER)

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-95J00iYH53..GL;YH51..RHD..V4D;LH51,61,YH61..V4D..06S198708-199610

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iYH53,63199705

77701UHOSE, FUEL (FOR CHECK VALVE)

main90923-01274iYH53,63..GEN,SA;LH51,61,71,YH51,60,61198708-199111

77740CANISTER ASSY, CHARCOAL

main77704-60050iYH53,63,73..ARL198708-198908

GULF SPEC

main77740-26050iYH61..RHD..15S;YH51..RHD..(03S,12S)198708-198908

SINGAPORE SPEC

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main23829-72010iYH53,63199303

main90445-14096iYH53,63,73..ARL198708-198908

L=490,GULF SPEC

77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)

main90445-08224iYH53,63,73..ARL198708-198908

L=1300,SINGAPORE SPEC

sub90999-92006

77740DHOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)

main90445-14095iYH5#,6#,73198708-199610

L=350

77740GTUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main23818-72010iYH5#,6#,73198708-199610

77750CANISTER ASSY, CHARCOAL

main77740-26050iYH53,63,73..ARL198708-198908

GULF SPEC

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main90445-08242iYH53,63,73..ARL198708-198908

L=1300(*H,L=1240),GULF SPEC

sub90999-92006

77751BRACKET, CHARCOAL CANISTER BASE

main77751-32010iYH53,63,73..ARL198708-198908

GULF SPEC

77752BRACKET, CHARCOAL CANISTER SUPPORT

main77752-26010iYH53,63,73..ARL198708-198908

SINGAPORE SPEC

7721190352PIPE, FUEL TANK INLET

main77211-90352

8271195J03WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-95J03

9011908190

main90119-08190

9011908201

main90119-08201

9015940155

main90159-40155

9017906070

main90179-06070

9017910033

main90179-10033

9020110038

main90201-10038

9046400085

main90464-00085

9046400132

main90464-00132

9046400148

main90464-00148

9046400232

main90464-00232

9046400339

main90464-00339

9046711017

main90467-11017

9048014003

main90480-14003

9048031001

main90480-31001

9048092001

main90480-92001

9054109024

main90541-09024

9165140814

main91651-40814

9165140816

main91651-40816

9165540616

main91655-40616

9165640816

main91656-40816

9165640820

main91656-40820

9166640616

main91666-40616

9338116012

main93381-16012

9611110620

main96111-10620

9611210250

main96112-10250

74 parts on this diagram · 2 diagrams in section
