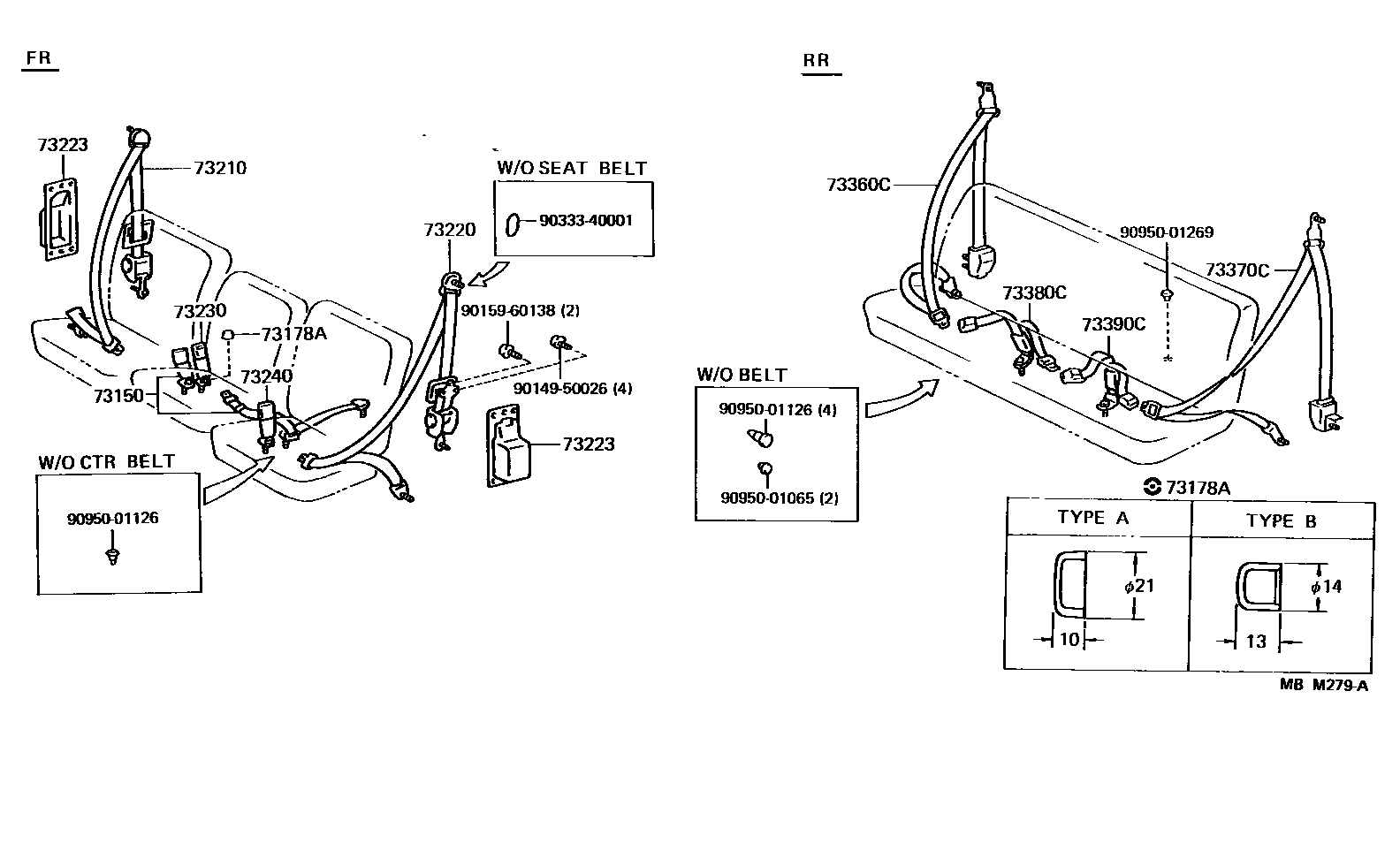

SEAT BELT

0001 1 0002 1

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-95J09-06iYH51..RHD..12S;YH61..RHD..(03S,15S);LH51,61,YH51..RHD..V4D..03S..GEN198708-198908

THAILAND SPEC,BROWN,TRIM4#

main73150-95J10iYH53,63..STD199206-199608

main73150-95J10-06iYH53,60,63..SA;YH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198712-198908

W(3P ELRX2 & 2P NRX1),BROWN,TRIM4#

main73150-95J10-06iYH53,60,63..SA;YH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198712-199206

BROWN,TRIM4#

main73150-95J10-B0iYH53,63199206-199608

GRAY,TRIM1#

main73150-95J11-06iLH51..LHD..03S198708-198908

IVORY COAST SPEC,BROWN,TRIM4#

main73150-95J11-06iYH51,61..LHD..4H198708-198908

*GUS,BROWN,TRIM4#

main73150-95J13-06iLH61,YH61..RHD..MTM..15S198708-198908

CKD SPEC,BROWN,TRIM4#

main73150-95J16-06iYH51..RHD..06S198708-198908

BROWN,TRIM4#

main73150-95J16-06iYH63..ARL,GEN;LH51,61,71,YH53,73..STD..ARL198708-198908

CKD SPEC,BROWN,TRIM4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-95J00iYH61..4HC;YH51..RHD..12S;LH51,61,YH51,61..RHD..V4D..03S..GEN198708-199608

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-95J16-06iLH61..RHD..15S198708-198908

THAILAND SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH51..06S;YH61..LHD..4H;LH51..LHD..03S;YH51..LHD..(03S,12S)198708-198908

BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH51..06S;YH61..LHD..4H;LH51..LHD..03S;YH51..LHD..(03S,12S)198708-198908

W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH61..RHD..4H..15S198708-198908

THAILAND SPEC OR CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH61..RHD..4H..15S198708-198908

CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J20iYH53,63..STD199206-199608

main73210-95J20-06iYH51,61..LHD..4H198708-198908

*GUS,BROWN,TRIM4#

sub73210-95J20

main73210-95J20-06iLH51..LHD..03S198708-198908

IVORY COAST SPEC,BROWN,TRIM4#

sub73210-95J20

main73210-95J20-06iLH51,61,YH51,61..RHD..GEN198712-198908

W(3P ELRX2 & 2P NRX1),BROWN,TRIM4#

sub73210-95J20

main73210-95J20-06iYH53,60,63..SA198808-199206

BROWN,TRIM4#

sub73210-95J20

main73210-95J20-B0iYH53,63..STD199206-199608

GRAY,TRIM1#

sub73210-95J20

main73210-95J22-04iYH53..05S198708-198908

BLUE,TRIM8#

main73210-95J22-06iYH63..ARL,GEN;LH51,61,71,YH53,73..STD..ARL198708-198908

BROWN,TRIM4#

main73210-95J22-06iYH51..RHD..06S198708-198908

CKD SPEC,BROWN,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-95J16-06iYH51,61..06S;LH51..LHD..VSP;LH51..RHD..12S;YH51..V5D..03S;YH51..LHD..12S;LH51,61..V4D..VSG;YH61..LHD..4H..(03S,15S)198708-198908

BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH51,61..06S;LH51..LHD..VSP;LH51..RHD..12S;YH51..V5D..03S;YH51..LHD..12S;LH51,61..V4D..VSG;YH61..LHD..4H..(03S,15S)198708-198908

W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH61..RHD..4H..15S198708-198908

THAILAND SPEC OR CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH61..RHD..4H..15S198708-198908

CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J16-06iYH61..RHD..4H..15S198708-198908

THAILAND SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73210-95J16

main73210-95J20iYH53,63199206-199608

main73210-95J20-06iLH51..LHD..03S198708-198908

IVORY COAST SPEC,BROWN,TRIM4#

sub73210-95J20

main73210-95J20-06iLH51,61,YH51,61..RHD..GEN198712-198908

W(3P ELRX2 & 2P NRX1),BROWN,TRIM4#

sub73210-95J20

main73210-95J20-06iYH51,61..LHD..4H198708-198908

*GUS,BROWN,TRIM4#

sub73210-95J20

main73210-95J20-06iYH53,6#..MTM198808-199206

BROWN,TRIM4#

sub73210-95J20

main73210-95J20-B0iYH53,63199206-199608

GRAY,TRIM1#

sub73210-95J20

main73210-95J22-04iYH53..05S198708-198908

BLUE,TRIM8#

main73210-95J22-06iYH63..ARL,GEN;LH51,61,71,YH53,73..STD..ARL198708-198908

CKD SPEC,BROWN,TRIM4#

main73210-95J22-06iYH51..RHD..06S198708-198908

BROWN,TRIM4#

73223COVER, SEAT BELT RETRACTOR

main73223-95J00iYH61..5H;LH51,61..ARL;YH51..RHD..V5D;YH61..V4D..06S;LH61..LHD..03S;LH51,61..06S,12S;LH71,YH53,60,63,73198708-199608

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-95J09iYH51..RHD..06S198708-198709

CKD SPEC OR W(3P ELRX2)

main73230-95J09iYH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198708-198709

W(3P ELRX2)

main73230-95J09iYH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198708-198709

THAILAND SPEC OR CKD SPEC OR W(3P ELRX2)

main73230-95J09iYH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198708-198709

THAILAND SPEC OR W(3P ELRX2)

main73230-95J09-06iLH61..RHD..15S198709-198908

CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73230-95J09

main73230-95J09-06iYH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198709-198908

W(3P ELRX2),BROWN,TRIM4#

sub73230-95J09

main73230-95J09-06iYH51..RHD..06S198709-198712

BROWN,TRIM4#

sub73230-95J09

main73230-95J09-06iYH61..RHD..4H..15S198709-198908

THAILAND SPEC OR CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73230-95J09

main73230-95J09-06iYH61..RHD..4H..15S198709-198908

THAILAND SPEC OR W(3P ELRX2),BROWN,TRIM4#

sub73230-95J09

main73230-95J10iYH53,63..STD199206-199608

main73230-95J10-06iYH53,6#..MTM198808-199206

BROWN,TRIM4#

main73230-95J10-06iLH51,61,YH51,61..RHD..GEN198712-198908

W(3P ELRX2 & 2P NRX1),BROWN,TRIM4#

main73230-95J10-B0iYH53,63..STD199206-199608

GRAY,TRIM1#

main73230-95J11-06iLH51..LHD..03S;LH61..LHD..15S198708-198908

IVORY COAST SPEC,BROWN,TRIM4#

main73230-95J11-06iYH51,61..LHD..4H198708-198908

*GUS,BROWN,TRIM4#

main73230-95J13-06iLH51..LHD..03S;YH51,61..LHD..4H198708-198908

BROWN,TRIM4#

main73230-95J13-06iLH51..LHD..12S;LH61,YH61..LHD..5H198708-198908

W(3P ELRX2),BROWN,TRIM4#

main73230-95J14-04iYH53..05S198708-198908

BLUE,TRIM8#

main73230-95J14-06iYH51..RHD..06S198708-198908

CKD SPEC,BROWN,TRIM4#

main73230-95J14-06iYH63..ARL,GEN;LH51,61,71,YH53,73..STD..ARL198708-198908

BROWN,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-95J13-06iYH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198708-198712

BROWN,TRIM4#

main73240-95J13-06iYH51..RHD..V5D;LH51,61,YH61..RHD..(06S,12S)198708-198908

W(3P ELRX2),BROWN,TRIM4#

main73240-95J13-06iYH61..RHD..4H..15S198708-198908

THAILAND SPEC OR CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

main73240-95J13-06iYH61..RHD..4H..15S198708-198908

CKD SPEC OR W(3P ELRX2),BROWN,TRIM4#

main73240-95J13-06iYH61..RHD..4H..15S198708-198908

THAILAND SPEC OR W(3P ELRX2),BROWN,TRIM4#

main73240-95J15iYH53,63..STD199206-199608

main73240-95J15-06iLH51,61,YH51,61..RHD..GEN198712-198908

W(3P ELRX2 & 2P NRX1),BROWN,TRIM4#

main73240-95J15-06iYH53,6#..MTM198808-199206

BROWN,TRIM4#

main73240-95J15-B0iYH53,63..STD199206-199608

GRAY,TRIM1#

main73240-95J16-06iLH51..LHD..03S198708-198908

IVORY COAST SPEC,BROWN,TRIM4#

sub73240-95J16

main73240-95J19-06iYH51,61..LHD..4H198708-198908

*GUS,BROWN,TRIM4#

main73240-95J20-06iLH51..LHD..03S;YH51,61..LHD..4H198708-198908

W(3P ELRX2),BROWN,TRIM4#

main73240-95J20-06iLH51..LHD..03S;YH51,61..LHD..4H198708-198908

BROWN,TRIM4#

main73240-95J21-06iYH51..RHD..06S198708-198908

BROWN,TRIM4#

main73240-95J21-06iYH63..ARL,GEN;LH51,61,71,YH53,73..STD..ARL198708-198908

CKD SPEC,BROWN,TRIM4#

main73240-95J23-04iYH53..05S198708-198908

BLUE,TRIM8#

73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH

main73360-95J06-04iYH53..05S198708-198908

BLUE,TRIM8#

main73360-95J07-06iYH63..06S198708-198908

CKD SPEC,BROWN,TRIM4#

main73360-95J07-06iYH63..06S198708-198908

BROWN,TRIM4#

73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH

main73360-95J07-06iYH51..RHD..06S198708-198908

BROWN,TRIM4#

main73360-95J07-06iYH63..06S198708-198908

CKD SPEC,BROWN,TRIM4#

main73370-95J01-04iYH53..05S198708-198908

BLUE,TRIM8#

73380CBELT ASSY, REAR NO.1 SEAT, INNER RH

main73380-95J04-04iYH53..05S198708-198908

BLUE,TRIM8#

main73380-95J04-06iYH51..RHD..06S198708-198908

BROWN,TRIM4#

73390CBELT ASSY, REAR NO.1 SEAT, INNER LH

main73390-95J01-04iYH53..05S198708-198908

BLUE,TRIM8#

main73390-95J01-06iYH51..RHD..06S198708-198908

BROWN,TRIM4#

9014950026

main90149-50026

9015960138

main90159-60138

9033340001

main90333-40001

9095001065

main90950-01065

9095001126

main90950-01126

9095001269

main90950-01269

17 parts on this diagram · 2 diagrams in section
