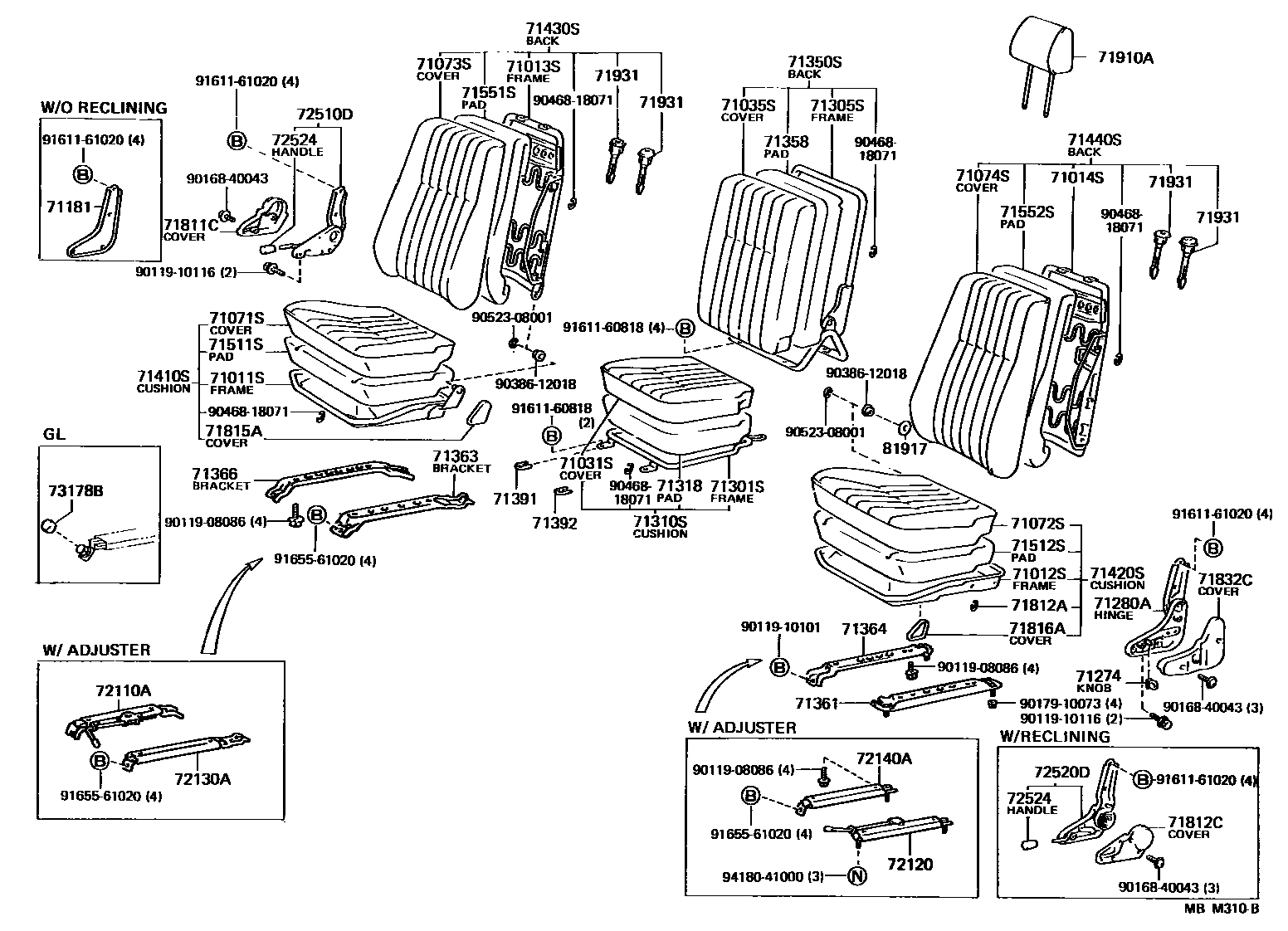

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-95J01iYH53,63198708-199206

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-95J04iYH53..GL..SA198808-199610

main71012-95J05iYH53..05S;LH51,61,YH51,61..LHD198708-198908

main71012-95J07iYH63..06S..ARL198708-198908

main71012-95J08-03iYH53,63..STD199206

GRAY,TRIM1#

main71012-95J08-06iYH63..GEN,SA;YH63..03S..ARL;LH51,61,71,YH5#,60,61,73..RHD..STD198708-199206

BROWN,TRIM4#

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71150-95J01iLH51,61,YH51,61,63..RHD..GEN198708-198908

W(HEADREST)

main71150-95J01iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199610

main71150-95J02iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199206

main71150-95J03iLH51,61,YH51,61..LHD198708-198908

main71150-95J04iYH61..HRF;YH61..LHD..V;YH51..LHD..06S198708-198908

JORDAN SPEC OR GULF SPEC OR W(HEADREST)

main71150-95J04iYH51..LHD..(03S,12S);YH61..LHD..SRF..4H..15S198708-198908

W(HEADREST)

main71150-95J04iYH51..LHD..(03S,12S);YH61..LHD..SRF..4H..15S198708-198908

JORDAN SPEC OR W(HEADREST)

main71150-95J04iYH51..LHD..(03S,12S);YH61..LHD..SRF..4H..15S198708-198908

GULF SPEC OR W(HEADREST)

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71160-95J01iYH53..GL..SA;YH63..06S..ARL198708-199610

main71160-95J02iYH51..LHD..(03S,12S);YH61..LHD..SRF..4H..15S198708-198908

GULF SPEC OR W(HEADREST)

main71160-95J02iYH51..LHD..(03S,12S);YH61..LHD..SRF..4H..15S198708-198908

JORDAN SPEC OR GULF SPEC W(HEADREST)

main71160-95J02iYH53..05S198708-198908

W(HEADREST)

main71160-95J02iYH53..05S198708-198908

JORDAN SPEC OR W(HEADREST)

main71160-95J03iYH53,63..STD198708-199206

main71160-95J05iLH51,61,71,YH53,63,73..(03S,15S)..ARL198708-198908

W(HEADREST)

main71160-95J06iLH51,61,YH51,61..LHD198708-198908

71031SCOVER SUB-ASSY, CENTER SEAT CUSHION

main71031-95J19-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

BROWN,TRIM4#

main71031-95J19-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

W(FABRIC SEAT),BROWN,TRIM4#

main71097-95J02-03iYH53,63199206

GRAY,TRIM1#

main71097-95J02-06iYH63..V5D;YH63..GEN,SA;YH63..4HC..03S;LH51,61,71,YH5#,60,61,73..RHD..(4H,4HC,5H)198708-199206

BROWN,TRIM4#

main71097-95J03-06iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

main71097-95J04-06iYH51,61..LHD..4H198708-198908

GULF SPEC,BROWN,TRIM4#

71035SCOVER, FRONT SEATBACK, CENTER

main71035-95J23-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

BROWN,TRIM4#

main71035-95J23-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

W(FABRIC SEAT),BROWN,TRIM4#

main71095-95J03-03iYH53,63199206

GRAY,TRIM1#

main71095-95J03-06iYH63..V5D;YH63..GEN,SA;YH63..4HC..03S;LH51,61,71,YH5#,60,61,73..4H,4HC,5H198708-199206

BROWN,TRIM4#

main71095-95J04-06iYH51,61..LHD..4H198708-198908

GULF SPEC,BROWN,TRIM4#

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-95J39-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

W(FABRIC SEAT),BROWN,TRIM4#

main71071-95J39-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

BROWN,TRIM4#

main71071-95J64-04iYH53..05S198708-198908

BLUE,TRIM8#

main71071-95J67-03iYH53,63199206

GRAY,TRIM1#

main71071-95J67-06iYH63..V5D;YH63..GEN,SA;YH63..4HC..03S;LH51,61,71,YH5#,60,61,73..RHD..(4H,4HC,5H)198708-199206

BROWN,TRIM4#

main71071-95J68-06iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

main71071-95J70-06iYH51,61..LHD..4H198708-198908

GULF SPEC,BROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-95J47-16iYH63..V4D..5H..03S198708-198908

W(FABRIC SEAT),BROWN,TRIM4#

main71072-95J47-16iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

BROWN,TRIM4#

main71072-95J60-16iYH63..06S..ARL198708-198908

BROWN,TRIM4#

main71072-95J69-04iYH53..05S198708-198908

BLUE,TRIM8#

main71072-95J72-03iYH53,63..STD199206

GRAY,TRIM1#

main71072-95J72-06iYH63..V5D;YH63..GEN,SA;YH63..4HC..03S;LH51,61,71,YH5#,60,61,73..RHD..STD198708-199206

BROWN,TRIM4#

main71072-95J75-06iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

main71072-95J76-06iYH51,61..LHD..4H198708-198908

GULF SPEC,BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-95J64-16iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

BROWN,TRIM4#

sub71073-95J63

main71073-95J64-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

W(FABRIC SEAT),BROWN,TRIM4#

sub71073-95J63

main71073-95N09-04iYH53..05S198708-198908

BLUE,TRIM8#

main71073-95N17-03iYH53,63..STD199206

GRAY,TRIM1#

main71073-95N17-06iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199206

BROWN,TRIM4#

main71073-95N18-06iLH51,61,YH51,61,63..RHD..GEN198708-198908

W(HEADREST),BROWN,TRIM4#

main71073-95N18-06iYH63..V5D;YH53..5H..GL;YH53..4H,4HC;YH63..4HC..03S;LH51,61,71,YH73..ARL198708-199206

BROWN,TRIM4#

main71073-95N18-B0iYH53..GL199206-199610

GRAY,TRIM1#

main71073-95N19-06iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

main71073-95N20-06iYH61..HRF;LH61,YH61..LHD..V;LH51,YH51..LHD..VSG;LH51,YH61..LHD..COM..5H198708-198908

W(HEADREST),BROWN,TRIM4#

sub71073-95N19

main71073-95N20-06iYH61..HRF;LH61,YH61..LHD..V;LH51,YH51..LHD..VSG;LH51,YH61..LHD..COM..5H198708-198908

JORDAN SPEC OR W(HEADREST),BROWN,TRIM4#

sub71073-95N19

main71073-95N21-06iYH51,61..LHD..4H198708-198908

GULF SPEC,BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-95J84-16iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

W(FABRIC SEAT),BROWN,TRIM4#

sub71074-95J82

main71074-95J84-16iYH63..V4D..5H..03S198708-198908

BROWN,TRIM4#

sub71074-95J82

main71074-95J85-16iYH63..06S..ARL198708-198908

BROWN,TRIM4#

sub71074-95J83

main71074-95N23-04iYH53..05S198708-198908

BLUE,TRIM8#

main71074-95N31-03iYH53,63..STD199206

GRAY,TRIM1#

main71074-95N31-06iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199206

BROWN,TRIM4#

main71074-95N33-06iLH51,61,YH51,61,63..RHD..GEN198708-198908

BROWN,TRIM4#

main71074-95N33-06iLH51,61,YH51,61,63..RHD..GEN198708-198908

W(HEADREST),BROWN,TRIM4#

main71074-95N34-06iYH53..GL..SA198808-199206

BROWN,TRIM4#

main71074-95N34-B0iYH53..GL199206-199610

GRAY,TRIM1#

main71074-95N35-06iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

main71074-95N36-06iLH51..LHD..VSP;LH61..LHD..15S;YH51..LHD..(03S,12S);YH61..LHD..SRF..4H..15S198708-198908

JORDAN SPEC OR W(HEADREST),BROWN,TRIM4#

sub71074-95N35

main71074-95N36-06iYH61..HRF;LH61,YH61..LHD..V;LH51,YH51..LHD..VSG;LH51,YH61..LHD..COM..5H198708-198908

W(HEADREST),BROWN,TRIM4#

sub71074-95N35

main71074-95N37-06iYH51,61..LHD..4H198708-198908

GULF SPEC,BROWN,TRIM4#

71181SUPPORT, FRONT SEATBACK, RH

main71181-95J00-06iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

sub71181-95J00

71274KNOB, FRONT SEAT HINGE

main71274-95J00-03iYH53,63..STD199206

GRAY,TRIM1#

sub71274-95J00

main71274-95J00-16iYH63..GEN,SA;YH63..03S..ARL;LH51,61,71,YH5#,60,61,73..RHD..STD198708-199206

BROWN,TRIM4#

sub71274-95J00

71280AHINGE ASSY, FRONT SEATBACK, LH

main71280-95J00iYH63..GEN,SA;YH63..03S..ARL;LH51,61,71,YH5#,60,61,73..RHD..STD198708-199206

71301SFRAME SUB-ASSY, CENTER SEAT CUSHION

main71301-95J04iLH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5H)198708-199206

main71302-95J03iLH51,61,YH51,61..LHD198708-198908

71305SFRAME SUB-ASSY, CENTER SEATBACK

main72310-95J02-03iYH53,63199206

GRAY,TRIM1#

main72310-95J02-06iLH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5H)198708-199206

BROWN,TRIM4#

main72320-95J03-06iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

71310SCUSHION ASSY, FRONT SEAT, CENTER

main71310-95J20-16iLH51,61,71,YH53,63,73..STD..ARL198708-198908

***,BROWN,TRIM4#

main71310-95J22-03iYH53,63199206

***,GRAY,TRIM1#

main71310-95J22-06iLH51,61,YH5#,6#..RHD..(GEN,SA)198708-199206

***,BROWN,TRIM4#

main71310-95J24-06iLH51,61,YH51,61..LHD198708-198908

***,BROWN,TRIM4#

main71310-95J25-06iYH51,61..LHD..4H198708-198908

***,GULF SPEC,BROWN,TRIM4#

71318PAD, CENTER SEAT CUSHION

main71318-95J04iLH51,61,71,YH5#,6#,73..STD198708-199206

71350SBACK ASSY, FRONT SEAT, CENTER

main71350-95J20-16iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

***,W(FABRIC SEAT),BROWN,TRIM4#

main71350-95J20-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

***,BROWN,TRIM4#

main71350-95J24-03iYH53,63199206

***,GRAY,TRIM1#

main71350-95J24-06iYH63..V5D;YH63..GEN,SA;YH63..4HC..03S;LH51,61,71,YH5#,60,61,73..RHD..(4H,4HC,5H)198708-199206

***,BROWN,TRIM4#

main71350-95J25-06iLH51,61,YH51,61..LHD198708-198908

***,BROWN,TRIM4#

main71350-95J26iYH51,61..LHD..03S198708-198908

***,GULF SPEC

main71350-95J26-06iYH51,61..LHD..4H..(06S,12S,15S)198708-198908

***,GULF SPEC,BROWN,TRIM4#

71358PAD, CENTER SEATBACK

main71358-95J02iLH51,61,71,YH5#,6#,73..STD198708-199206

71361BRACKET, FRONT SEAT SET, NO.1

main71361-95J01iYH63..GEN,SA;YH63..03S..ARL;LH51,61,71,YH5#,60,61,73..RHD..(4H,4HC,5H)198708-199206

71363BRACKET, FRONT SEAT SET, NO.3

main71363-95J00iLH51,61,YH51,61..LHD198708-198908

71364BRACKET, FRONT SEAT SET, NO.4

main71364-95J00iYH53,63198708-199206

71366BRACKET, FRONT SEAT SET, NO.6

main71366-95J01iLH51,61,YH51,61..LHD198708-198908

71391COVER, CENTER SEAT CUSHION BRACKET, RH

main71391-95J02-03iYH53,63199206

GRAY,TRIM1#

sub71391-95J02

main71391-95J02-04iYH53..05S198708-198908

BLUE,TRIM8#

sub71391-95J02

main71391-95J02-06iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

BROWN,TRIM4#

sub71391-95J02

71392COVER, CENTER SEAT CUSHION BRACKET, LH

main71392-95J02-03iYH53,63199206

GRAY,TRIM1#

sub71392-95J02

main71392-95J02-04iYH53..05S198708-198908

BLUE,TRIM8#

sub71392-95J02

main71392-95J02-06iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

BROWN,TRIM4#

sub71392-95J02

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-95J42-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

***,BROWN,TRIM4#

main71410-95J42-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

***,W(FABRIC SEAT),BROWN,TRIM4#

main71410-95J65-04iYH53..05S198708-198908

***,BLUE,TRIM8#

main71410-95J68-03iYH53,63199206

***,GRAY,TRIM1#

main71410-95J68-06iYH63..V5D;YH63..GEN,SA;YH63..4HC..03S;LH51,61,71,YH5#,60,61,73..RHD..(4H,4HC,5H)198708-199206

***,BROWN,TRIM4#

main71410-95J69-06iLH51,61,YH51,61..LHD198708-198908

***,BROWN,TRIM4#

main71410-95J71-06iYH51,61..LHD..4H198708-198908

***,GULF SPEC,BROWN,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-95J50-16iYH63..V4D..5H..03S198708-198908

***,BROWN,TRIM4#

main71420-95J50-16iYH63..V4D..5H..03S198708-198908

***,W(FABRIC SEAT),BROWN,TRIM4#

main71420-95J51-16iYH63..06S..ARL198708-198908

***,BROWN,TRIM4#

main71420-95J70-04iYH53..05S198708-198908

***,BLUE,TRIM8#

main71420-95J73-03iYH53,63..STD199206

***,GRAY,TRIM1#

main71420-95J73-06iYH63..V5D;YH63..GEN,SA;YH63..4HC..03S;LH51,61,71,YH5#,60,61,73..RHD..STD198708-199206

***,BROWN,TRIM4#

main71420-95J76-06iLH51,61,YH51,61..LHD198708-198908

***,BROWN,TRIM4#

main71420-95J77-06iYH51,61..LHD..4H198708-198908

***,GULF SPEC,BROWN,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71401-95J58-16iYH63..06S..ARL;YH63..V4D..5H..03S198708-198908

***,BROWN,TRIM4#

main71401-95J58-16iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

***,W(FABRIC SEAT),BROWN,TRIM4#

main71401-95N04-04iYH53..05S198708-198908

***,BLUE,TRIM8#

main71401-95N12-03iYH53,63..STD199206

***,GRAY,TRIM1#

main71401-95N12-06iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199206

***,BROWN,TRIM4#

main71401-95N13-06iLH51,61,YH51,61,63..RHD..GEN198708-198908

***,W(HEADREST),BROWN,TRIM4#

main71401-95N13-06iYH63..V5D;YH53..5H..GL;YH53..4H,4HC;YH63..4HC..03S;LH51,61,71,YH73..ARL198708-199206

***,BROWN,TRIM4#

main71401-95N13-B0iYH53..GL199206-199610

***,GRAY,TRIM1#

main71401-95N14-06iLH51,61,YH51,61..LHD198708-198908

***,BROWN,TRIM4#

main71401-95N15-06iYH61..HRF;LH61,YH61..LHD..V;LH51,YH51..LHD..VSG;LH51,YH61..LHD..COM..5H198708-198908

***,W(HEADREST),BROWN,TRIM4#

main71401-95N15-06iYH61..HRF;LH61,YH61..LHD..V;LH51,YH51..LHD..VSG;LH51,YH61..LHD..COM..5H198708-198908

***,JORDAN SPEC OR W(HEADREST),BROWN,TRIM4#

main71401-95N16-06iYH51,61..LHD..4H198708-198908

***,GULF SPEC,BROWN,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71402-95J68-16iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

***,W(FABRIC SEAT),BROWN,TRIM4#

main71402-95J68-16iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

***,BROWN,TRIM4#

main71402-95J69-16iYH63..06S..ARL198708-198908

***,BROWN,TRIM4#

main71402-95N07-04iYH53..05S198708-198908

***,BLUE,TRIM8#

main71402-95N15-03iYH53,63..STD199206

***,GRAY,TRIM1#

main71402-95N15-06iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199206

***,BROWN,TRIM4#

main71402-95N17-06iYH63..V5D;YH63..4HC..03S;LH51,61,71,YH53,73..STD..ARL198708-198908

***,W(HEADREST),BROWN,TRIM4#

main71402-95N17-06iLH51,61,YH51,61,63..RHD..GEN198708-198908

***,BROWN,TRIM4#

main71402-95N18-06iYH53..GL..SA198808-199206

***,BROWN,TRIM4#

main71402-95N18-B0iYH53..GL199206-199610

***,GRAY,TRIM1#

main71402-95N19-06iLH51,61,YH51,61..LHD198708-198908

***,BROWN,TRIM4#

main71402-95N20-06iYH61..HRF;LH61,YH61..LHD..V;LH51,YH51..LHD..VSG;LH51,YH61..LHD..COM..5H198708-198908

***,JORDAN SPEC OR W(HEADREST),BROWN,TRIM4#

main71402-95N20-06iLH51..LHD..VSP;LH61..LHD..15S;YH51..LHD..(03S,12S);YH61..LHD..SRF..4H..15S198708-198908

***,W(HEADREST),BROWN,TRIM4#

main71402-95N21-06iYH51,61..LHD..4H198708-198908

***,GULF SPEC,BROWN,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-95J00iYH53..05S198708-198908

main71511-95J02iLH51,61,YH51,61..LHD198708-198908

main71511-95J03iLH51,61,71,YH5#,6#,73..RHD..STD198708-199206

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-95J00iYH53..05S198708-198908

main71511-95J02iYH53,63..STD198708-199206

main71512-95J00iLH51,61,YH51,61..LHD198708-198908

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-95J02iLH51,61,71,YH53,63,73..ARL198708-198908

W(HEADREST)

main71551-95J04iLH51..LHD..VSP;LH61..LHD..15S198708-198908

GULF SPEC OR W(HEADREST)

main71551-95J04iLH51..LHD..VSP;LH61..LHD..15S198708-198908

JORDAN SPEC OR GULF SPEC W(HEADREST)

main71551-95J04iYH61..HRF;YH61..LHD..V;YH51..LHD..06S198708-198908

W(HEADREST)

main71551-95J04iYH61..HRF;YH61..LHD..V;YH51..LHD..06S198708-198908

JORDAN SPEC OR W(HEADREST)

main71551-95J06iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199206

main71551-95J07iLH51,61,YH51,61..LHD198708-198908

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-95J02iYH61..HRF;YH61..LHD..V;YH51..LHD..06S198708-198908

JORDAN SPEC OR GULF SPEC OR W(HEADREST)

main71551-95J02iYH53..05S198708-198908

W(HEADREST)

main71551-95J02iYH53..05S198708-198908

JORDAN SPEC OR W(HEADREST)

main71551-95J02iYH53..05S198708-198908

GULF SPEC OR W(HEADREST)

main71551-95J04iYH63..06S..ARL198708-198908

main71551-95J05iLH51,61,YH51,61,63..RHD..GEN198708-198908

W(HEADREST)

main71551-95J06iLH51,61,YH51,61..LHD198708-198908

main71551-95J08iYH53,63..STD198708-199206

71811CCOVER, RECLINING ADJUSTER, RH

main71811-95J00-03iYH53,63..STD199206

GRAY,TRIM1#

sub71811-95J00

main71811-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

sub71811-95J00

main71811-95J00-16iLH51,61,71,YH5#,6#,73..RHD..STD198708-199206

BROWN,TRIM4#

sub71811-95J00

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010iLH51,61,71,YH51,61,73..COM198708-198908

sub90468-18008

main71812-30010iLH61,YH61..RHD..15S198807-198908

W(SUB SEAT LEG)

sub90468-18008

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iYH53..05S198708-199206

sub90468-18008

71812CCOVER, RECLINING ADJUSTER, LH

main71812-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

sub71812-95J00

main71812-95J00-16iYH63..06S..ARL;LH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

sub71812-95J00

71815ACOVER, FRONT SEAT CUSHION HINGE, RH

main71815-95J00-13iYH53,63..STD199206

GRAY,TRIM1#

sub71815-95J00

main71815-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

sub71815-95J00

main71815-95J00-16iLH51,61,71,YH5#,6#,73..STD198708-199206

BROWN,TRIM4#

sub71815-95J00

71816ACOVER, FRONT SEAT CUSHION HINGE, LH

main71816-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

sub71816-95J00

main71816-95J00-16iYH63..06S..ARL;LH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

sub71816-95J00

71832CCOVER, FRONT LH SEAT HINGE

main71832-95J00-03iYH53,63..STD199206

GRAY,TRIM1#

sub71832-95J00

main71832-95J00-06iYH63..GEN,SA;YH63..03S..ARL;LH51,61,71,YH5#,60,61,73..RHD..STD198708-199206

BROWN,TRIM4#

sub71832-95J00

71910AHEADREST ASSY, FRONT SEAT

main71910-95J02-06iYH61..HRF;YH61..LHD..V;YH51..LHD..06S198708-199206

BROWN,TRIM4#

sub71910-95J02

main71910-95J02-B0iYH53..GL199206-199610

GRAY,TRIM1#

sub71910-95J02

main71910-95J22-04iYH53..05S198708-198908

BLUE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71956-30020-04iYH53..05S198708-198908

W/O(LOCK),BLUE,TRIM8#

sub71956-30020

main71956-30020-16iYH61..HRF;YH61..LHD..V;YH51..LHD..06S198708-198908

W/O(LOCK),BROWN,TRIM4#

sub71956-30020

main71990-30020-04iYH53..05S198708-198908

W(LOCK),BLUE,TRIM8#

sub71990-30020

main71990-30020-16iYH61..HRF;YH61..LHD..V;YH51..LHD..06S198708-198908

W(LOCK),BROWN,TRIM4#

sub71990-30020

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-95J03iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH51,61,63,73..RHD..(ARL,GEN)198708-199610

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-95J01iYH53..05S;LH51,61,YH51,61..LHD198708-198908

main72120-95J02iYH63..06S..ARL198708-198908

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-95J01iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH51,61,63,73..RHD..(ARL,GEN)198708-199610

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72140-95J01iYH53,63..VSG..ARL;LH51,61,YH51,61..LHD198708-198908

72510DADJUSTER ASSY, RECLINING SEAT, OUTER RH

main72510-95J01-03iYH53,63199206

GRAY,TRIM1#

sub72510-95J01

main72510-95J01-14iYH53..05S198708-198908

BLUE,TRIM8#

sub72510-95J01

main72510-95J01-16iLH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5H)198708-199206

BROWN,TRIM4#

sub72510-95J01

72520DADJUSTER ASSY, RECLINING SEAT, OUTER LH

main72520-95J02-16iYH53..GL..SA;YH63..06S..ARL198708-199206

BROWN,TRIM4#

sub72520-95J02

main72520-95J02-B0iYH53..GL199206-199610

GRAY,TRIM1#

sub72520-95J02

main72520-95J03-14iYH53..05S198708-198908

BLUE,TRIM8#

sub72520-95J03

main72520-95J03-16iLH51,61,YH51,61..LHD198708-198908

BROWN,TRIM4#

sub72520-95J03

72524HANDLE, RECLINING ADJUSTER RELEASE

main72525-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

sub72525-95J00

main72525-95J00-16iYH51..RHD..06S198708-199206

BROWN,TRIM4#

sub72525-95J00

main72525-95J00-B0iYH53199206

GRAY,TRIM1#

sub72525-95J00

73178BCAP, SEAT BELT ANCHOR COVER

main73178-95J00iYH53..GL198708-199610

81917WASHER, LEATHER

main81917-95J00iYH63..03S199206

main81917-95J00-03iYH53,63..5H..STD199206

GRAY,TRIM1#

sub81917-95J00

main81917-95J00-06iYH63..GEN,SA;YH63..03S..ARL;LH51,61,71,YH5#,60,61,73..RHD..STD198708-199206

BROWN,TRIM4#

sub81917-95J00

9011908086

main90119-08086

9011910101

main90119-10101

9011910116

main90119-10116

9016840043

main90168-40043

9017910073

main90179-10073

9038612018

main90386-12018

9046818071

main90468-18071

9052308001

main90523-08001

9161160818

main91611-60818

9161161020

main91611-61020

9165561020

main91655-61020

9418041000

main94180-41000

63 parts on this diagram · 8 diagrams in section
