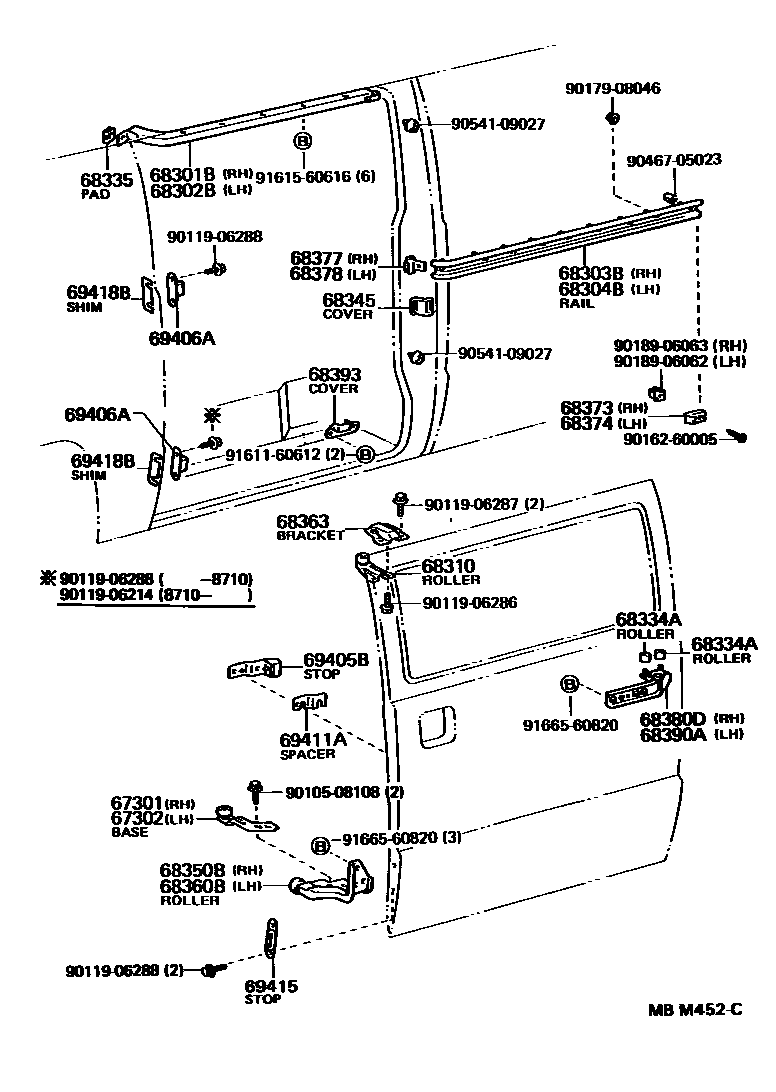

SLIDE ROLLER & RAIL

67301BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main67301-95J03iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

67302BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main67302-95J03iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-199610

68301BRAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68301-95J00iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

68302BRAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68302-95J00iYH53,63199206-199610

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-95J01iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-95J01iYH53,63199610

main68304-95J02iLH71,YH73198708-198908

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95J02iYH53,63199610

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700×2iYH53,63199610

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iLH51,61,71,YH5#,6#,73..STD198802-198808

68345COVER, SLIDE DOOR CENTER RAIL

main68345-95J00iYH63..15S199206

main68345-95J00-14iYH53..05S198708-198802

BLUE,TRIM8#

main68345-95J00-16iLH51,61,71,YH5#,6#,73..03S,06S,12S,15S198708-199206

BROWN,TRIM4#

main68345-95J00-B0iYH63199206

GRAY,TRIM1#

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-95J03iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-95J03iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-199610

68363BRACKET, SLIDE DOOR UPPER ROLLER

main68363-95J00iLH51,61,71,YH5#,6#,73198708-199610

68373MOULDING, SLIDE RAIL END, RH

main68373-95J01iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

68374MOULDING, SLIDE RAIL END, LH

main68374-95J00iYH53,63199206-199610

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-95J01iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

68378PAD, SLIDE DOOR RAIL

main68378-95J01iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-198802

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-95J03iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-95J01iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-199610

68393COVER, SLIDE DOOR LOWER RAIL

main68393-95J00iLH51,61,71,YH5#,6#,73198708-199610

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-95J03×2iLH61,YH51,61,63..V5D198708-198908

69406ASTOP SUB-ASSY, SLIDE DOOR DOWN MALE

main69406-95J00×2iYH61..RHD;LH61,YH51..COM;YH61..LHD..15S;YH61..LHD..V4D;LH51,71,YH53,73;LH61,YH51,63..V4D198708-198710

main69406-95J01×2iYH61..RHD;YH61..LHD..15S;YH61..LHD..V4D;LH61,YH51,63..COM;LH61,YH51,63..V4D;LH51,71,YH53,60,73198710-198906

main69416-95J00×4iLH61,YH51,61,63..V5D198906-198908

69411ASPACER, SLIDE DOOR OPEN STOP

main69411-95J00iLH51,61,71,YH5#,6#,73198708-199610

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95J00×2iYH61..RHD;YH61..LHD..15S;YH61..LHD..V4D;LH61,YH51,63..COM;LH61,YH51,63..V4D;LH51,71,YH53,60,73198708-198906

main69415-95J01×4iLH61,YH51,61,63..V5D198906-198908

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iLH51,61,71,YH5#,6#,73198708-199610

9010508108

main90105-08108

9011906214

main90119-06214

9011906286

main90119-06286

9011906287

main90119-06287

9011906288

main90119-06288

9016260005

main90162-60005

9017908046

main90179-08046

9018906062

main90189-06062

9018906063

main90189-06063

9046705023

main90467-05023

9054109027

main90541-09027

9161160612

main91611-60612

9161560616

main91615-60616

9166560820

main91665-60820

39 parts on this diagram · 1 diagram in section
