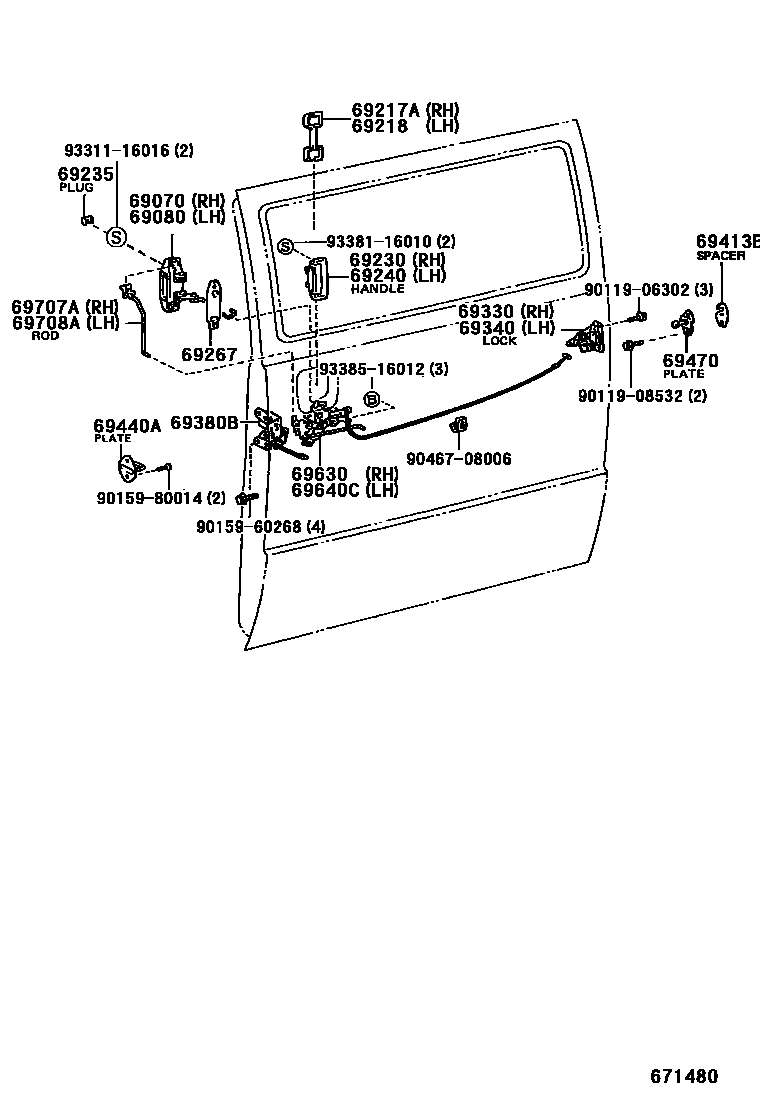

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-95J02-06iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

BROWN,TRIM4#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-95J02-04iYH53..05S198708-199012

BLUE,TRIM8#

sub69080-95J02

main69080-95J02-06iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5H)198708-199206

BROWN,TRIM4#

sub69080-95J02

main69080-95J02-B0iYH53,63199206

GRAY,TRIM1#

sub69080-95J02

69217ACOVER, SLIDE DOOR OUTSIDE HANDLE, RH

main69217-95J00iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

69218COVER, SLIDE DOOR OUTSIDE HANDLE, LH

main69218-95J00iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-199610

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-87003iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198801

main69230-95J00iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198801-198908

69235PLUG, SLIDE DOOR INSIDE HANDLE CASE

main69235-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

sub69235-95J00

main69235-95J00-16iLH51,61,71,YH5#,6#,73..4H,4HC,5H198708-199206

BROWN,TRIM4#

sub69235-95J00

main69235-95J00-B0iYH53,63199206

GRAY,TRIM1#

sub69235-95J00

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-87002iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-198801

main69240-95J00iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198801-199610

69267SEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-95J00iYH53,6#199012-199610

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD198708-199610

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-95J00iLH71,YH53,63,73..(05S,06S,15S)..ARL198708-198908

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iLH51,61,71,YH5#,6#,73198708-199610

sub69413-28020

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iLH71,YH53,63,73..(05S,06S,15S)..ARL198708-198908

sub69440-46010

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iYH53,63198708-199610

sub69470-95D00

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-95J00iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-95J00iYH63..GEN,SA;YH63..03S..ARL;LH61,YH51,61..LHD..V5D;LH51,61,YH5#,60,61..RHD..(4H,4HC,5H)198708-199610

main69640-95J01iLH71,YH53,63,73..(05S,06S,15S)..ARL198708-198908

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95J00-06iYH51,63..V5D;YH51..LHD..12S;YH51..LHD..V4D;LH51,61,YH61..LHD198708-198908

BROWN,TRIM4#

sub69707-95J00

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95J00-14iYH53..05S198708-198908

BLUE,TRIM8#

sub69708-95J00

main69708-95J00-16iLH61,YH51,61..LHD..V5D;LH51,61,71,YH5#,6#,73..RHD..(4H,4HC,5H)198708-199206

BROWN,TRIM4#

sub69708-95J00

main69708-95J00-B0iYH53,63199206

GRAY,TRIM1#

sub69708-95J00

9011906302

main90119-06302

9011908532

main90119-08532

9015960268

main90159-60268

9015980014

main90159-80014

9046708006

main90467-08006

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

26 parts on this diagram · 1 diagram in section
