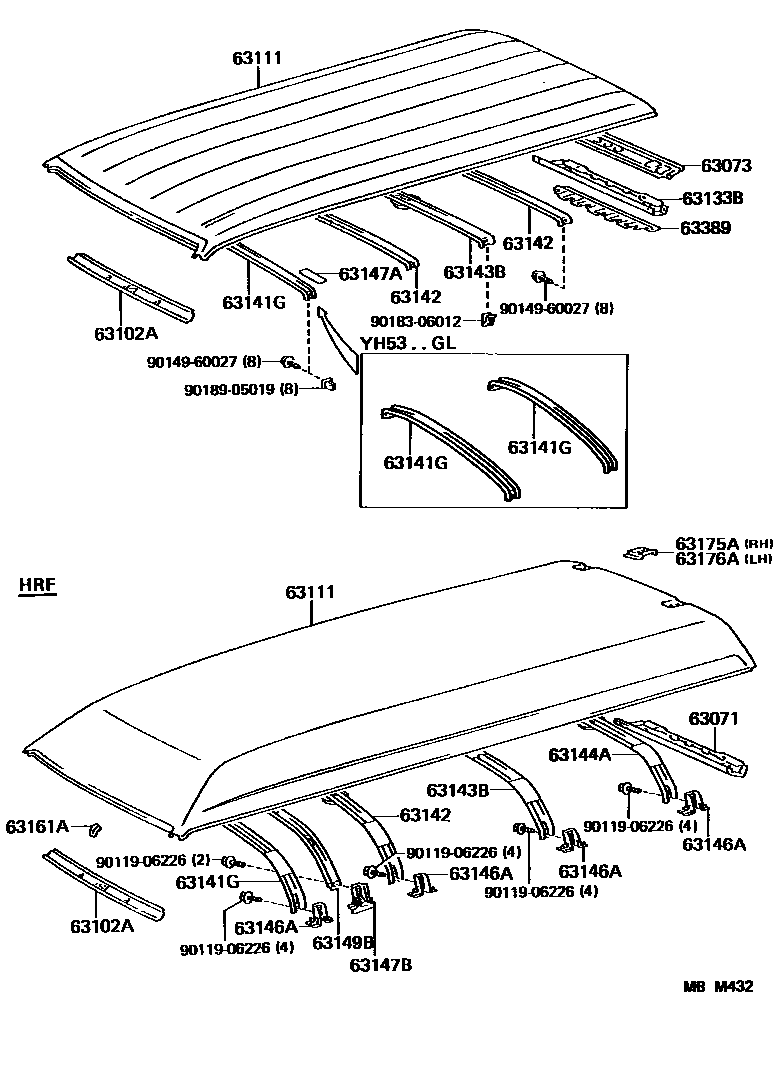

ROOF PANEL & BACK PANEL

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-90C01iLH61,71,YH61,73..HRF198708-198908

63073FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER

main63073-95J02iLH51,61,YH5#,6#..SRF..STD198708-198808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95J00iYH63199206

main63102-95J01iYH53..VSG198808-199610

main63102-95J05iYH53..4FC198708-198908

HIGH GRADE PACKAGE

63111PANEL, ROOF

main63111-90C00iLH71,YH73198708-198908

main63111-95J00iLH51,YH5#198808-198908

main63111-95J01iYH63199206

main63111-95J04iLH61,YH61..HRF198708-198908

63133BFRAME, BACK WINDOW

main63133-95J00iYH63199206

main63133-95J02iYH53199610

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-90C03iLH71,YH61,73..HRF198708-198908

main63103-95J05iLH61..HRF198708-198908

main63103-95J06iLH61..HRF198708-198908

W(FR *AIC (FR COOLER))

main63141-95J00iYH53,63..5H199610

main63141-95J10iLH51,61,YH51,6#..V..SRF..(GEN,SA)198708-199206

main63141-95J11iLH51,61,YH51,61..V..SRF..GEN198708-198908

W(FR *AIC (FR COOLER))

main63141-95J15×2iLH51,61,YH51,61..COM..SRF198708-198908

W(FR *AIC (FR COOLER) & RR COOLER)

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-90C00iLH61,YH61..HRF198708-198908

main63104-90C01iLH71,YH73198708-198908

main63142-95J00×2iYH53,63199206-199610

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63105-90C00iLH61..HRF198708-198908

main63105-90C01iLH71,YH61,73..HRF198708-198908

main63105-95J00iYH63..03S199206

main63105-95J01iYH53,63..5H199610

main63105-95J02iYH53..05S198708-198908

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63106-90C00iLH61,71,YH61,73..HRF198708-198908

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-90C00×4iLH61,71,YH61,73..HRF198708-198908

63147ACUSHION, ROOF TO ROOF REINFORCEMENT

main63357-95701×14iLH51,61,YH51,61..SRF..03S..GEN198708-198908

63147BBRACKET, ROOF PANEL REINFORCEMENT, NO.1 REAR

main63147-90C00iLH71,YH61,73..HRF198708-198908

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-90C00iLH71,YH61,73..HRF198708-198908

63161ASPACER, WINDSHIELD HEADER

main63161-95J00×2iLH61,YH61..HRF198708-198908

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-90C00iLH61,71,YH61,73..HRF198708-198908

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-90C00iLH61,71,YH61,73..HRF198708-198908

63389RETAINER, ROOF HEADLINING TRIM, CENTER

main63389-90C00iLH71,YH73198708-198908

main63389-95J00iYH53..VSG198808-199610

9011906226

main90119-06226

9014960027

main90149-60027

9018306012

main90183-06012

9018905019

main90189-05019

21 parts on this diagram · 1 diagram in section
