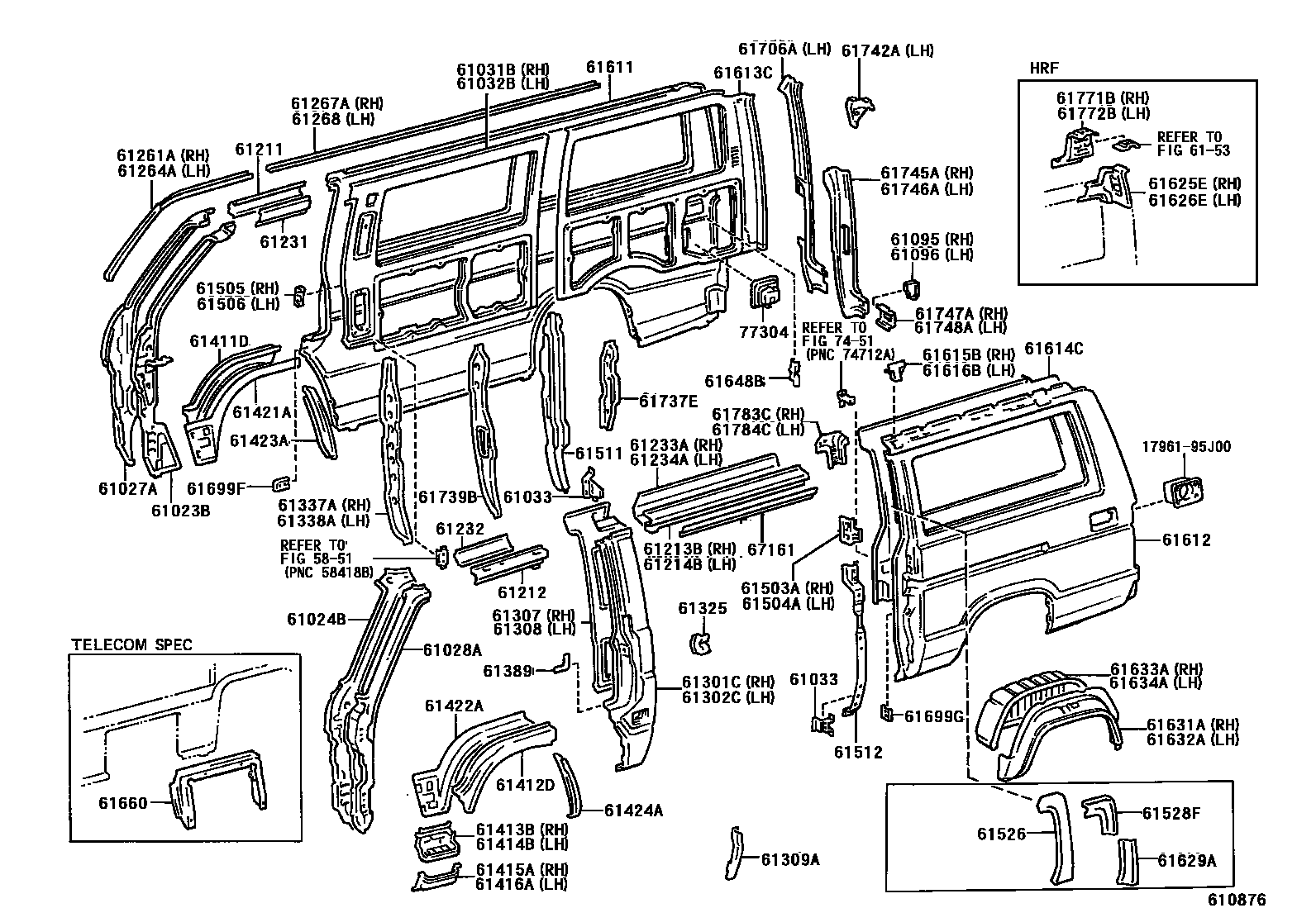

SIDE MEMBER
5851
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
W(ELECTROMAGNETIC LOCK)
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
W(RADIO)
W(RADIO)
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
THAILAND SPEC OR W(FRONT DOOR VENTILATOR WINDOW)
THAILAND SPEC
W(FRONT DOOR VENTILATOR WINDOW)
THAILAND SPEC OR HIGH GRADE PACKAGE OR W(FRONT DOOR VENTILATOR WINDOW)
W(RADIO)
61031BEXTENSION SUB-ASSY, QUARTER PANEL, RH
W(FRONT *AIC (FR COOLER))
W(FRONT *AIC (FR COOLER))
CKD SPEC
W(FRONT *AIC (FR COOLER))
61032BEXTENSION SUB-ASSY, QUARTER PANEL, LH
61033EXTENSION SUB-ASSY, QUARTER LOCK PILLAR
61095PLATE SUB-ASSY, BACK DOOR OPENING, LOWER RH
61096PLATE SUB-ASSY, BACK DOOR OPENING, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
sub61301-95J08
W(MUD GUARD)
CKD SPEC
W(ELECTROMAGNETIC LOCK & MUD GUARD)
CKD SPEC & W(ELECTROMAGNETIC LOCK & MUD GUARD)
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
main61302-95J09iYH63..03S,15S;LH61,YH51,61..LHD..V5D;LH51,61,YH5#,60,61..RHD..(4H,4HC,5H)198708-199206
main61302-95J15iYH61..06S;YH51..LHD..V5D;YH51..RHD..V4D;YH61..RHD..03S;YH61..V5D..03S;LH51,61..V4D..06S198708-199206
W(ELECTROMAGNETIC LOCK)
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
W(FR *AIC (FR COOLER) & RR COOLER)
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
main61308-95J12iYH63..(4HC,5H)..(ARL,SA);LH51,61,YH51,61..RHD..COM;LH51,61,71,YH53,73..STD..ARL198708
W(FR *AIC (FR COOLER) & RR COOLER)
main61308-95J35iYH61..06S;YH61..RHD..03S;YH61..V5D..03S;LH61,YH51..LHD..V5D;LH51,61,YH51,60,63..RHD..V..(GEN,SA)198708-199206
61309ASEAL SUB-ASSY, CENTER BODY PILLAR
61325REINFORCEMENT, CENTER BODY PILLER, CENTER
61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH
61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH
61389PATCH, CENTER BODY PILLAR, OUTER
CKD SPEC
61411DPANEL, FENDER, OUTER RH
61412DPANEL, FENDER, OUTER LH
61413BPANEL, FRONT STEP, RH
61414BPANEL, FRONT STEP, LH
61415APANEL, FRONT STEP, UNDER, RH
61416APANEL, FRONT STEP UNDER, LH
61421APANEL, FENDER, INNER RH
61422APANEL, FENDER, INNER LH
61423APANEL, FENDER, INNER LOWER RH
FRONT *AIC (FR COOLER) & RR COOLER
61424APANEL, FENDER, INNER LOWER LH
FRONT *AIC (FR COOLER) & RR COOLER
61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH
61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61526REINFORCEMENT, QUARTER LOCK PILLER, UPPER LH
61528FEXTENSION, QUARTER OUTER PANEL, FRONT
6153
61611PANEL, QUARTER, RH
TELECOM
TELECOM
61612PANEL, QUARTER, LH
61614CPANEL SUB-ASSY, QUARTER, INNER REAR LH
CKD SPEC
61615BREINFORCEMENT, QUARTER PANEL, OUTER FRONT
61616BREINFORCEMENT, QUARTER PANEL, OUTER REAR
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61629AREINFORCEMENT, QUARTER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W/O (SUB SEAT)
61648BBRACKET, QUARTER PANEL PAD
61660EXTENSION ASSY, QUARTER OUTER PANEL
TELECOM
61699FRETAINER, COURTESY SWITCH, RH
61699GRETAINER, COURTESY SWITCH, LH
61706AFRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH
61737EREINFORCEMENT, QUARTER, INNER, RH
61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL
main61739-95J00iYH61..RHD;LH51,YH53,60;YH61..LHD..15S;YH61..LHD..V4D;LH61,YH51,63..COM;LH61,YH51,63..V4D198708
TELECOM
61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61747AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, RH
61748AEXTENSION, BACK DOOR OPENING LOWER REINFORCEMENT, LH
61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH
61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH
61783CBRACE, QUARTER PANEL, INNER RH
61784CBRACE, QUARTER PANEL, INNER LH
67161RETAINER, SLIDE DOOR W/STRIP SET, RH
7451
77304BOX SUB-ASSY, FUEL INLET
HIGH GRADE PACKAGE
W(FUEL LID OPENER)
1796195J00INLET, COOL AIR
main17961-95J00
83 parts on this diagram · 4 diagrams in section
