FRONT PANEL & WINDSHIELD GLASS

53153BGUIDE, FRONT SIDE AIR

main17811-95J00iLH51..LHD..12S198708-198908

W(FRONT HEATER)

main17811-95J00iLH51..LHD..03S;LH61,YH51,61..LHD198708-198908

RH

main17812-95J00iLH51,61,YH51,61..RHD..GEN198708-199206

W(FRONT HEATER)

main17812-95J00iYH53,63..STD198708-199206

main17812-95J00iLH51,61,YH51,61..GEN198708

LH

main53153-95J00iLH61..RHD..SRF..03S..GEN198708-198709

RH

main53153-95J00iLH61..RHD..SRF..03S..GEN198708-198709

HIGH GRADE PACKAGE,RH

main53153-95J01iYH53..GL198708-199610

LH

main53153-95J01iYH53..GL198708-199610

HIGH GRADE PACKAGE,LH

main53153-95J03iYH53..GL198709-199610

RH

main53153-95J03iLH61..RHD..SRF..03S..GEN198709-199610

HIGH GRADE PACKAGE,RH

53154BGUIDE, FRONT SIDE AIR, NO.2

main17813-95J00iLH51..LHD..03S;LH61,YH51,61..LHD198708-198908

W(FRONT HEATER)

main17813-95J00iLH51..LHD..12S198708-198908

RH

main17814-95J00iYH63;LH51,61,71,YH53,60,73..STD..(ARL,SA)198708-199206

main17814-95J00iLH51,61,YH51,61..GEN198708

LH

main17814-95J00iLH51,61,YH51,61..RHD..GEN198708-199206

W(FRONT HEATER)

main53154-95J00iYH53..GL198708-199610

HIGH GRADE PACKAGE

53231APANEL, LOWER SHROUD

main53231-95J00iLH51,61,71,YH5#,6#,73..STD198708-199206

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-95J00iYH63..ARL;YH61..4H,4HC;LH51,61,71,YH5#,73..STD..(ARL,GEN)198708-198908

sub53801-95J01

main53801-95J01iLH61,YH51,61..RHD..MTM..(06S,15S)198708-199206

*GIS OR CKD SPEC

main53801-95J01iLH51..GEN;YH61..4HC;YH61..LHD..4H;YH61..RHD..03S;LH61,YH51..LHD..(06S,15S);LH61,YH51..(03S,12S)..GEN198708-199206

*GIS

main53801-95J01iYH53,63..V4D..STD199206

main53801-95J02iYH53..05S198708-198908

sub53801-95J03

main53801-95J03iYH53..GL..SA198808-199610

main53801-95J03iLH61..RHD..SRF..03S..GEN198708-199610

HIGH GRADE PACKAGE

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-95J00iLH51,61,71,YH53,63,73..STD..ARL198708-198908

W(FRONT DOOR VENTILATOR WINDOW)

sub53802-95J06

main53802-95J01iYH61..4H,4HC;LH51,61,YH51..GEN198708-198908

sub53802-95J02

main53802-95J02iYH61..5H;YH53,60,63..STD..(GEN,SA)198708-199206

CKD COMPLETION STATE OR *GIS

main53802-95J02iYH53,63..STD199206

main53802-95J02iYH61..4HC;LH61..LHD..15S;YH61..LHD..4H..15S;LH51,61,YH51,61..(03S,06S,12S)..GEN198708-199206

*GIS

main53802-95J04iYH53..05S198708-198908

sub53802-95J05

main53802-95J05iYH53..GL..SA198808-199610

main53802-95J06iYH61..4HC;YH51..RHD..12S;LH51,61,YH51,61..RHD..SRF..V4D..03S..GEN198708-198908

THAILAND SPEC OR *GIS & W(FRONT DOOR VENTILATOR WINDOW)

main53802-95J06iYH61..RHD..4H..15S198708-198908

THAILAND SPEC

main53802-95J06iYH61..RHD..4H..15S198708-198908

W(FRONT DOOR VENTILATOR WINDOW)

main53802-95J06iYH61..RHD..4H..15S198708-198908

CKD SPEC OR *GIS & W(FRONT DOOR VENTILATOR WINDOW)

main53802-95J06iYH61..RHD..4H..15S198708-198908

*GIS & W(FRONT DOOR VENTILATOR WINDOW)

main53802-95J07iLH61..RHD..SRF..03S..GEN198708-198908

HIGH GRADE PACKAGE

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-95J00iYH63..V;LH51,61,71,YH5#,60,61,73198708-199206

53822APROTECTOR, FRONT SIDE PANEL, NO.1 LH

main53822-95J00iYH53,63198708-199206

53823CPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-95J00iYH63..V;LH51,61,71,YH5#,60,61,73198708-199206

53823DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53823-95J00iLH51,61,71,YH5#,6#,73198708-199206

53827ERETAINER, FRONT SIDE PANEL SET, RH

main53827-95700iYH63..V;LH51,61,71,YH5#,60,61,73198708-199206

53827FRETAINER, FRONT SIDE PANEL SET, LH

main53827-95700iLH51,61,71,YH5#,6#,73198708-199206

53879BRETAINER, LOWER SHROUD PANEL

main53879-22010iLH51,61,71,YH5#,6#,73..STD198708-199206

53915CPROTECTOR, LOWER SHROUD

main53915-95J00iLH51,61,71,YH5#,6#,73..STD198708-199206

55700PANEL ASSY, FRONT

main55701-95J09iYH63..ARL;LH51,61,71,YH5#,61,73..RHD..STD..(ARL,GEN)198708-198908

sub55701-95J11

main55701-95J10iYH61..LHD..4H;LH51,61,YH51..LHD198708-198908

sub55701-95J16

main55701-95J11iLH61..HRF198708-198908

*GIS

main55701-95J11iYH53,60,63..STD..(GEN,SA)198708-198908

CKD COMPLETION STATE OR *GIS

main55701-95J13iYH53..05S198708-198908

sub55701-95J19

main55701-95J14iLH61..RHD..SRF..V4D..GEN198708-198908

*GIS & W(FRONT DOOR VENTILATOR WINDOW)

main55701-95J16iYH61..HRF198708-198908

*GIS

main55701-95J16iYH61..5H198708-198908

main55701-95J19iLH61..RHD..SRF..03S..GEN198708-198908

HIGH GRADE PACKAGE

main55701-95J19iYH53..GL..SA198808-198908

55712APANEL, FRONT LOWER

main55712-95J00iYH53,63..STD198708-199206

55717CPROTECTOR, FRONT, LOWER RH

main55717-95J00iLH51,61,71,YH5#,6#,73..STD198708-199206

55718CPROTECTOR, FRONT, LOWER LH

main55718-95J00iYH53,63..STD198708-199206

55723BSHUTTER, FRONT AIR SIDE

main55723-95J01iLH51,61,71,YH5#,6#,73..STD198708-199206

main55723-95J02iYH53..GL198708-199610

NO.2,RH

main55723-95J02iYH53..GL198708-199610

HIGH GRADE PACKAGE,NO.2,RH

main55724-95J00iYH53..GL198708-199610

HIGH GRADE PACKAGE,LH

main55724-95J00iLH61..RHD..SRF..03S..GEN198708-199610

LH

55754BCOVER, WINDSHIELD, RH

main55754-95J00iYH63..V;LH51,61,71,YH5#,60,61,73198708-199206

55754CCOVER, WINDSHIELD, LH

main55754-95J00iLH51,61,71,YH5#,6#,73198708-199206

56111GLASS, WINDSHIELD

main56111-95J00iLH51,61,YH51,61..GEN198708-198908

*TT,T=5.0

sub56111-95J05

main56111-95J02iLH51,61,YH51,61..GEN198708-198908

*ZT,T=5.0

sub56111-95J03

main56111-95J03iYH53,60,63..GEN,SA198708-199610

*LAM,T=5.7

sub56111-95J06

main56111-95J04iLH51,61,71,YH53,63,73..ARL198708-198908

*LAM,T=5.7

sub56111-95J06

main56111-95J05iLH51,61,YH5#,61..GEN,SA198708-199610

*TL,T=5.7

sub56111-95J06

main56111-95J15iYH53..4FC198708-198908

*LAM,T=5.7,W(ROOM LAMP)

56121WEATHERSTRIP, WINDSHIELD

main56121-95J00iYH51,61..LHD..4H198708-198908

GULF SPEC

main56121-95J00iYH53,63..STD198708-199206

main56121-95J01iYH53..GL198708-199610

main56121-95J01iYH63..ARL;LH51,61,71,YH5#,61,73..STD198708-199206

W(MOULDING)

9011906230

main90119-06230

9011906245

main90119-06245

9011908524

main90119-08524

9015960025

main90159-60025

9015960220

main90159-60220

9018906038

main90189-06038

9048030320

main90480-30320

9056107007

main90561-07007

9165140814

main91651-40814

9165540616

main91655-40616

9165540620

main91655-40620

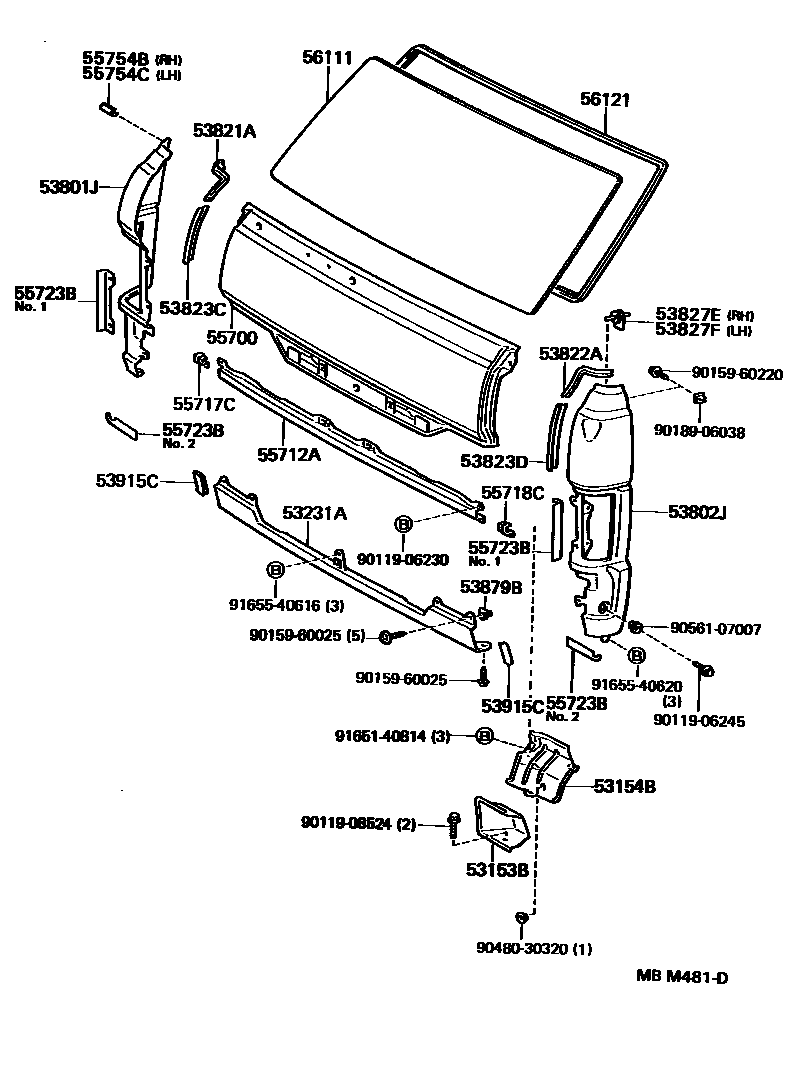

33 parts on this diagram · 1 diagram in section
