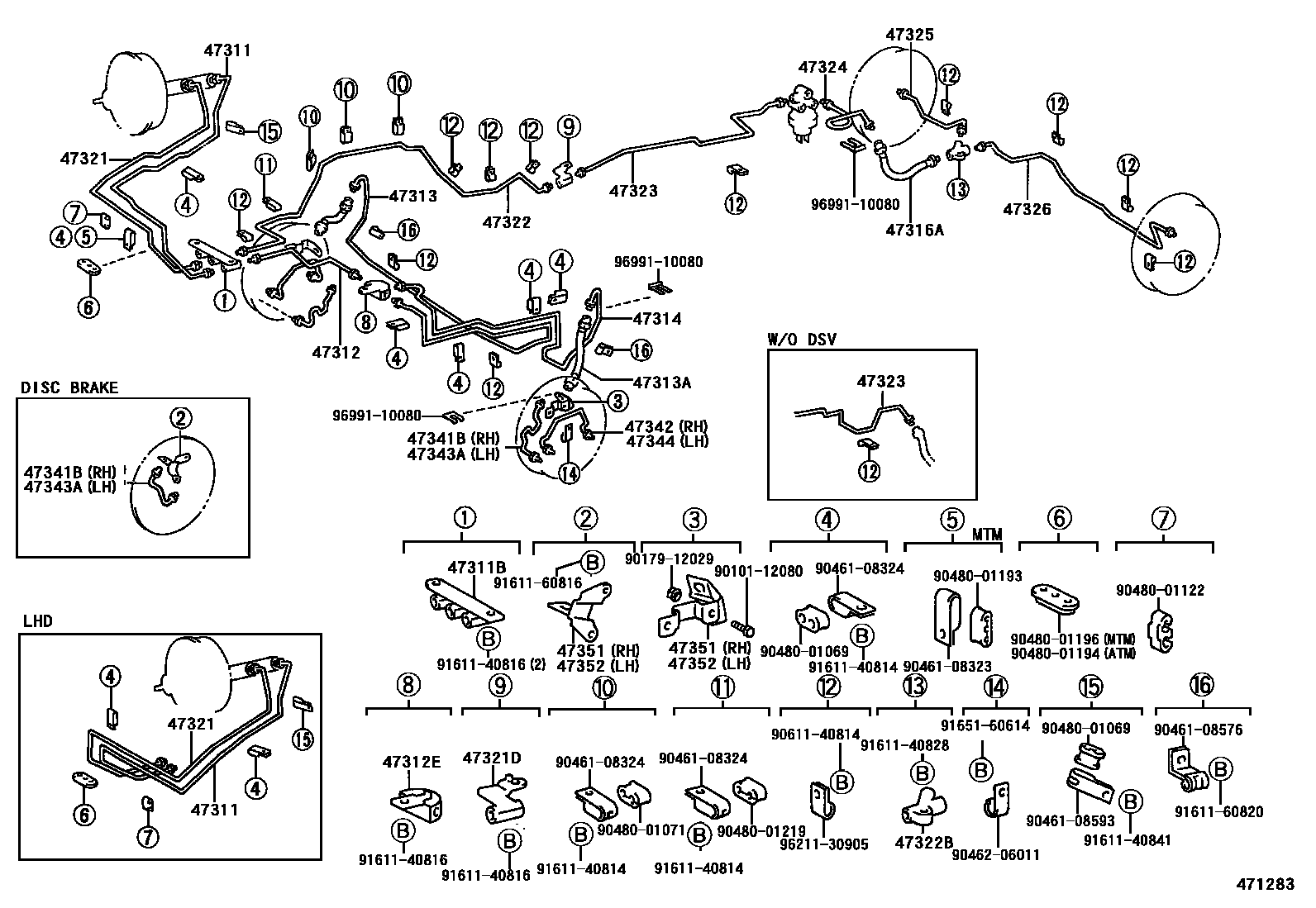

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26192iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199309

main47311-26193iYH63..03S199206-199712

main47311-26211iLH51,61,YH51,61..LHD198708-198908

main47311-26280iYH53..GL198708-199309

main47311-26281iYH53..GL199309-199610

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10100iLH51,61,YH53,61,63..ATM198708-199206

main90412-10105iYH53,63198708-199206

47312TUBE, FRONT BRAKE, NO.2

main47312-26171iYH53,63198708-199206

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90414-10012iLH51,61,71,YH5#,6#,73198708-199206

47313TUBE, FRONT BRAKE, NO.3

main47313-26091iLH51,61,71,YH5#,6#,73198708-199206

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02477iLH51,61,71,YH5#,6#,73198708-199206

47314TUBE, FRONT BRAKE, NO.4

main47314-26081iLH51,61,71,YH5#,6#,73198708-199206

47316TUBE, FRONT BRAKE, NO.6

main47316-26091iYH53198708-199712

main47316-26101iLH61,YH6#198708-199206

main47316-26111iLH71,YH73198708-198908

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-33205iLH51,61,YH51,6#..GEN198708-199206

47321TUBE, REAR BRAKE, NO.1

main47321-26101iLH51,61,YH5#,6#..RHD..STD..(GEN,SA)198708-199309

main47321-26102iYH63..15S199309-199712

main47321-26121iLH51,61,YH51,61..LHD198708-198908

main47321-26190iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198708-199309

main47321-26191iYH53..GL199309-199610

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10103iLH51,61,71,YH5#,6#,73198708-199206

47322TUBE, REAR BRAKE, NO.2

main47322-26092iLH51,61,71,YH5#,6#,73198708-199206

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iYH53,63198708-199206

47323TUBE, REAR BRAKE, NO.3

main47323-26171iLH51,YH5#198708-199712

main47323-26211iYH63198708-199206

main47323-26251iLH71,YH73198708-198908

47324TUBE, REAR BRAKE, NO.4

main47324-26101iLH51,61,71,YH5#,6#,73198708-199206

47325TUBE, REAR BRAKE, NO.5

main47325-26151iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198808-199610

main47325-26210iYH63..03S198708-199712

47326TUBE, REAR BRAKE, NO.6

main47326-26131iYH53..5H..GL;YH53..4FC,4H,4HC,5F;LH51,61,71,YH63,73..ARL198808-199610

main47326-26200iLH51,61,YH5#,6#..STD..(GEN,SA)198708-199712

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26060iLH51,61,YH51,61..GEN198708-199010

W(FRONT DISC BRAKE)

main47341-26060iYH53,63199010-199610

main47341-26070iLH51,61,YH51,61..GEN198708-199010

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26030iLH51,61,YH51,61..GEN198708-199010

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26060iLH51,61,YH51,61..GEN198708-199010

W(FRONT DISC BRAKE)

main47343-26060iYH53,63199010-199610

main47343-26070iLH51,61,YH51,61..GEN198708-199010

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-26030iLH51,61,YH51,61..GEN198708-199010

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26070iLH51,61,YH51,61..GEN198708-198908

W(FRONT DISC BRAKE)

main47351-26070iYH53,63198908-199610

main47351-26080iLH51,61,YH51,61..GEN198708-198908

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26070iYH63;LH51,61,71,YH53,60,73..ARL,SA198708-198908

W(FRONT DISC BRAKE)

main47352-26070iYH53,6#198908-199610

main47352-26080iLH51,61,YH51,61..GEN198708-198908

9010112080

main90101-12080

9017912029

main90179-12029

9046108323

main90461-08323

9046108324

main90461-08324

9046108576

main90461-08576

9046108593

main90461-08593

9046206011

main90462-06011

9048001069

main90480-01069

9048001071

main90480-01071

9048001122

main90480-01122

9048001193

main90480-01193

9048001194

main90480-01194

9048001196

main90480-01196

9048001219

main90480-01219

9061140814

main90611-40814

9161140814

main91611-40814

9161140816

main91611-40816

9161140828

main91611-40828

9161140841

main91611-40841

9161160816

main91611-60816

9161160820

main91611-60820

9165160614

main91651-60614

9621130905

main96211-30905

9699110080

main96991-10080

47 parts on this diagram · 3 diagrams in section
