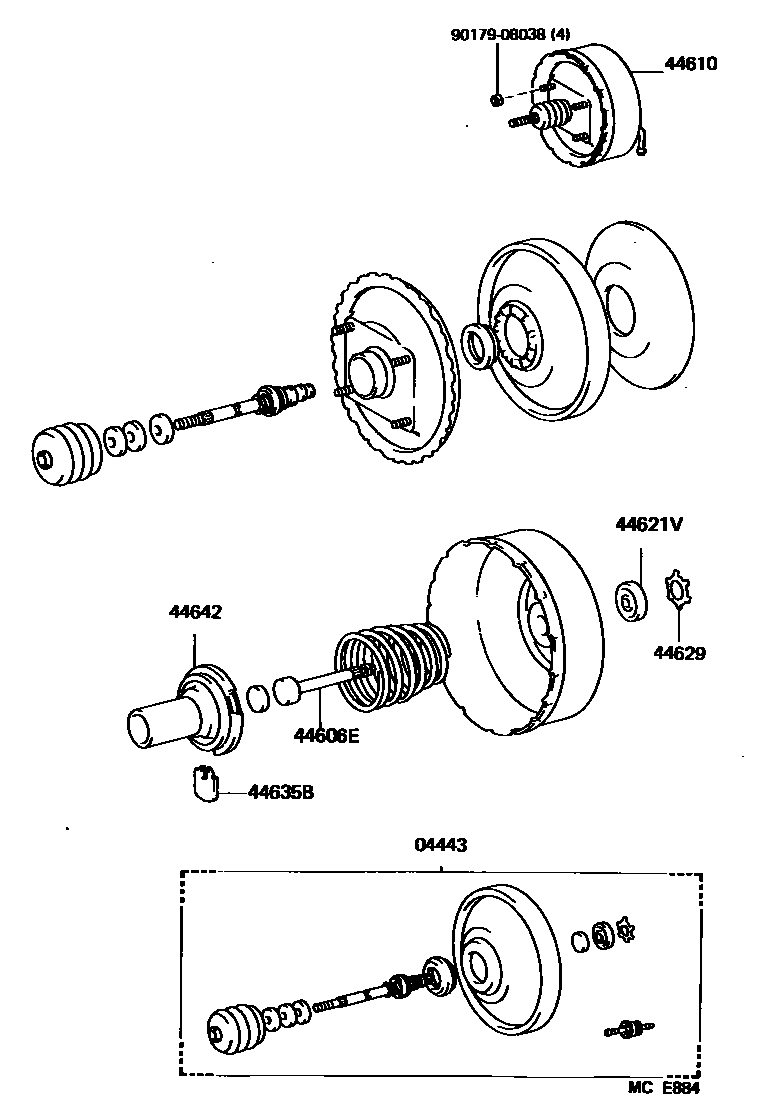

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04443BOOSTER KIT, BRAKE

main04443-26210iLH51,61..GEN¥11,600198708-198908

W(FRONT DISC BRAKE)

main04443-26220iYH63..15S¥7,200198708-199712

main04443-26220iYH51,61¥7,200198708-198908

W(FRONT DISC BRAKE)

main04443-26240iLH51,61..GEN¥11,600198708-198908

main04443-26250iYH51,61¥11,600198708-198908

main04443-26350iYH53,63,73..ARL¥13,900198708-198908

main04443-26360iLH51,61,71..ARL¥13,900198708-198908

main04443-26370iYH53..GL..SA¥12,800198808-199610

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iYH63..03S¥2,660198708-199712

main44606-20800iLH51,61,71,YH53,63,73..ARL¥1,260198708-198908

44610BOOSTER ASSY, BRAKE

main44610-26250iLH51,61,71,YH53,63,73..ARL¥63,200198708-198908

main44610-26260iYH53..STD¥46,000198908-199712

main44610-26260iYH53,60,63..STD..(GEN,SA)¥46,000198708-198908

W(FRONT DISC BRAKE)

main44610-26270iLH51,61,YH51,61..GEN¥46,000198708-198908

main44610-26370iYH53..GL..SA¥63,200198808-199610

44621VSEAL, BOOSTER BODY

main44621-14030iLH51,61,71,YH53,63,73..ARL¥400198708-198908

main44621-28120iYH63..15S¥590198708-199712

44629RING, CIRCULAR INTERNAL

main44628-28120iYH63..15S¥390198708-199712

main44628-60010iLH51,61,71,YH53,63,73..ARL¥440198708-198908

44635BKEY, VALVE STOPPER

main44635-20800iLH51,61,71,YH53,63,73..ARL¥230198708-198908

main44635-28120iYH63..15S¥370198708-199712

44642PISTON, BRAKE BOOSTER

main44642-16050iLH51,61,YH51,61..GEN¥3,820198708-198908

main44642-20800iLH51,61,71,YH53,63,73..ARL¥2,740198708-198908

main44642-32010iYH63..15S¥6,100198908-199712

main44642-32010iLH51,61,YH51,61..GEN¥6,100198708-198908

W(FRONT DISC BRAKE)

9017908038

main90179-08038¥130

8 parts on this diagram · 7 diagrams in section
