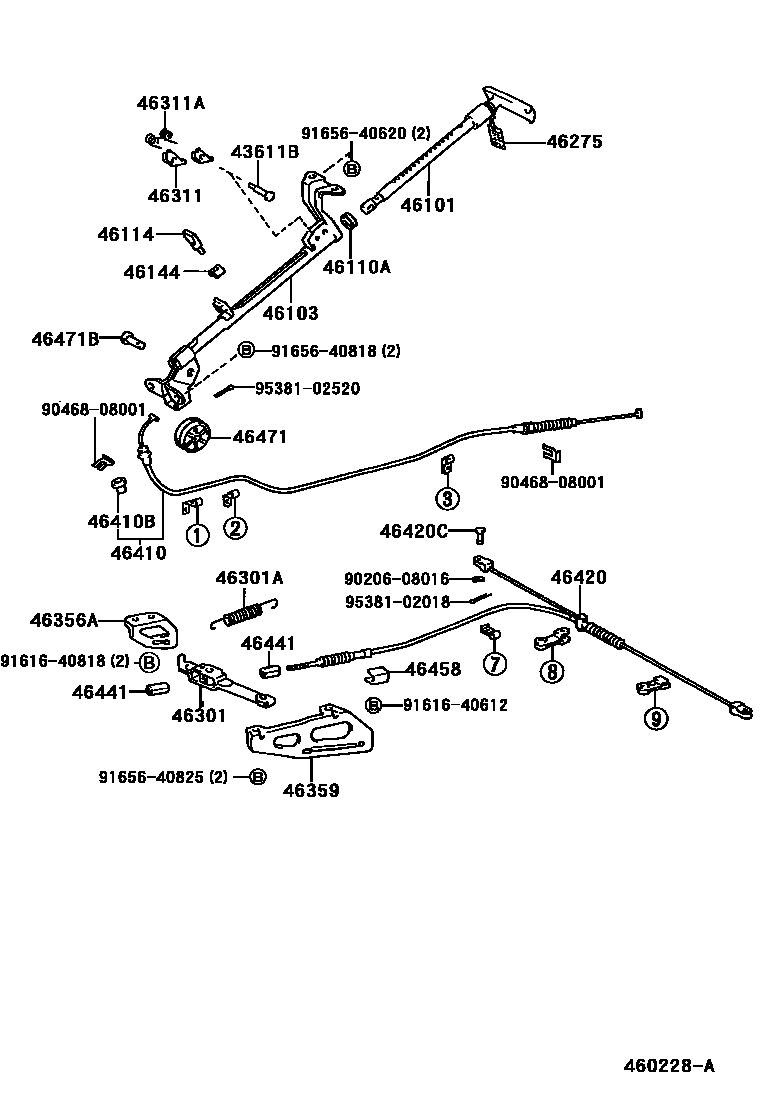

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

43611BPIN, PARKING BRAKE PAWL

main46313-40010iLH51,61,71,YH5#,6#,73..RHD198708-199207

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46120-26050iYH63..VSP;YH53,63..09S,15S198708-199207

main46120-26060iLH51,61,YH51,61..LHD198708-198908

main46120-26200iYH53,63199207

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26081iLH51,61,71,YH5#,6#,73..RHD198708-199207

main46103-26091iLH51,61,YH51,61..LHD198708-198908

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLH51,61,71,YH5#,6#,73..RHD198708-199207

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLH51,61,71,YH5#,6#,73..RHD198708-199207

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLH51,61,71,YH5#,6#,73198708-199207

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLH51,61,71,YH5#,6#,73198708-199206

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-26021iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-20007iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

main90506-23002iYH53,60,63..SA198808-199111

46311PAWL, PARKING BRAKE

main46311-26010iLH51,61,71,YH5#,6#,73..RHD198708-199207

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08106iLH51,61,71,YH5#,6#,73..RHD198708-199207

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26040iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

main46356-26060iYH53,60,63..SA198808-199111

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-26030iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

main46359-26050iYH53,60,63..SA198808-199111

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26210iLH51,61,71,YH5#,6#,73..RHD198708-199207

main46410-26230iLH51,61,YH51,61..LHD198708-198908

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-20004iLH51,61,71,YH5#,6#,73198708-199207

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26081iLH51,YH5#198708-198805

sub46420-26082

main46420-26082iLH51,YH5#..ARL,GEN198805-198908

main46420-26091iLH61,YH6#198708-198805

sub46420-26092

main46420-26092iLH61,YH61,63..ARL,GEN198805-198908

main46420-26100iLH71,YH73198708-198805

sub46420-26101

main46420-26101iLH71,YH73198805-198908

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08028iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

46441NUT, WIRE ADJUSTING, NO.1

main46441-30041iLH51,61,71,YH5#,61,63,73..ARL,GEN198708-198908

46458RETAINER, CABLE

main46458-28010iYH63..VSP;YH53,63..09S,15S198708-199111

46471PULLEY, WIRE

main46471-20010iLH51,61,71,YH5#,6#,73..RHD198708-199207

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLH51,61,71,YH5#,6#,73..RHD198708-199207

9020608016

main90206-08016

9046808001

main90468-08001

9161640612

main91616-40612

9161640818

main91616-40818

9165640620

main91656-40620

9165640818

main91656-40818

9165640825

main91656-40825

9538102018

main95381-02018

9538102520

main95381-02520

30 parts on this diagram · 3 diagrams in section
