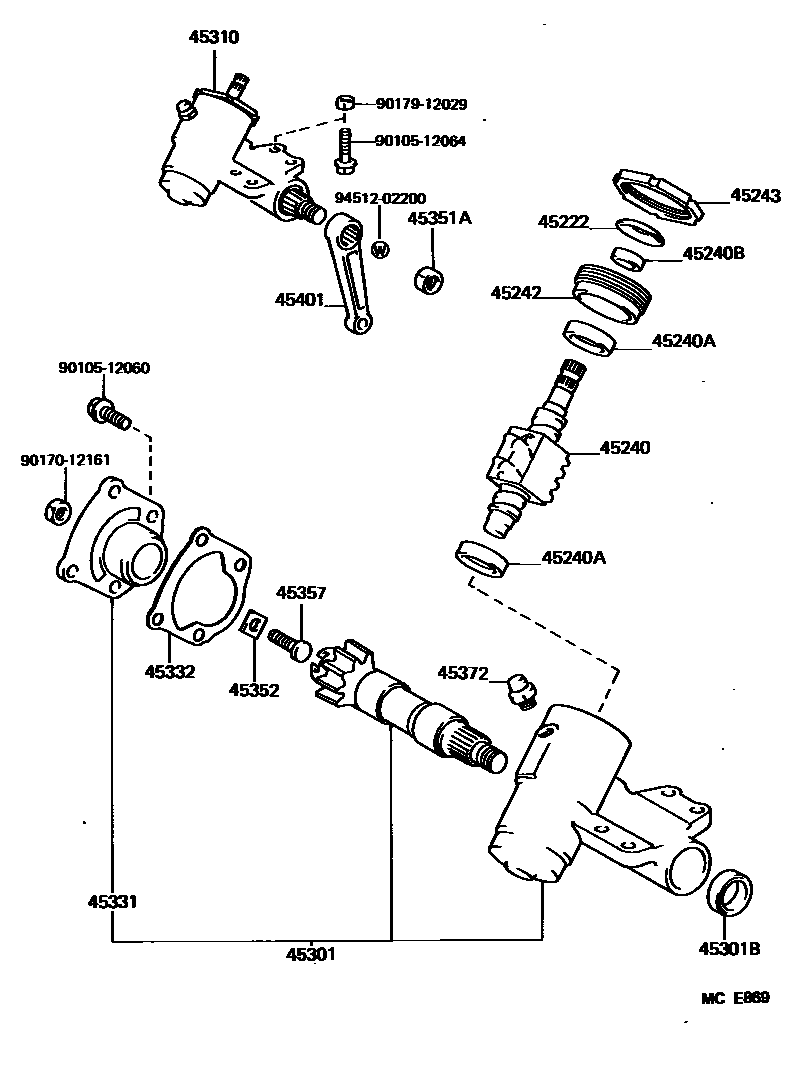

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1MANUAL STEERING 0006 1POWER STEERING 0007 1POWER STEERING 0008 1

45222COVER, STEERING GEAR DUST

main45222-26010iLH51,61,71,YH5#,6#,73..RHD198708-198808

main45222-27020iYH53,63199206

main45222-32010iYH53..GL199206-199610

W(POWER STEERING)

45240WORM ASSY, STEERING

main45240-36031iLH51,61,71,YH5#,6#,73..RHD198708-199206

main45240-36041iLH51,61,YH51,61..LHD198708-198908

45240ABEARING(FOR STEERING WORM)

main90363-20036×2iLH51,61,71,YH5#,6#,73..RHD198708-198808

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iLH51,61,71,YH5#,6#,73..RHD198708-198808

45242SCREW, WORM BEARING ADJUSTING

main45242-26010iLH51,61,71,YH5#,6#,73198808-199206

45243NUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-26010iLH51,61,71,YH5#,6#,73..RHD198708-198808

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-26031iLH51,61,71,YH5#,6#,73..RHD198708-199206

main45301-26041iLH51,61,YH51,61..LHD198708-198908

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90310-36002iLH51,61,71,YH5#,6#,73198708-198712

main90311-36004iLH51,61,71,YH5#,6#,73..RHD198712-198808

45310HOUSING ASSY, STEERING GEAR

main45310-26040iLH51,61,71,YH5#,6#,73..RHD198708-199206

main45310-26050iLH51,61,YH51,61..LHD198708-198908

45331COVER, SECTOR SHAFT END

main45304-26010iLH51,61,71,YH5#,6#,73198708-199206

NO.1

main45304-26020iLH51,61,71,YH5#,6#,73198708-199206

NO.2

main45304-26030iLH51,61,71,YH5#,6#,73198708-199206

NO.3

main45304-26040iLH51,61,71,YH5#,6#,73198708-199206

NO.4

45332GASKET, SECTOR SHAFT END COVER

main45332-26010iLH51,61,71,YH5#,6#,73198808-199206

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iLH51,61,71,YH5#,6#,73198708-199206

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iLH51,61,71,YH5#,6#,73198708-198712

T=1.95

main45353-37010iLH51,61,71,YH5#,6#,73198808-199206

T=2.00

main45354-37010iLH51,61,71,YH5#,6#,73198708-198712

T=2.05

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iLH51,61,71,YH5#,6#,73..RHD198708-198808

sub45357-37020

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iLH51,61,71,YH5#,6#,73..RHD198708-198808

45401ARM SUB-ASSY, PITMAN

main45411-26050iLH51,61,71,YH5#,6#,73..RHD198708-199206

main45411-26060iLH51,61,YH51,61..LHD198708-198908

9010512060

main90105-12060

9010512064

main90105-12064

9017012161

main90170-12161

9017912029

main90179-12029

9451202200

main94512-02200

21 parts on this diagram · 8 diagrams in section
