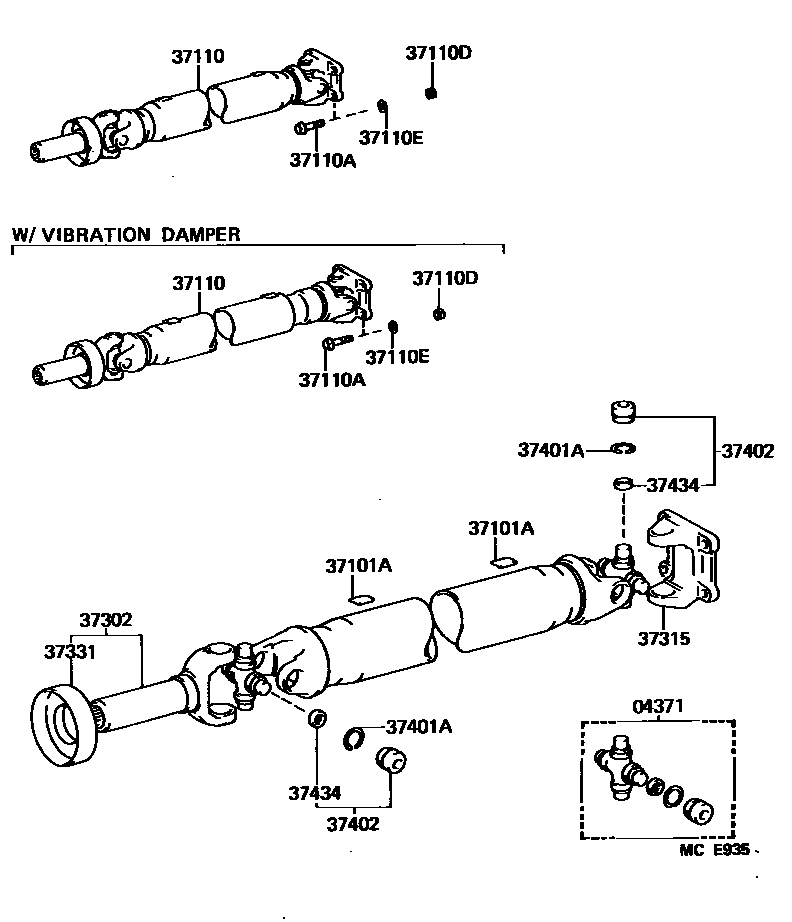

PROPELLER SHAFT & UNIVERSAL JOINT
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7
2G,T=2.0
4G,T=2.0
6G,L=12.4
8G,L=16.6
12G,L=24.9
14G,L=29.0
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
*10-1.00PX27-13
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
sub90560-10H00
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.29,MARK 1,T=2.29,MARK 1
T=2.31,MARK 2,T=2.31,MARK 2
T=2.33,NO MARK,T=2.33,NO MARK
T=2.35,BROWN,T=2.35,BR0WN
T=2.37,BLUE,T=2.37,BLUE
T=2.39,MARK 6,T=2.39,MARK 6
T=2.41,MARK 7,T=2.41,MARK 7
T=2.43,MARK 8,T=2.43,MARK 8
T=2.45,MARK 9,T=2.45
T=2.47,MARK 10,T=2.47,MARK 10
T=2.49,MARK A,T=2.49,MARK A
T=2.51,MARK B,T=2.51,MARK B
T=2.53,MARK C,T=2.53,MARK C
T=2.55,MARK D,T=2.55,MARK D
T=2.57,MARK E,T=2.57,MARK E
T=2.19,MARK D,T=2.19,MARK D
T=2.21,MARK E,T=2.21,MARK E
T=2.23,MARK F,T=2.23,MARK F
T=2.25,MARK G,T=2.25,MARK G
T=2.27,MARK H,T=2.27,MARK H
T=2.125,MARK 1
T=2.175,MARK 2
T=2.225,MARK 3
T=2.275,MARK 4
T=2.325,MARK 5
T=2.375,MARK 6
T=2.425,MARK 7
T=2.475,MARK 8
T=1.50,OD=32.4
T=1.55
T=1.60
T=2.375-2.425
T=2.425-2.475
T=2.475-2.525
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
RED PAINTED
37434SEAL, UNIVERSAL JOINT SPIDER BEARING
12 parts on this diagram · 1 diagram in section
