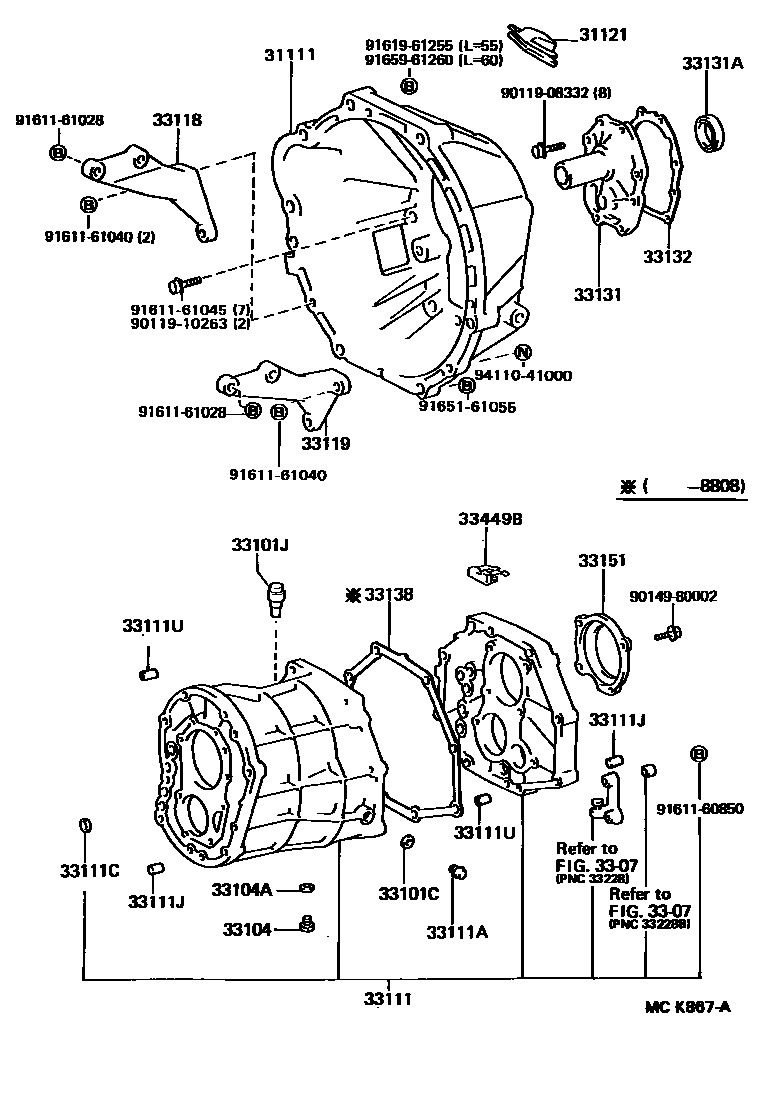

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G45,G53,G55 0002 1G55

31111HOUSING, CLUTCH

main31111-22111iLH51,61,71..5H198708-198808

sub31111-22112

main31111-22112iLH51,61,71..5H198808-198912

sub31111-22113

main31111-30190iYH63198708-199803

31121COVER, CLUTCH HOUSING, NO.1

main31121-30040iYH5#,6#,73..MTM198708-199309

sub31121-35020

main31121-35020iYH53,63199309-199803

3307

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLH51,61,71,YH5#,61..MTM..STD198708-199803

33101JPLUG, BREATHER

main90930-03085iLH51,61,71,YH5#,61..MTM..STD198708-199803

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iYH53,63199503-199803

main90341-18032iYH63200403

main90341-18057iLH51,61,71,YH5#,6#,73..MTM198708-200403

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLH51,61,71,YH5#,61..MTM..STD198708-199803

33111CASE, MANUAL TRANSMISSION

main33101-26900iLH51,61,71,YH5#,6#,73..MTM198708-198808

sub33101-28020

main33101-28020iLH51,61,71,YH5#,6#,73..MTM198808-199803

sub33101-35060

sub90341-18032

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLH51,61,71,YH5#,61..MTM..STD198708-199803

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLH51,61,71,YH5#,61..MTM..STD198708-199803

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLH51,61,71,YH5#,6#,73..MTM198708-199803

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLH51,61,71,YH5#,6#,73..MTM198708-199803

L=11,OD=11

main90253-15001iLH51,61,71,YH5#,6#,73..MTM198708-199803

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLH51,61,71..5H198708-198908

main33118-36031iYH5#,6#,73..MTM198708-199304

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLH51,61,71..5H198708-198908

main33119-36030iYH5#,6#,73..MTM198708-199304

33131RETAINER, BEARING, FRONT(MTM)

main33131-0K030iYH63200412

sub33131-26020

main33131-0W020iYH63199809-200412

main33131-26020iYH63198708-199809

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iYH53,63198808-199803

sub90311-30014

main90311-30014iYH63199803-200412

main90311-30115iLH51,61,71,YH5#,6#,73..MTM198708-198808

main90311-T0021iYH63200412

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLH51,61,71,YH5#,61..MTM..STD198708-200412

33138GASKET, INTERMEDIATE PLATE

main33138-28010iLH51,61,71,YH5#,6#,73..MTM198708-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-28010iLH51,61,71,YH5#,6#,73..MTM198708-198808

main33151-35030iLH51,61,71,YH5#,6#,73..MTM198808-199803

33449BMAGNET, TRANSMISSION

main33449-26010iYH53,6#..MTM198908-198910

9011908332

main90119-08332

9011910263

main90119-10263

9014980002

main90149-80002

9161160850

main91611-60850

9161161028

main91611-61028

9161161040

main91611-61040

9161161045

main91611-61045

9161961255

main91619-61255

9165161055

main91651-61055

9165961260

main91659-61260

9411041000

main94110-41000

31 parts on this diagram · 2 diagrams in section
