TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-28010iYH63199803

main04331-35101iYH53..GL;YH63..15S199206-199803

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-26440iLH51..RHD..03S..GEN198710-198808

G55,*FGR=39:8 & W(185R14 TIRE)

main33030-26441iLH51..RHD..03S..GEN198808-198811

G55,*FGR=39:8 & W(185R14 TIRE)

main33030-26915iYH53,63..5H..SA198808-198910

main33030-26920iYH61,63..5H..GEN198708-198908

main33030-26921iYH61..5H198708-198908

W(185R14 TIRE)

main33030-26922iLH51,61..COM198708-198908

G55

main33030-26923iLH61..RHD..15S198708-198710

G55,W(185R14 TIRE)

main33030-26927iLH51..RHD..03S..GEN198811-198908

*FGR=39:8 & W(185R14 TIRE)

main33030-26930iYH51,61,63..4H198708-198910

main33030-26931iYH51,61..LHD..V198708-198908

*FGR=41:9 & W(185R14 TIRE)

main33030-26933iYH53..GL;YH63..15S199206-199803

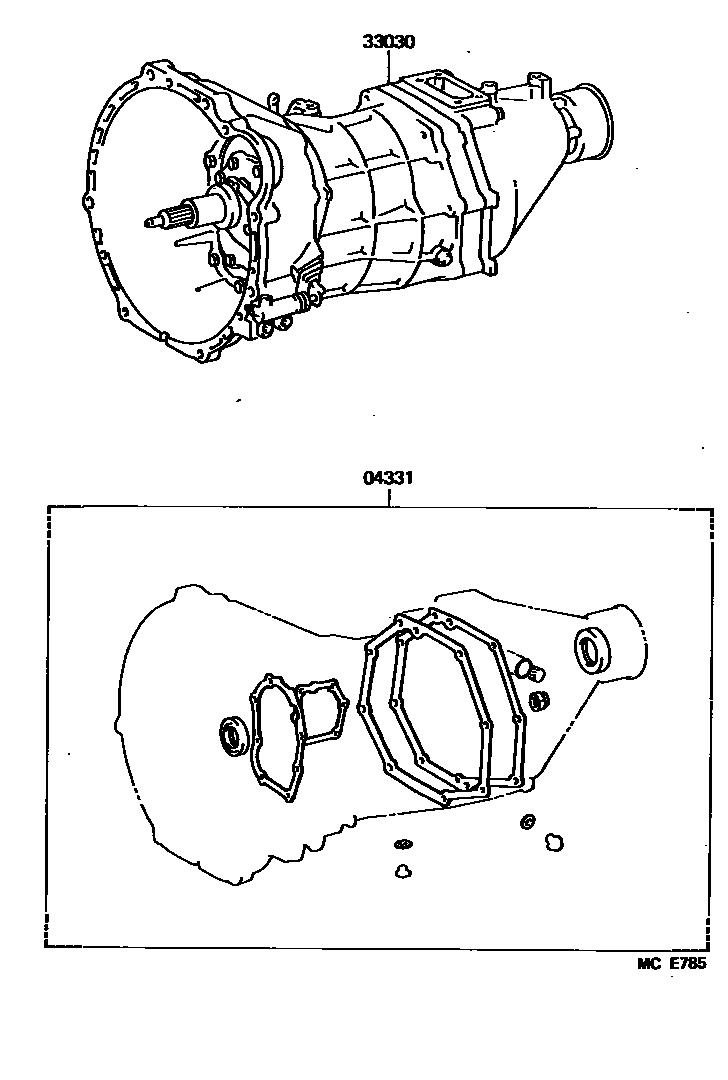

2 parts on this diagram · 1 diagram in section
