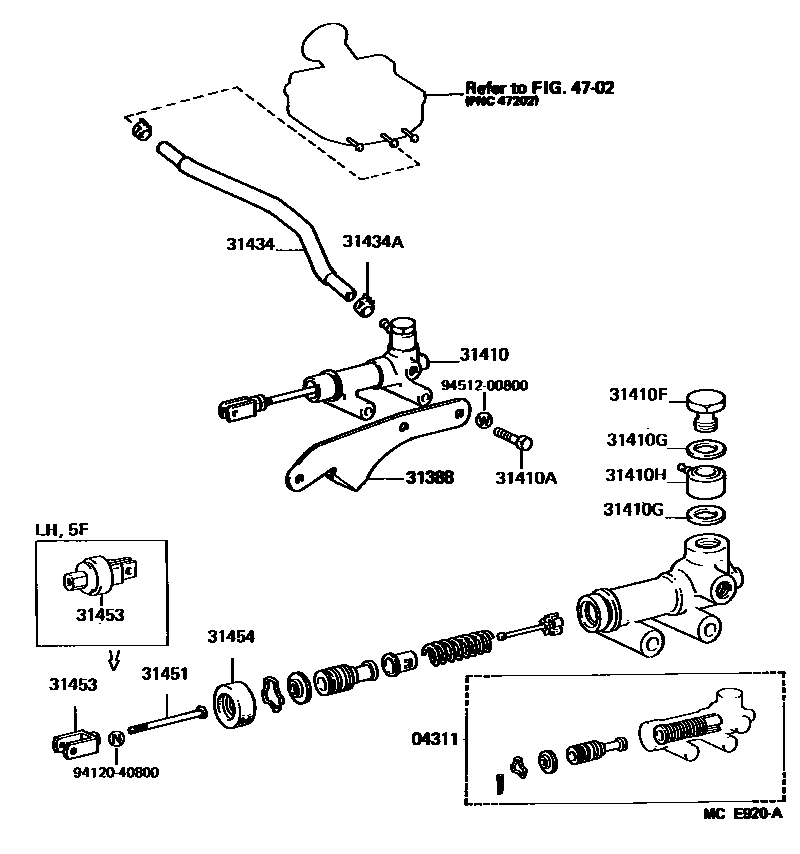

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14031iLH51,61,71,YH5#,6#,73..MTM198708-198802

sub04311-14032

main04311-14032iLH51,61,71,YH5#,6#,73..MTM198802-198808

sub04311-28010

main04311-28010iLH51,61,71,YH5#,6#,73..MTM198808-198811

sub04311-60080

main04311-60080iYH53,63198811-199610

31388SUPPORT, CLUTCH MASTER CYLINDER

main55105-95J00iLH51,61,71,YH5#,6#,73..MTM198708-199206

31410CYLINDER ASSY, CLUTCH MASTER

main31420-26091iYH5#,6#,73..MTM198708-198710

sub31420-26092

main31420-26092iYH53,63198710-199610

main31420-26102iLH51,61,71..5H198708-198710

sub31420-26103

main31420-26103iLH51,61,71..5H198710-198908

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iLH51,61,71,YH5#,6#,73..MTM198708-199610

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iLH51,61,71,YH5#,6#,73..MTM198708-199610

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iYH53,63198708-199610

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iLH51,61,71,YH5#,6#,73..MTM198708-199610

31434TUBE, CLUTCH RESERVOIR

main31434-26140iYH53,63198708-199610

main31434-26150iLH51,61,YH51,61..LHD198708-198908

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iLH51,61,71,YH5#,6#,73..MTM198708-199610

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iLH51,61,71..5H198708-198908

main31451-30120iYH5#,6#,73..MTM198708-199610

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30050iLH51,61,71..5H198708-198904

sub31404-30051

main31404-30051iLH51,61,71..5H198904-198908

main31453-35010iYH5#,6#,73..MTM198708-199610

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLH51,61,71,YH5#,6#,73..MTM198708-199610

4702

9412040800

main94120-40800

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
