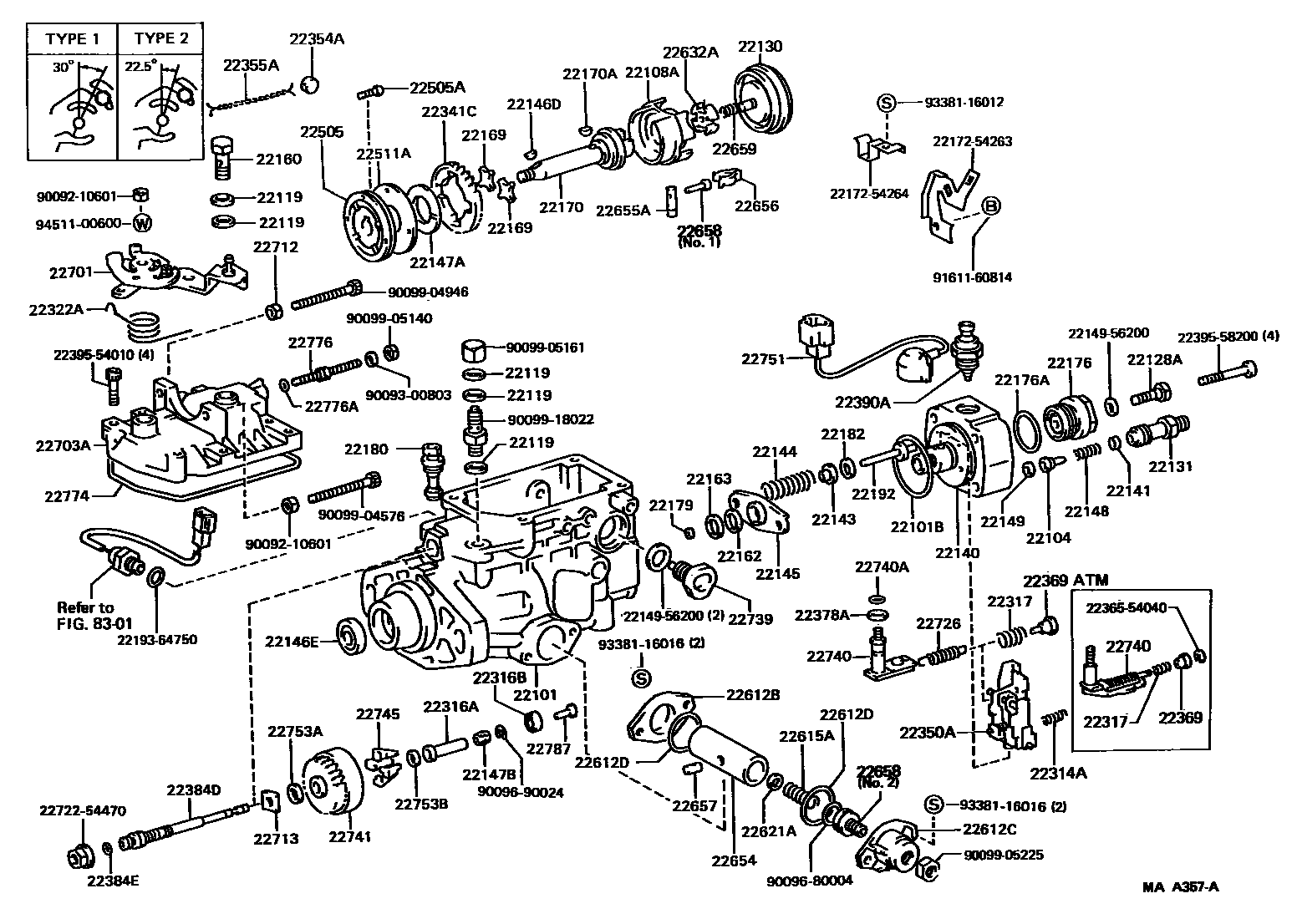

INJECTION PUMP BODY
22101HOUSING SUB-ASSY, INJECTION PUMP
HIGH ALTITUDE SPEC
HONGKONG SPEC
SINGAPORE SPEC OR MALAYSIA SPEC OR HONGKONG SPEC
MALAYSIA SPEC
sub22101-54770
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
HONGKONG SPEC
MALAYSIA SPEC
SINGAPORE SPEC OR MALAYSIA SPEC OR HONGKONG SPEC
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22141SEAT, DELIVERY VALVE SPRING
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
sub22193-54772
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22192GUIDE SUB-ASSY, PLUNGER SPRING
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
MARK 26
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22317SPRING, GOVERNOR DOMPER
K=0.2,L=6.5
22322ASPRING, RETURN
MALAYSIA SPEC
HONGKONG SPEC
SINGAPORE SPEC OR MALAYSIA SPEC OR HONGKONG SPEC
sub22322-54730
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22378AWASHER, GOVERNOR THRUST
HIGH ALTITUDE SPEC,NO.2
HIGH ALTITUDE SPEC,NO.1
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
sub22019-6A510
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
HIGH ALTITUDE OR SINGAPORE OR MALAYSIA OR HONG KONG SPEC
sub90099-14105
HIGH ALTITUDE SPEC
sub90099-14105
HIGH ALTITUDE OR MALAYSIA SPEC
sub90099-14105
sub90099-14105
HIGH ALTITUDE OR HONG KONG SPEC
sub90099-14105
22615ASPRING, TIMER OUTER
CW=7.1
K=3.00,L=37.3
K=3.30,L=37.1
22621AWASHER, TIMER ADJUSTING
T=0.5
T=0.5,SINGAPORE SPEC OR MALAYSIA SPEC OR HONGKONG SPEC
T=0.5,HONGKONG SPEC
T=0.5,MALAYSIA SPEC
22632ACOUPLING, INJECTION PUMP
22654PISTON, TIMER
HONGKONG SPEC
MALAYSIA SPEC
SINGAPORE SPEC OR MALAYSIA SPEC OR HONGKONG SPEC
22655APIN, TIMER SLIDE
22656CLIP, TIMER
sub22656-17840
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
22659SPRING, COUPLING
22701LEVER SUB-ASSY, ADJUSTING
TYPE 1
TYPE 2
22703ACOVER SUB-ASSY, GOVERNOR
HIGH ALTITUDE SPEC
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22726SPRING, SPEED CONTROL
MALAYSIA SPEC
HONGKONG SPEC
SINGAPORE SPEC OR MALAYSIA SPEC OR HONGKONG SPEC
CW=14.2
CW=15.5
CW=13.5
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
sub22193-54770
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
sub22753-54020
22774GASKET, GOVERNOR COVER
sub22774-54270
22776SCREW, SMOKE SET ADJUSTING
22776ARING, O(FOR SMOKE SET SCREW)
sub22193-54771
22787PLUG, GOVERNOR SLEEVE
L=3.3
L=3.4
L=3.5
L=3.6
L=3.7
L=3.8
L=3.9
L=4.0
8301
2214956200GASKET, DELIVERY VALVE
main22149-56200
2217254263CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54263
2217254264CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54264
2219364750RING, O(FOR LEVER CONNECTING PIN)
main22193-64750
2236554040RING, E(FOR INJECTION PUMP LEVER)
main22365-54040
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009210601
main90092-10601
9009300803
main90093-00803
9009680004
main90096-80004
9009690024
main90096-90024
9009904576
main90099-04576
9009904946
main90099-04946
9009905140
main90099-05140
9009905161
main90099-05161
9009905225
main90099-05225
9009918022
main90099-18022
9161160814
main91611-60814
9338116012
main93381-16012
9338116016
main93381-16016
9451100600
main94511-00600
100 parts on this diagram · 2 diagrams in section
