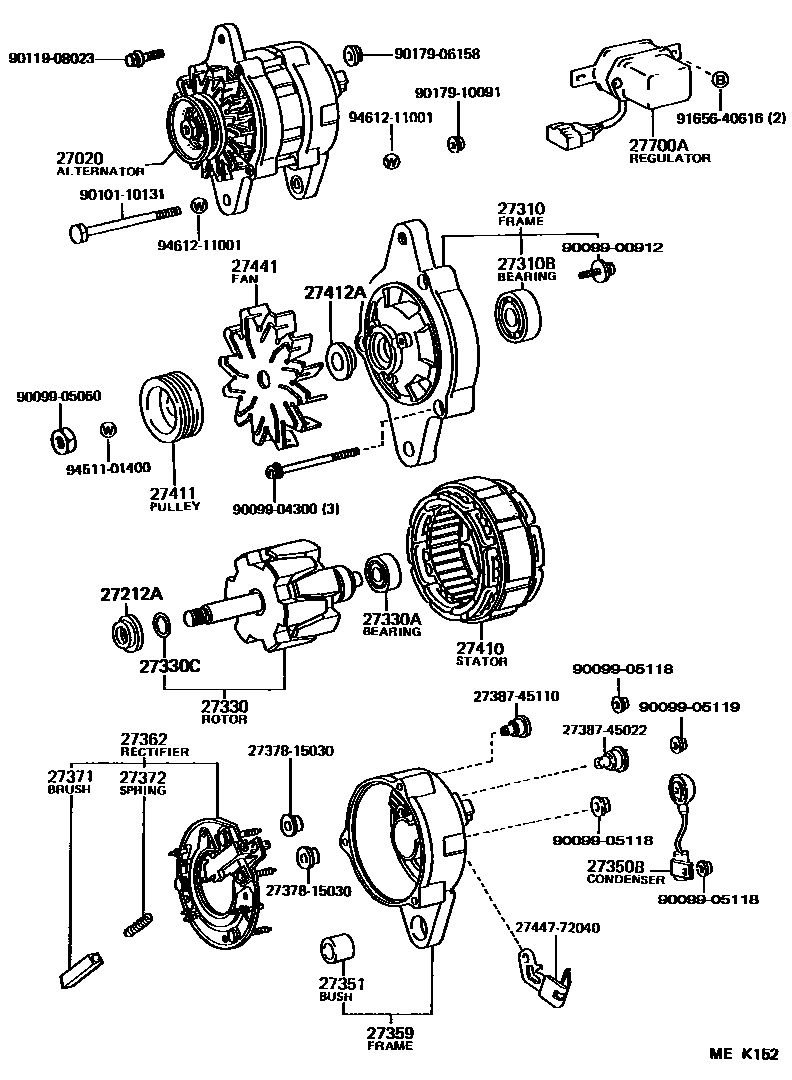

ALTERNATOR
27020ALTERNATOR ASSY
12V 55A
12V 45A
12V 55A
12V 40A
12V 45A
27310FRAME ASSY, DRIVE END, ALTERNATOR
sub27310-54111
THAILAND SPEC
W(DUAL AIR CONDITIONER)
SINGAPORE SPEC
SINGAPORE SPEC OR THAILAND SPEC
SINGAPORE SPEC OR THAILAND SPEC OR W(DUAL AIR CONDITIONER)
27330ROTOR ASSY, ALTERNATOR
SINGAPORE SPEC
W(DUAL AIR CONDITIONER)
THAILAND SPEC
THAILAND SPEC OR W(DUAL AIR CONDITIONER)
THAILAND SPEC
W(DUAL AIR CONDITIONER)
27330ABEARING(FOR ALTERNATOR ROTOR)
27330CRING, SNAP
27350FRAME ASSY, RECTIFIER END
W(DUAL AIR CONDITIONER)
THAILAND SPEC
27350BCONDENSER, ALTERNATOR
sub90099-52034
27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27359FRAME, ALTERNATOR RECTIFIER END
W(DUAL AIR CONDITIONER)
THAILAND SPEC
SINGAPORE SPEC
THAILAND SPEC OR SINGAPORE SPEC
THAILAND SPEC OR SINGAPORE SPEC OR W(AIR CONDITIONER)
27362RECTIFIER ASSY, W/BRUSH
SINGAPORE SPEC
THAILAND SPEC
THAILAND SPEC OR W(AIR CONDITIONER)
W(AIR CONDITIONER)
27372SPRING, ALTERNATOR BRUSH
27410STATOR ASSY, ALTERNATOR
SINGAPORE SPEC
THAILAND SPEC OR W(DUAL AIR CONDITIONER)
main27410-43040i4Y..YH63;4Y..YH53..5H..GL;4Y..YH53..4FC,4H,4HC,5F;2L,4Y..LH51,61,71,YH73..ARL198708-198908
W(DUAL AIR CONDITIONER)
THAILAND SPEC
sub27410-54380
27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
THAILAND SPEC,NO.2
SINGAPORE SPEC,NO.2
SINGAPORE SPEC OR THAILAND SPEC,NO.2
SINGAPORE SPEC OR THAILAND SPEC OR W(DUAL AIR CONDITIONER),NO.2
NO.2
W(DUAL AIR CONDITIONER),NO.2
SINGAPORE SPEC,NO.1
THAILAND SPEC,NO.1
SINGAPORE SPEC OR THAILAND SPEC,NO.1
SINGAPORE SPEC OR THAILAND SPEC OR W(DUAL AIR CONDITIONER),NO.1
NO.1
W(DUAL AIR CONDITIONER),NO.1
27441FAN, ALTERNATOR
SINGAPORE SPEC
SINGAPORE SPEC OR THAILAND SPEC
W(DUAL AIR CONDITIONER)
THAILAND SPEC
2737815030INSULATOR, ALTERNATOR, NO.1
main27378-15030
2738745022INSULATOR, TERMINAL
main27387-45022
2738745110INSULATOR, TERMINAL
main27387-45110
2744772040CLIP, ALTERNATOR CORD
main27447-72040
9009900912
main90099-00912
9009904300
main90099-04300
9009905060
main90099-05060
9009905118
main90099-05118
9009905119
main90099-05119
9010110131
main90101-10131
9011908023
main90119-08023
9017906158
main90179-06158
9017910091
main90179-10091
9165640616
main91656-40616
9451101400
main94511-01400
9461211001
main94612-11001
35 parts on this diagram · 4 diagrams in section
