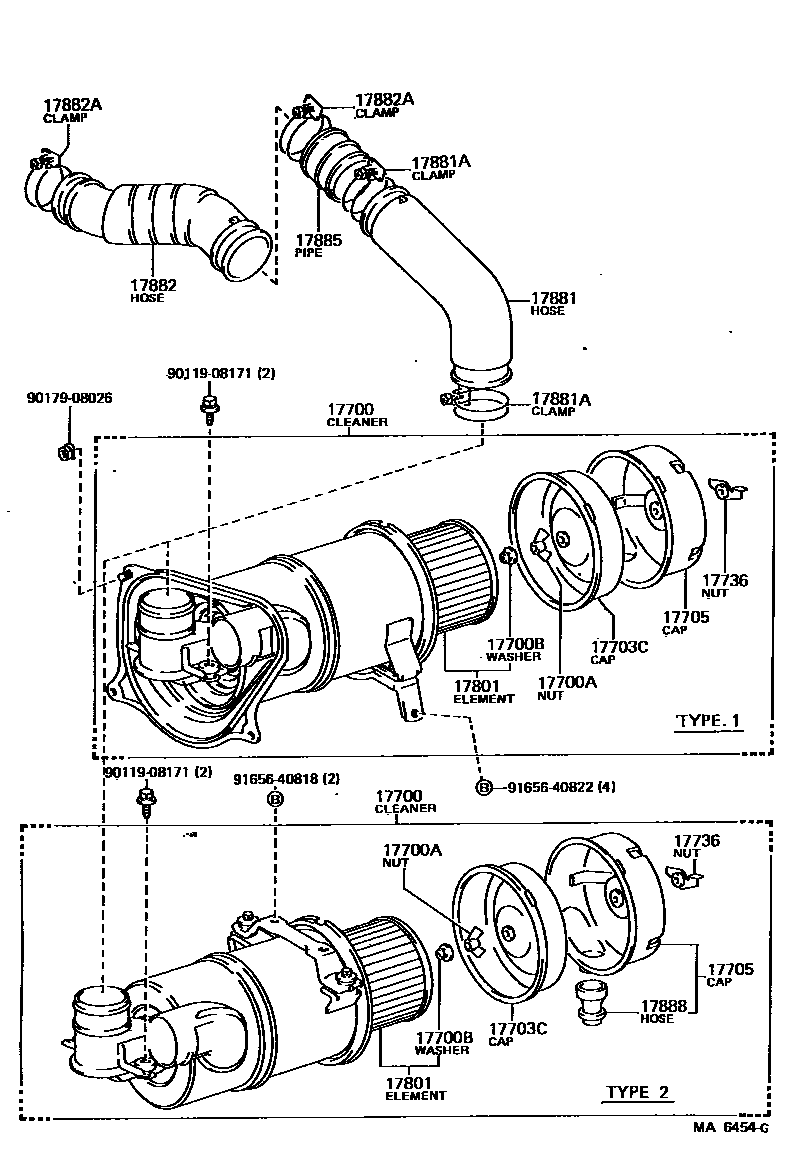

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-72030i3Y..YH51..RHD..06S198708-198908

CKD SPEC

main17700-72120i2L..LH51,61..LHD..(03S,12S,15S)198708-198908

main17700-73120i2L..LH61..V5D;2L..LH51,61,71..RHD198708-199303

17700ANUT, WING(FOR AIR CLEANER)

main94271-00800i2L..LH51,61,71198708-199303

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08024i2L..LH51,61,71198708-199303

17703CCAP SUB-ASSY, DUST

main17703-64010i2L..LH51,61,71198708-199303

17705CAP SUB-ASSY, AIR CLEANER

main17705-72020i3Y..YH51..RHD..06S198708-198908

CKD SPEC

main17705-72060i2L..LH51,61..LHD..(03S,12S,15S)198708-198908

main17705-73050i2L..LH61..V5D;2L..LH51,61,71..RHD198708-199303

17736NUT, AIR CLEANER CASE

main90175-06003i2L..LH51,61,71198708-199303

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64030i2L..LH51,61,71198708-199303

main17801-72010i3Y..YH51..RHD..06S198708-198908

CKD SPEC

17881HOSE, AIR CLEANER, NO.1

main17881-54170i2L..LH51,61,71198708-198908

main17881-72010i4Y..YH53,63198708-199303

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10780i2L..LH51,61,71198708-199303

17882HOSE, AIR CLEANER, NO.2

main17882-54120i2L..LH51,61,71198708-198908

main17882-72040i4Y..YH63..GEN198708-198908

SINGAPORE SPEC

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-47036i4Y..YH63..GEN198708-198908

SINGAPORE SPEC

main96111-10690i2L..LH51,61,71198708-198908

INTAKE MANIFOLD SIDE

main96111-10780i2L..LH51,61,71198708-198908

PIPE SIDE

17885PIPE, AIR CLEANER

main17885-54080i2L..LH51,61,71198708-198908

17888HOSE, AIR CLEANER DUST DRAIN

main17888-73010i2L..LH61..V5D;2L..LH51,61,71..RHD198708-199303

9011908171

main90119-08171

9017908026

main90179-08026

9165640818

main91656-40818

9165640822

main91656-40822

17 parts on this diagram · 4 diagrams in section
