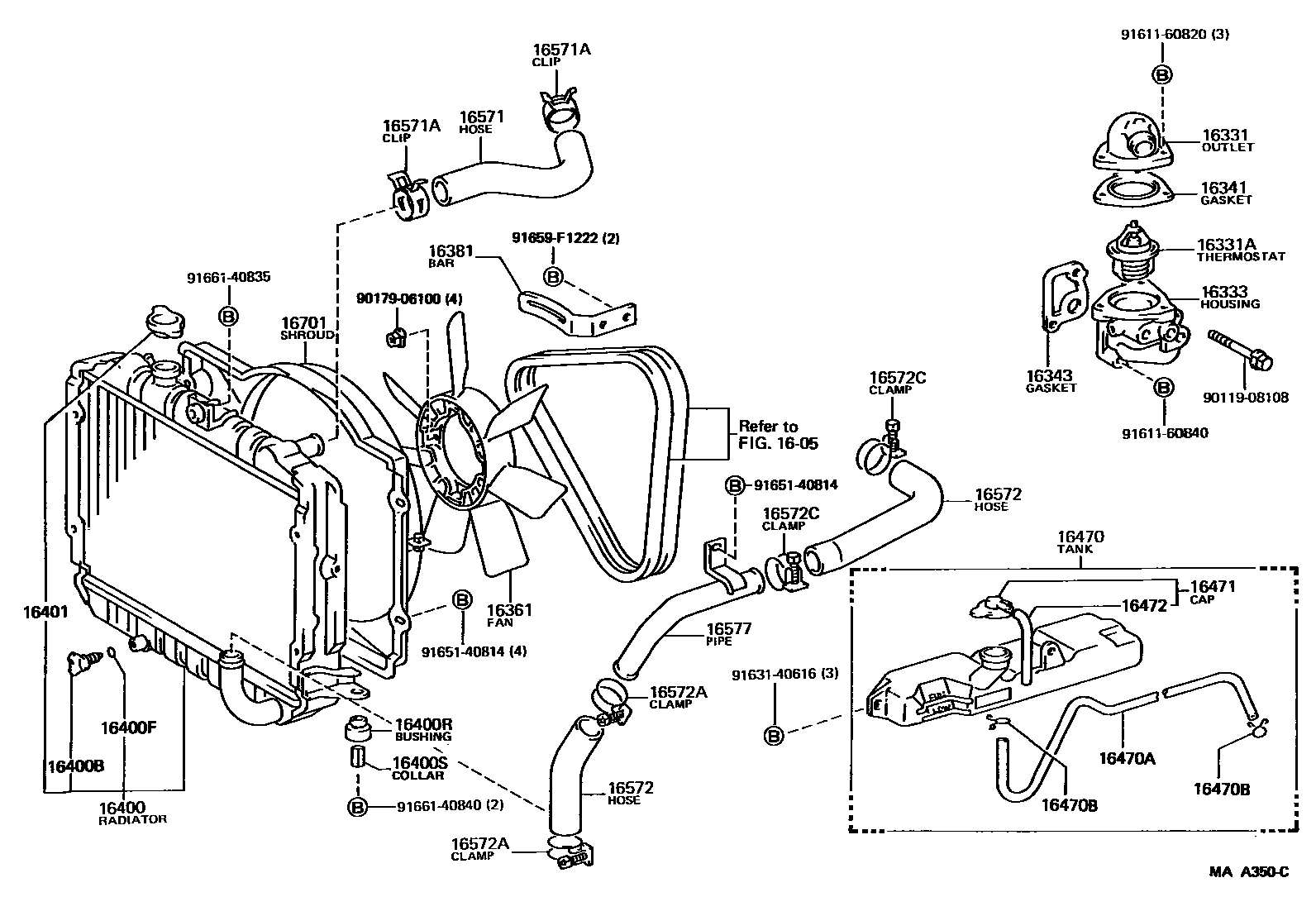

RADIATOR & WATER OUTLET

0001 1 0002 1

1605

16331OUTLET, WATER

main16331-54030i2L..LH51,61,71198708-198908

main16331-54040i2L..LH71198708-198908

W(COOLER)

main16331-71010i2Y,3Y,4Y..YH5#,6#,73198708-199610

16331ATHERMOSTAT

main90916-03046i2Y,4Y..YH53,6#199201

*WAX 82-95

main90916-03062i2L..LH51,61,71198708-198805

*WAX 88-100

sub90916-03072

main90916-03069i2Y,3Y,4Y..YH5#,6#,73198708-199201

*WAX 82-95

sub90916-03046

main90916-03072i2L..LH51,61,71198805-198808

*WAX 88-100

sub90916-03099

main90916-03099i2L..LH51,61,71198808-199303

*WAX 88-100

main90916-03099i2L..LH71198805-198808

*WAX 88-100,W(AIR CONDITIONER)...MAKER OPTION

main90916-03099i2L..LH71198805-198808

*WAX 88-100,W(AIR CONDITIONER)...DEALER OPTION

16333HOUSING, WATER OUTLET

main16333-54050i2L..LH51,61,71198708-198908

16341GASKET, WATER OUTLET

main16341-54011i2L..LH51,61,71198708-198808

sub16341-54030

main16341-54030i2L..LH51,61,71198808-199110

sub16341-54040

main16341-71010i2Y,3Y,4Y..YH5#,6#,73198708-198912

sub16341-71011

main16341-71011i2Y,4Y..YH53,6#198912-199610

16343GASKET, WATER OUTLET HOUSING

main16343-54011i2L..LH51,61,71198708-198912

sub16343-54021

16361FAN

main16361-38010i2Y,4Y..YH53,60,63,73198708

main16361-38010i3Y..YH61..RHD..15S;3Y..YH51..RHD..(03S,12S)198808-198908

SINGAPORE SPEC

main16361-44032i3Y..YH51,61198708-198908

main16361-54020i2L..LH51,61,71198708-198908

16381BAR, FAN BELT ADJUSTING

main16381-54011i2L..LH51,61,71198708-198908

main16381-71010i2Y,3Y,4Y..YH5#,6#,73198708-199610

16400RADIATOR ASSY

main16400-54280i2L..LH51,61,71..5H198708-198908

main16400-54370i2L..LH51,61..4HC198708-198908

main16400-72040i3Y..YH61..RHD..4H..15S;3Y..YH51..RHD..(03S,12S)198708-198908

SINGAPORE SPEC

main16400-72050i4Y..YH53,63198708-199303

main16400-72060i3Y,4Y..YH53,61,63..4HC..(GEN,SA)198708-199206

sub16400-73300

main16400-73210i3Y..YH61..4HC198708-198908

SINGAPORE SPEC

sub16400-73300

main16400-73300i4Y..YH53,63..ATM..ARL198708-198908

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i2Y,3Y,4Y..YH5#,6#,73198708-199206

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i2L..LH51,61,71198708-199206

16400RBUSHING(FOR RADIATOR)

main90540-10019i4Y..YH53,63198708-199206

16400SCOLLAR(FOR RADIATOR)

main90440-11042i2L..LH51,61,71198708-199206

16401CAP SUB-ASSY, RADIATOR

main16401-54750i4Y..YH63200011

main16401-71010i2L..LH51,61,71198708-200011

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-54040i4Y..YH53,63..STD198708-199303

main16470-54130i4Y..YH63,73..ARL;4Y..YH53..5H..GL;4Y..YH53..4FC,4H,4HC,5F198708-199610

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i4Y..YH63,73..ARL;4Y..YH53..5H..GL;4Y..YH53..4FC,4H,4HC,5F198708-199303

L=1000

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2Y,3Y,4Y..YH5#,6#,73198708-199303

16471CAP SUB-ASSY, RESERVE TANK

main16405-54050i2Y,3Y,4Y..YH5#,6#,73198708-199303

16472HOSE, BREATHER

main90445-12078i2L..LH51,61,71198708-199610

L=600

16571HOSE, RADIATOR, INLET

main16571-54120i2L..LH51,61,71198708-198908

main16571-72020i4Y..YH53,63198708-199303

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2L..LH51,61,71198708-199303

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-54090i2L..LH51,61,71198708-198908

WATER PUMP SIDE

main16572-72020i2Y,3Y,4Y..YH5#,6#,73198708-199303

WATER PUMP SIDE

main16573-54030i2Y,3Y,4Y..YH5#,6#,73198708-199303

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i2L..LH51,61,71198708-199303

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90460-47036i2L..LH51,61,71198708-198908

PIPE SIDE

main96111-10440i2Y,3Y,4Y..YH5#,6#,73198708-199303

main96111-10500i2L..LH51,61,71198708-198908

WATER PUMP SIDE

16577PIPE, RADIATOR, NO.7

main16577-54060i2L..LH51,61,71198708-198908

main16577-72010i4Y..YH53,63198708-199303

16701SHROUD SUB-ASSY, FAN

main16701-54100i2L..LH51,61,71198708-198908

main16701-72010i2Y,3Y,4Y..YH5#,6#,73198708-199303

9011908108

main90119-08108

9017906100

main90179-06100

9161160820

main91611-60820

9161160840

main91611-60840

9163140616

main91631-40616

9165140814

main91651-40814

91659F1222

main91659-F1222

9166140835

main91661-40835

9166140840

main91661-40840
