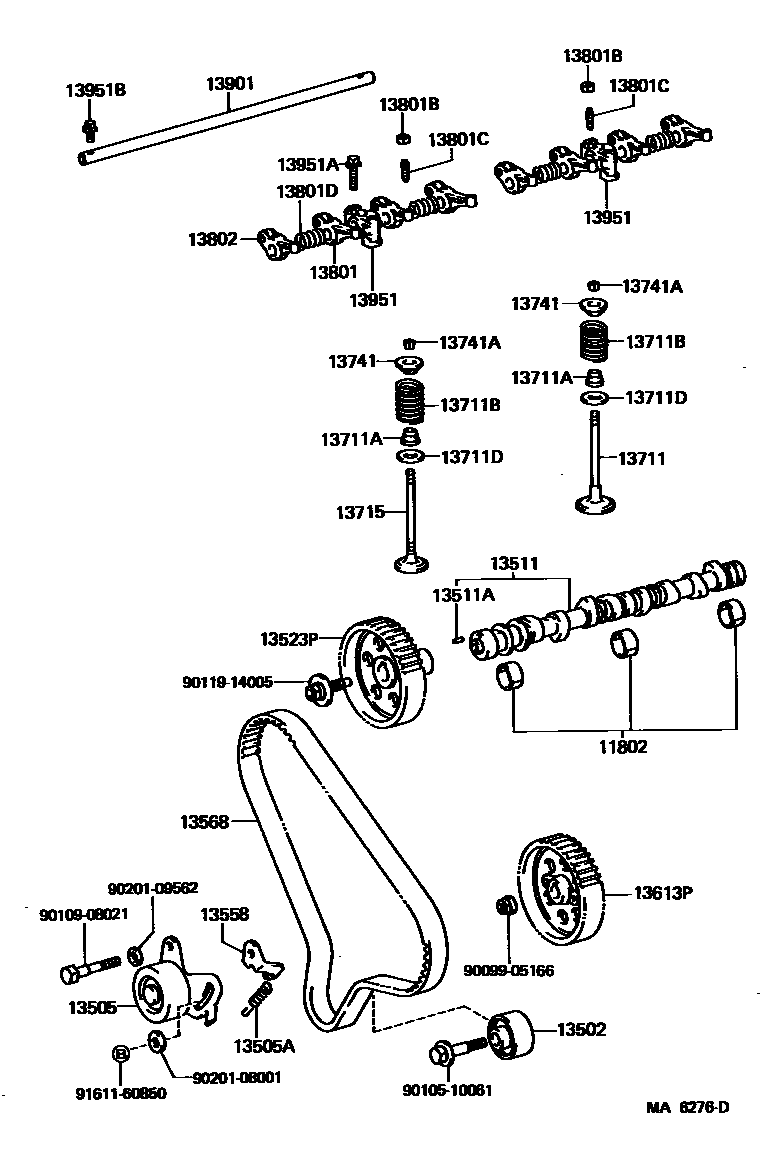

CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11802-54010i2L..LH51,61,71198708-198912

STD

main11802-71010i4Y..YH53,63,73198708-198808

STD

sub11802-73010

main11803-54010i2L..LH51,61,71198708-198912

U/S 0.125

main11804-54010i2L..LH51,61,71198708-198912

U/S 0.25

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-54020i2L..LH51,61,71198708-198908

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54010i2L..LH51,61,71198708-198908

13505ASPRING, TENSION(FOR IDLER)

main90506-14038i2L..LH51,61,71198708-198908

13511CAMSHAFT

main13501-54020i2L..LH51,61,71198708-198908

main13511-71901i3Y..YH51,61198808-198908

main13511-73902i2Y,4Y..YH53,60,63,73198708

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i2L..LH51,61,71198708-198908

L=15,OD=5

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i4Y..YH53,63,73198708-198808

13523PPULLEY, CAMSHAFT TIMING

main13523-54020i2L..LH51,61,71198708-198908

13558BRACKET, SPRING(FOR IDLER)

main13558-54010i2L..LH51,61,71198708-198908

13568BELT, TIMING

main13568-59025i2L..LH51,61,71198708-199203

sub13568-59026

13613PPULLEY, INJECTION PUMP DRIVE

main13603-54020i2L..LH51,61,71198708-198908

13711VALVE, INTAKE

main13711-54010i2L..LH51,61,71198708-198908

main13711-71010i2Y,3Y,4Y..YH5#,6#,73198708

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02060i2L..LH51,61,71198708-199004

sub90913-02059

main90913-02073i2Y,3Y,4Y..YH5#,6#,73198708-198905

sub90913-02080

main90913-02080i2Y,3Y,4Y..YH5#,6#,73198905-199209

sub90913-02098

main90913-02094i4Y..YH53,63199609

main90913-02098i4Y..YH53,63199209-199609

sub90913-02094

13711BSPRING, COMPRESSION(FOR INNER)

main90501-44002i2L..LH51,61,71198708-199004

main90501-46001i2Y,4Y..YH53,6#198908

main90501-47005i2Y,3Y,4Y..YH5#,6#,73198708-198908

sub90501-46001

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-20579i2L..LH51,61,71198708-198908

main90201-21002i2Y,3Y,4Y..YH5#,6#,73198708

13715VALVE, EXHAUST

main13715-54010i2L..LH51,61,71198708-198908

main13715-71010i2Y,3Y,4Y..YH5#,6#,73198708

13741RETAINER, VALVE SPRING

main13740-43010i2Y,3Y,4Y..YH5#,6#,73198708

EXHAUST SIDE

main13741-54010i2L..LH51,61,71198708-198908

main13741-63010i2Y,3Y,4Y..YH5#,6#,73198708

INTAKE SIDE

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i2Y,3Y,4Y..YH5#,6#,73198708

main90913-03016i2L..LH51,61,71198708-198908

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-54021i2L..LH51,61,71198710-198908

main13811-71010i2Y,3Y,4Y..YH5#,6#,73198708

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08005i2L..LH51,61,71198708-198908

13801CSCREW, VALVE ADJUSTING

main90913-05019i2L..LH51,61,71198708-198908

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16068i2Y,3Y,4Y..YH5#,6#,73198708

main90501-16163i2L..LH51,61,71198708-198908

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13802-54021i2L..LH51,61,71198710-198908

main13812-71010i2Y,3Y,4Y..YH5#,6#,73198708

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-54010i2L..LH51,61,71198708-198908

main13901-71010i2Y,3Y,4Y..YH5#,6#,73198708

13951SUPPORT, VALVE ROCKER, NO.1

main13951-54020i2L..LH51,61,71198708-198908

13951ABOLT(FOR ROCKER SUPPORT SET)

main90119-08191i2L..LH51,61,71198708-198908

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main91611-60620i2L..LH51,61,71198708-198908

9009905166

main90099-05166

9010510061

main90105-10061

9010908021

main90109-08021

9011914005

main90119-14005

9020108001

main90201-08001

9020109562

main90201-09562

9161160850

main91611-60850
