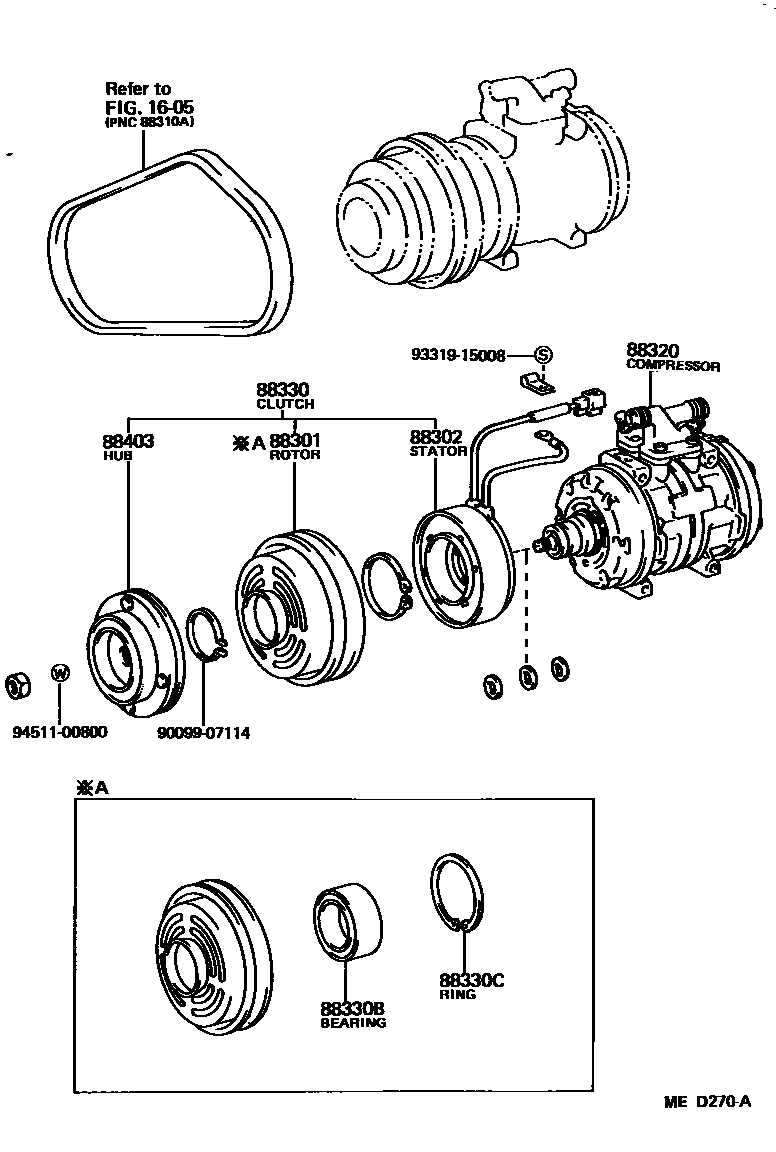

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iYH51..V..4H..(ARL,GEN);YH50,53,60,61,63..V..STD..(ARL,GEN)198212-198708

main88412-26020iYH51,53..05S198212-198708

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH71198212-198708

main88411-30370iYH50,51,60,61..COM..GEN198212-198708

sub88411-26030

main88411-30380iYH51..V..4H..(ARL,GEN);YH50,53,60,61,63..V..STD..(ARL,GEN)198212-198708

88320COMPRESSOR ASSY, COOLER

main88320-26120iLH71198212-198708

main88320-26140iYH50,60..COM..GEN198212-198310

main88320-26141iYH7#198310-198708

sub88320-26142

main88320-26160iYH50,6#..V..(ARL,GEN)198212-198310

main88320-26161iYH51..V..4H..(ARL,GEN);YH50,53,60,61,63..V..STD..(ARL,GEN)198310-198708

sub88320-26162

88330CLUTCH ASSY, MAGNET

main88410-22080iLH50,51,60,61..ARL,GEN198212-198708

sub88410-60140

main88410-26040iYH51,53..05S198212-198708

sub88410-26070

main88410-30380iYH51..V..4H..(ARL,GEN);YH50,53,60,61,63..V..STD..(ARL,GEN)198212-198708

88330BBEARING, MAGNET CLUTCH

main90099-10133iYH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,YH50,53,60,61,63..ARL,GEN198212-198708

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iLH71,YH7#198212-198708

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iYH51..V..4H..(ARL,GEN);YH50,53,60,61,63..V..STD..(ARL,GEN)198212-198708

sub88403-12030

main88403-30280iYH7#198212-198708

9009907114

main90099-07114

9331915008

main93319-15008

9451100800

main94511-00800

11 parts on this diagram · 3 diagrams in section
