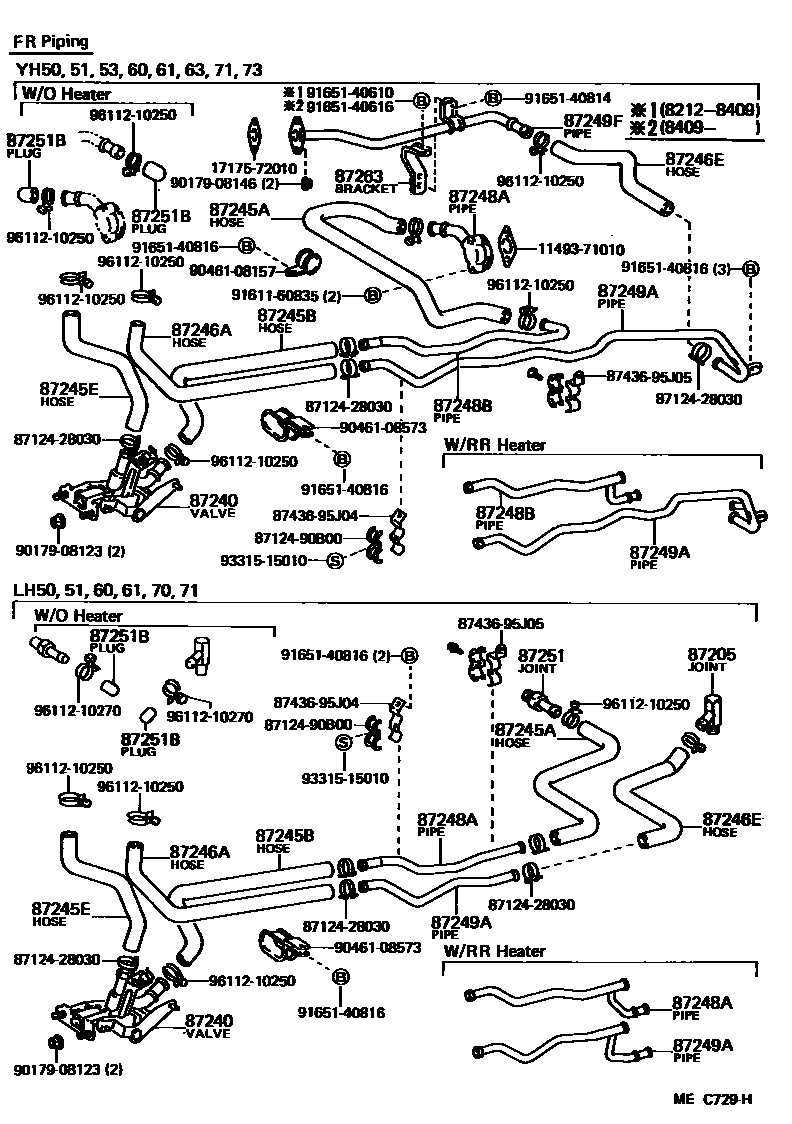

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30230iLH5#,6#,7#198212-198708

87240VALVE ASSY, HEATER WATER

main87240-95J02iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..RHD198212-198807

main87240-95J03iLH5#,6#,YH50,51,56,60,61,66..LHD198212-198708

87245AHOSE, HEATER WATER, INLET A

main87245-95J10iYH50,51,53,60,61,63,7#198212-198807

main87245-95J11iLH50,51,60,61,7#198212-198708

main87245-95J32iLH56,66198608-198708

main87245-95J33iYH56,66198612-198708

87245BHOSE, HEATER WATER, INLET B

main87245-95J08iLH5#,6#,7#,YH5#,6#,71..RHD198212-198512

main87245-95J09iLH50,51,60,61,YH50,51,60,61..LHD198212-198708

main87245-95J27iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198512-198807

main99556-30300iLH56,66198608-198708

*H,L=280

main99556-30600iYH56,66198612-198708

*H,L=540

sub99556-30700

87245EHOSE, HEATER WATER, INLET E

main87245-95J04iLH5#,6#,7#,YH5#,6#,7#198212-198807

87246AHOSE, HEATER WATER, OUTLET A

main87245-95J06iLH5#,6#,7#,YH5#,6#,71..RHD198212-198512

main87245-95J07iLH50,51,60,61,YH50,51,60,61..LHD198212-198708

main87245-95J30iLH56,66,YH56,66198512-198807

87246EHOSE, HEATER WATER, OUTLET E

main87245-95J12iYH50,51,53,60,61,63,7#198212-198807

main87245-95J13iLH50,51,60,61,7#198212-198708

main87245-95J31iLH56,66198608-198708

main87245-95J34iYH56,66198612-198708

87248APIPE, HEATER WATER INLET, A

main87208-28010iYH5#,6#,7#198212-198807

main87248-95J14iLH51,61..LHD198212-198708

main87248-95J15iLH5#,6#..COM198212-198708

W/RR HEATER

main87248-95J58iLH51,61..RHD..COM198512-198708

W/RR HEATER

main87248-95J62iLH51,61,71..RHD198512-198708

87248BPIPE, HEATER WATER INLET, B

main87248-14090iYH56,66198612-198708

main87248-95J12iYH50,51,60,61..LHD198512-198708

main87248-95J13iYH50,51,60,61..LHD..COM198212-198708

W/RR HEATER

main87248-95J20iLH6#..M1198212-198508

sub87248-95J53

main87248-95J53iLH51,61..M1198508-198601

main87248-95J56iYH50,51,60,61..RHD..COM..(EUR,GEN)198512-198708

W/RR HEATER

main87248-95J60iYH50,51,53,60,61,63,7#..RHD198512-198807

main87248-95J66iLH51,61..M1198601-198708

87249APIPE, HEATER WATER OUTLET, A

main87248-95J08iYH5#,6#,71198212-198708

main87248-95J10iLH5#,6#,7#198212-198708

main87248-95J11iLH5#,6#..COM198212-198508

W/RR HEATER

main87248-95J50iYH50,60..COM198212-198708

W/RR HEATER

main87248-95J51iLH51,61..COM198508-198708

W/RR HEATER

main87248-95J55iYH50,51,60,61..RHD..COM..(EUR,GEN)198512-198708

W/RR HEATER

main87248-95J57iLH51,61..RHD..COM198512-198708

W/RR HEATER

main87248-95J59iYH50,51,53,60,61,63,7#..RHD198512-198807

main87248-95J61iLH51,61,71..RHD198512-198708

87249FPIPE, HEATER WATER OUTLET, F

main87208-28020iYH5#,6#,71198212-198502

main87208-28021iYH5#,6#,7#198502-198807

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30200iLH5#,6#,7#198212-198708

87251BPLUG, HEATER WATER

main90339-16007iYH50..RHD..VSP..GEN;YH50..RHD..12S..GEN;YH60..RHD..(03S,15S)198212-198708

sub90339-16001

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-28010iYH5#,6#,71198212-198409

sub87263-28011

sub91651-40616

main87263-28011iYH5#,6#,7#198409-198807

1149371010GASKET, WATER SEAL PLATE

main11493-71010

1717572010GASKET, INTAKE MANIFOLD INLET

main17175-72010

8712428030CLAMP, HEATER

main87124-28030

8712490B00CLAMP, HEATER

main87124-90B00

8743695J04

main87436-95J04

8743695J05

main87436-95J05

9017908123

main90179-08123

9017908146

main90179-08146

9046108157

main90461-08157

9046108573

main90461-08573

9161160835

main91611-60835

9165140610

main91651-40610

9165140616

main91651-40616

9165140814

main91651-40814

9165140816

main91651-40816

9331515010

main93315-15010

9611210250

main96112-10250

9611210270

main96112-10270

32 parts on this diagram · 10 diagrams in section
