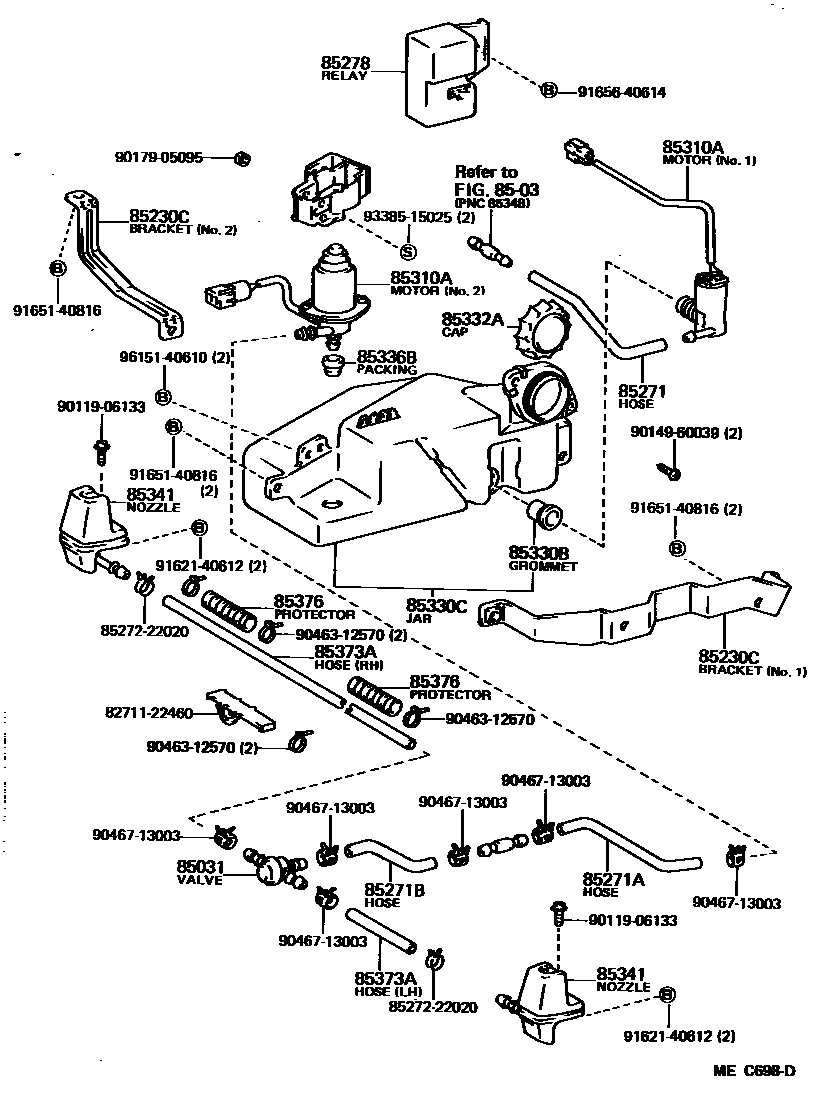

HEADLAMP CLEANER

8503

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-12010iYH61..V5D..5H..R;LH61,YH61..V5D..4HC198608-198708

85230CBRACKET ASSY, HEADLAMP CLEANER

main85361-95J01iLH5#..LHD..VSP..5H..N1;YH50..LHD..VSP..4H..N1198212-198508

NO.1

main85362-95J00iYH61..V5D..5H..R;LH61,YH61..V5D..4HC198608-198708

NO.2

85271HOSE, HEADLAMP CLEANER, NO.1

main90446-06013iLH5#..LHD..VSP..5H..N1;YH50..LHD..VSP..4H..N1198212-198508

L=1800(*H,L=430)

85271AHOSE, HEADLAMP CLEANER, NO.2

main90445-14060iYH6#..V5D..4H..N1198212-198508

L=115

85271BHOSE, HEADLAMP CLEANER, NO.3

main90445-14059iYH6#..V5D..4H..N1198212-198508

L=190

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-22020iYH6#..V5D..4H..N1198212-198508

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-10090iLH5#..LHD..VSP..5H..N1;YH50..LHD..VSP..4H..N1198212-198508

NO.2

main85310-95J00iYH61..V5D..5H..N1198403-198508

NO.1

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iYH6#..V5D..4H..N1198212-198508

85330CJAR ASSY, HEADLAMP CLEANER WASHER

main85331-95J00iYH6#..V5D..4H..N1198212-198508

main85331-95J01iYH61..V5D..5H..R;LH61,YH61..V5D..4HC198608-198708

85332ACAP, HEADLAMP CLEANER WASHER JAR

main85332-95J01iYH6#..V5D..4H..N1198212-198508

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iYH61..U;YH61..V5D..N1;LH61..LHD..N1;YH61..V4D..VSP..5H..N1;LH51,YH5#..LHD..VSP..N1198508-198608

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-95J02×2iYH61..U198608-198708

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14055iYH51..LHD..4H..N1;YH61..V5D..MTM..03S..N1;LH51,6#..LHD..VSP..MTM..N1198608-198708

L=60,LH

sub85375-50020

main90445-14072iYH61..U;YH61..V5D..N1;LH61..LHD..N1;YH61..V4D..VSP..5H..N1;LH51,YH5#..LHD..VSP..N1198508-198608

L=1150,RH

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85376-12090×2iYH61..V5D..5H..R;LH61,YH61..V5D..4HC198608-198708

8271122460WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22460

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9011906133

main90119-06133

9014960039

main90149-60039

9017905095

main90179-05095

9046312570

main90463-12570

9046713003

main90467-13003

9162140612

main91621-40612

9165140816

main91651-40816

9165640614

main91656-40614

9338515025

main93385-15025

9615140610

main96151-40610

27 parts on this diagram · 1 diagram in section
