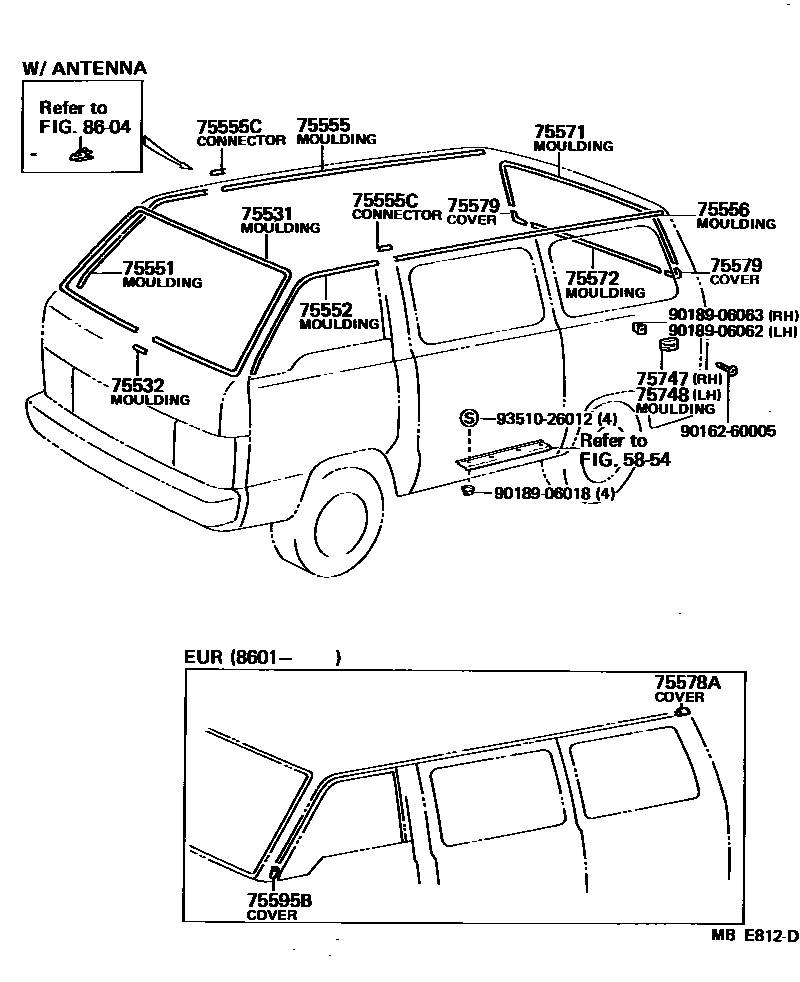

MOULDING

0001 1 0002 1

5854

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-95J00iYH51..4HC..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR,GEN);LH50,51,60,61,7#,YH50,53,56,6#,7#..ARL,EUR,GEN¥2,100198212-198807

75532MOULDING, WINDSHIELD, LOWER

main75532-95J00iYH51,53..GL..SA¥670198212-198807

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-95J00iYH51¥2,550198212-198807

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-95J00iYH51¥2,550198212-198807

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-90C00iLH7#,YH7#¥4,490198212-198708

main75553-95J00iLH5#,YH50,53,56..ARL,EUR,GEN;YH51..4HC..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR,GEN)¥3,400198212-198807

sub75553-95J01¥3,480

main75553-95J01iLH6#,YH60,61,66..ARL,EUR,GEN¥3,480198212-198708

75555CCONNECTOR, ROOF DRIP MOULDING

main75555-95J00iYH51..4HC..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR,GEN);LH5#,6#,7#,YH50,53,56,6#,7#..ARL,EUR,GEN¥580198212-198708

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-90C00iLH7#,YH7#¥4,490198212-198708

main75554-95J00iYH51¥3,400198212-198807

sub75554-95J01¥3,480

main75554-95J01iLH6#,YH60,61,66..ARL,EUR,GEN¥3,480198212-198708

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-95J00iYH51¥1,940198212-198807

sub75531-95J00¥2,100

75572MOULDING, BACK WINDOW, LOWER

main75575-95J00iYH51¥1,940198212-198807

sub75531-95J00¥2,100

75578ACOVER, ROOF DRIP MOULDING END, REAR

main75578-95J00iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR¥160198601-198807

RH

main75579-95J00iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR¥160198601-198807

LH

75579COVER, BACK WINDOW OUTSIDE MOULDING JOINT

main75585-95J00iYH51¥620198212-198807

75595BCOVER, ROOF DRIP SIDE MOULDING END, FRONT

main75595-95J00iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR¥80198601-198807

RH

main75596-95J00iLH56,YH56..N1¥80198601-198807

LH

75747MOULDING, SLIDE DOOR END, RH

main68373-95J01iYH51,63..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH5#,6#,YH56,61,66..LHD¥500198608-198708

main75747-95J00iLH5#,6#,YH5#,6#..LHD;LH60,YH50,61..RHD..V5D¥790198212-198608

75748MOULDING, SLIDE DOOR END, LH

main68374-95J00iLH5#,6#,YH51,56,61,66..LHD..V5D;LH51,61,71,YH51,53,60,61,63,73..RHD¥460198608-198807

main75748-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..LHD..V5D;LH5#,6#,7#,YH51,6#,71..RHD¥790198212-198608

8604

9016260005

main90162-60005¥100

9018906018

main90189-06018¥80

9018906062

main90189-06062¥130

9018906063

main90189-06063¥110

9351026012

main93510-26012¥120

21 parts on this diagram · 2 diagrams in section
