ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-95J00iLH5#,6#,71,YH5#,6#,7#..STD198212-198807

main74104-95J01iYH51,53..GL198306-198807

74106RECEPTACLE SUB-ASSY, ASH, NO.2

main74105-10010-25iLH50,60,70,YH5#,6#,71..06S,09S,12S,15S198212-198401

BEIGE,BEIGE

sub74105-10010

main74105-10010-26iYH51..12S;LH5#,61,YH56,61..R,U;YH50,66..V4D..VSG..EUR;YH51..VSG..(EUR,GEN,SA);LH51,6#,71,YH50,53,61,63,7#..06S,08S,09S,12S,15S198508-198807

BROWN,BROWN

sub74105-10010

main74105-10010-45iLH51,61,71,YH5#,6#,71..06S,09S,12S,15S198401-198508

BEIGE,BEIGE

sub74105-10010

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-10030iLH5#,6#,7#,YH5#,6#,71..06S,09S,12S,15S198212-198807

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74130-90C00iLH5#,6#,7#,YH50,6#,71..COM198212-198508

main74130-95J00-06iLH5#,6#,YH50,6#..V5D..06S198212-198508

BROWN,BROWN

sub74130-95J00

sub74130-90C00

main74130-95J00-16iLH51,61,YH50,51,61..V5D..06S198508-198708

BROWN,BROWN

sub74130-95J00

sub74130-90C00

main74130-95J01-06iLH51,61,71,YH50,51,60,61,63,7#..COM198508-198807

BROWN,BROWN

sub74130-95J00

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-10030iLH5#,6#,7#,YH5#,6#,71..06S,09S,12S,15S198212-198807

74145PLATE, REAR ASH RECEPTACLE

main74145-90B00iLH50,51,60,61,YH50,51,60,61..V5D..06S198212-198807

9018305103

main90183-05103

9326915010

main93269-15010

9351014010

main93510-14010

9356755016

main93567-55016

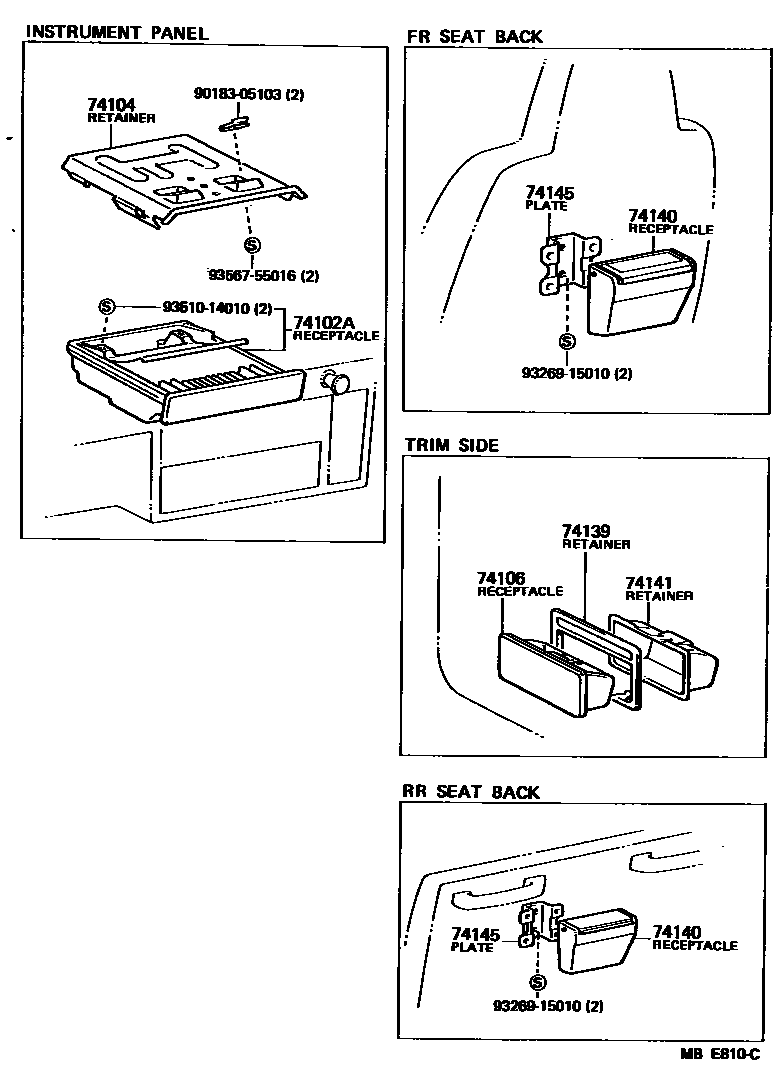

11 parts on this diagram · 1 diagram in section
