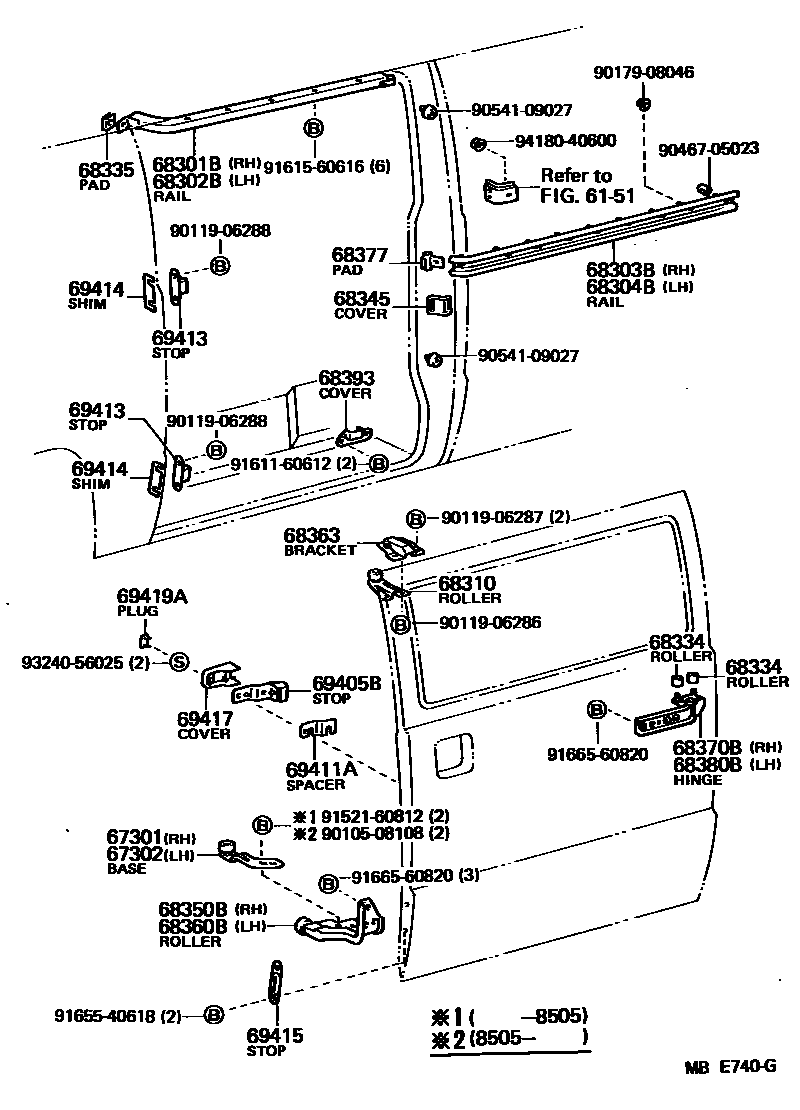

SLIDE ROLLER & RAIL

6151

67301BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main67301-95J00iYH61..V5D;YH61..LHD..V4D;LH60,YH50..RHD..V5D;LH5#,6#,YH5#,60..LHD198212-198508

sub67301-95J03

main67301-95J03iYH50..V5D..GEN;YH50..LHD..V4D..GEN;YH50..LHD..12S..GEN;LH51,61,YH60..LHD..GEN198507-198708

67302BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main67302-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..LHD..V5D;LH5#,6#,7#,YH51,6#,71..RHD198212-198508

sub67302-95J03

main67302-95J03iLH5#,6#,YH50,51,56,60,61,66..LHD..V5D;LH51,61,71,YH50,51,53,60,61,63,7#..RHD198507-198807

68301BRAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68301-95J00iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198708

68302BRAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68302-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198807

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-95J00iLH5#,6#,YH5#,6#..LHD;LH60,YH50,61..RHD..V5D198212-198608

sub68303-95J01

sub68373-95J01

sub68377-95J01

main68303-95J01iYH51,63..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH5#,6#,YH56,61,66..LHD198608-198708

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-90C00iLH7#,YH71198212-198608

sub68304-95J02

sub68374-95J00

sub68378-95J01

main68304-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..RHD;LH5#,6#,YH51,6#..LHD..V5D198212-198608

sub68304-95J01

sub68374-95J00

sub68378-95J01

main68304-95J01iLH51,61,YH51,53,60,61,63..RHD;LH5#,6#,YH51,56,61,66..LHD..V5D198608-198807

main68304-95J02iLH71,YH73198608-198708

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

sub68310-95J02

main68310-95J02iLH51,61,YH5#,61..GEN,SA198507-198807

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700iLH5#,6#,7#,YH5#,6#,7#198212-198807

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iLH5#,6#,7#,YH5#,6#,7#198212-198807

68345COVER, SLIDE DOOR CENTER RAIL

main68345-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub68345-95J00

main68345-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub68345-95J00

main68345-95J00-15iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub68345-95J00

main68345-95J00-16iYH51,53..4H,4HC,5H;LH5#,6#,71,YH50,56,6#,7#198508-198807

BROWN,BROWN

sub68345-95J00

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-95J00iYH61..V5D;YH61..LHD..V4D;LH60,YH50..RHD..V5D;LH5#,6#,YH5#,60..LHD198212-198508

sub68350-95J03

sub67301-95J03

main68350-95J03iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198507-198708

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..LHD..V5D;LH5#,6#,7#,YH51,6#,71..RHD198212-198508

sub68360-95J03

sub67302-95J03

main68360-95J03iLH51,61,YH5#,6#..RHD..(GEN,SA);LH51,61,YH50,60..LHD..V5D..GEN198507-198807

68363BRACKET, SLIDE DOOR UPPER ROLLER

main68363-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

68370BHINGE ASSY, SLIDE DOOR, CENTER RH

main68370-95J00iLH5#,6#,YH5#,6#..LHD;LH60,YH50,61..RHD..V5D198212-198608

sub68380-95J03

main68380-95J03iLH5#,6#,YH51,56,61,66..LHD198608-198708

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-95J00iLH5#,6#,YH5#,6#..LHD;LH60,YH50,61..RHD..V5D198212-198608

RH

main68377-95J01iYH51,63..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH5#,6#,YH56,61,66..LHD198608-198708

RH

main68378-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..LHD..V5D;LH5#,6#,7#,YH51,6#,71..RHD198212-198608

LH

main68378-95J01iLH5#,6#,YH51,56,61,66..LHD..V5D;LH51,61,71,YH51,53,60,61,63,73..RHD198608-198807

LH

68380BHINGE ASSY, SLIDE DOOR, CENTER LH

main68380-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,6#..LHD..V5D;LH5#,6#,7#,YH51,6#,71..RHD198212-198608

sub68390-95J01

main68390-95J01iLH5#,6#,YH51,56,61,66..LHD..V5D;LH51,61,71,YH51,53,60,61,63,73..RHD198608-198807

68393COVER, SLIDE DOOR LOWER RAIL

main68393-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main69405-95J03iLH51,61,YH5#,6#..GEN,SA198507-198807

69411ASPACER, SLIDE DOOR OPEN STOP

main69411-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

T=1.2

69413STOP, SLIDE DOOR DOWN MALE

main69406-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub69416-95J00

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iLH5#,6#,7#,YH5#,6#,7#198212-198807

T=1.0

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

sub69415-95J01

69417COVER, SLIDE DOOR OPEN STOP

main69417-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub69417-95J00

main69417-95J00-15iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub69417-95J00

69419APLUG, SLIDE DOOR OPEN STOP COVER

main69235-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub69235-95J00

main69235-95J00-15iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub69235-95J00

9010508108

main90105-08108

9011906286

main90119-06286

9011906287

main90119-06287

9011906288

main90119-06288

9017908046

main90179-08046

9046705023

main90467-05023

9054109027

main90541-09027

9152160812

main91521-60812

9161160612

main91611-60612

9161560616

main91615-60616

9165540618

main91655-40618

9166560820

main91665-60820

9324056025

main93240-56025

9418040600

main94180-40600

39 parts on this diagram · 1 diagram in section
