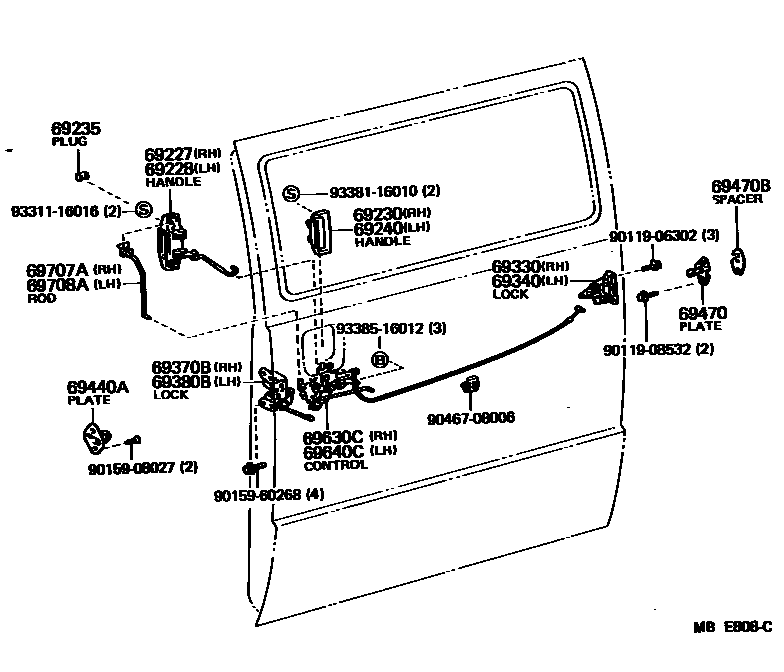

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69070-95J00-05iLH60,YH50..RHD..V5D;LH50,60,YH50,60..LHD198212-198307

BEIGE,BEIGE

sub69070-95J01

main69070-95J01-05iLH60,YH50..RHD..V5D;LH50,60,YH50,60..LHD198307-198401

BEIGE,BEIGE

sub69070-95J01

main69070-95J01-15iYH61..V5D;YH50..RHD..V5D;YH61..LHD..V4D;LH51,61,YH5#,60..LHD198401-198508

BEIGE,BEIGE

sub69070-95J01

main69070-95J02-06iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198508-198708

BROWN,BROWN

69228HANDLE, REAR DOOR INSIDE, LH

main69080-95J00-05iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH50,60,YH60..LHD..V5D;LH50,60,70,YH51,6#,71..RHD198212-198307

BEIGE,BEIGE

sub69080-95J01

main69080-95J01-05iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH50,60,YH60..LHD..V5D;LH50,60,70,YH51,6#,71..RHD198307-198401

BEIGE,BEIGE

sub69080-95J01

main69080-95J01-15iLH51,61,YH5#,6#..LHD..V5D;LH51,61,71,YH5#,6#,71..RHD198401-198508

BEIGE,BEIGE

sub69080-95J01

main69080-95J02-04iYH51,53..05S198508-198708

BLUE,BLUE

sub69080-95J02

main69080-95J02-06iLH5#,6#,YH50,51,56,60,61,66..LHD..V5D;LH51,61,71,YH50,51,53,60,61,63,7#..RHD..(4H,4HC,5H)198508-198807

BROWN,BROWN

sub69080-95J02

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-87001iLH60,YH50..RHD..V5D;LH50,60,YH50,60..LHD198212-198304

sub69230-87003

main69230-87003iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198304-198708

69235PLUG, SLIDE DOOR INSIDE HANDLE CASE

main69235-95J00-05iLH50,60,70,YH5#,6#,71198212-198401

BEIGE,BEIGE

sub69235-95J00

main69235-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub69235-95J00

main69235-95J00-15iLH51,61,71,YH5#,6#,71198401-198508

BEIGE,BEIGE

sub69235-95J00

main69235-95J00-16iYH51,53..4H,4HC,5H;LH5#,6#,71,YH50,56,6#,7#198508-198807

BROWN,BROWN

sub69235-95J00

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-87001iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH50,60,YH60..LHD..V5D;LH50,60,70,YH6#,71..RHD198212-198304

sub69240-87002

main69240-87002iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198304-198807

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198708

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198807

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-95J00iLH51..R,U;YH50..12S..EUR;LH61,YH50..V5D..06S..N1;YH50..V4D..VSG..(4HC,5H);YH61..LHD..VSG..(4HC,5H);YH50,61..4H..(06S,09S)..N1;LH61,YH51..5H..(J,R,U)..EUR;LH5#,60,YH198212-198708

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-95J00iYH50..V4D..R;YH50..12S..EUR;YH50..4H..06S..N1;LH51,61,YH61..5H..R;YH61..VSG..4HC..(ARL,EUR);YH61..MTM..06S..(ARL,EUR);YH50..VSG..(4HC,5H)..(03S,06S);LH5#,6#,7#,YH51198212-198708

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iLH5#,6#,YH51,56,61,66..J,R,U198212-198708

W/FR LOCK

sub69440-46010

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iLH5#,6#,71,YH5#,6#,7#198508-198807

sub69470-95D00

main69470-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

sub69470-87001

69470BSPACER, SLIDE DOOR LOCK STRIKER

main69413-87002iLH5#,6#,71,YH5#,6#,7#198508-198807

LH,T=1.6

sub69413-28020

main69473-95700iLH5#,6#,7#,YH5#,6#,71198212-198508

RH,T=1.6

main69474-95700iLH5#,6#,7#,YH5#,6#,71198212-198508

LH,T=1.6

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-95J00iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;LH60,YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198212-198708

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-95J00iLH51,61,YH51,61..RHD198212-198807

main69640-95J01iYH53,63,73..(05S,06S,15S)..ARL198212-198708

W/FR LOCK

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95J00-05iLH50,60,YH50,60..LHD;LH60,YH50,61..RHD..V5D198212-198401

BEIGE,BEIGE

sub69707-95J00

main69707-95J00-06iYH51..V5D;YH51..LHD..V4D;YH51..LHD..12S;YH50,61,63..RHD..V5D;LH5#,6#,YH50,56,60,61,66..LHD198508-198708

BROWN,BROWN

sub69707-95J00

main69707-95J00-15iYH61..V5D;YH50..RHD..V5D;YH61..LHD..V4D;LH51,61,YH5#,60..LHD198401-198508

BEIGE,BEIGE

sub69707-95J00

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95J00-05iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH50,60,YH60..LHD..V5D;LH50,60,70,YH51,6#,71..RHD198212-198401

BEIGE,BEIGE

sub69708-95J00

main69708-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub69708-95J00

main69708-95J00-15iLH51,61,YH5#,6#..LHD..V5D;LH51,61,71,YH5#,6#,71..RHD198401-198508

BEIGE,BEIGE

sub69708-95J00

main69708-95J00-16iLH5#,6#,YH50,51,56,60,61,66..LHD..V5D;LH51,61,71,YH50,51,53,60,61,63,7#..RHD..(4H,4HC,5H)198508-198807

BROWN,BROWN

sub69708-95J00

9011906302

main90119-06302

9011908532

main90119-08532

9015908027

main90159-08027

9015960268

main90159-60268

9046708006

main90467-08006

9331116016

main93311-16016

9338116010

main93381-16010

9338516012

main93385-16012

24 parts on this diagram · 1 diagram in section
