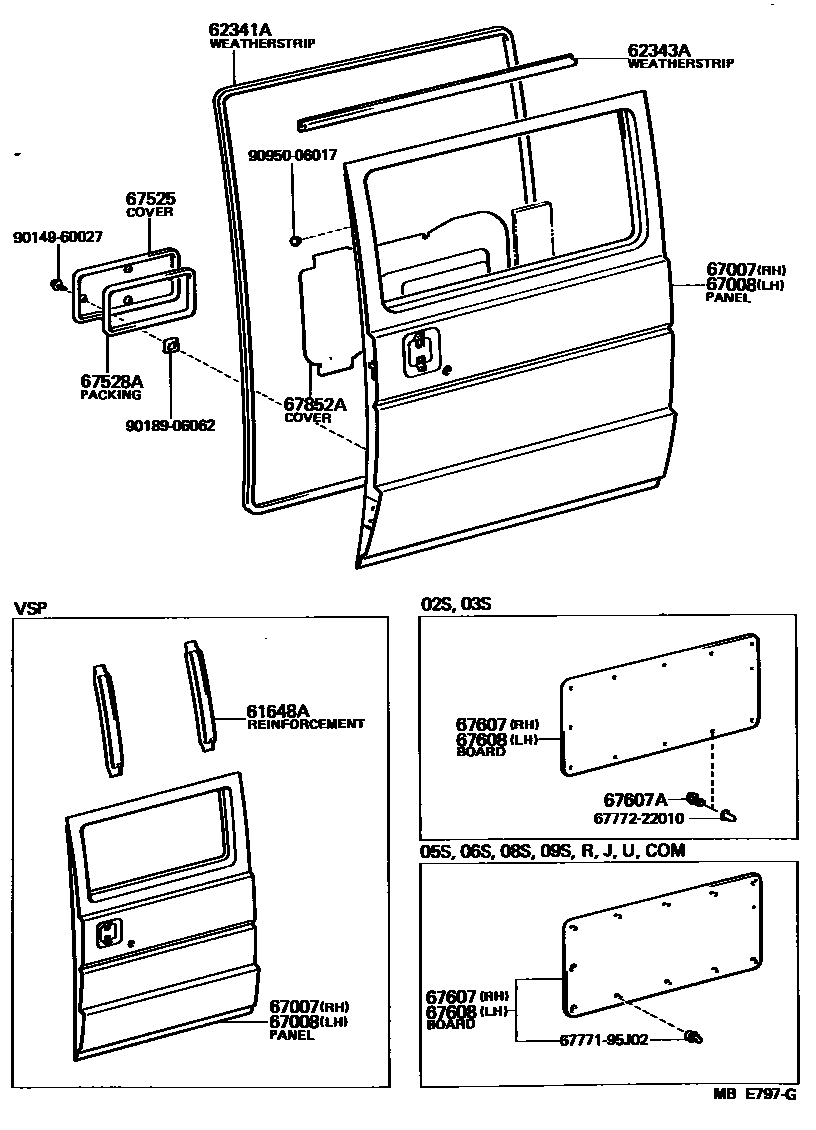

REAR DOOR PANEL & GLASS

61648AREINFORCEMENT, SLIDE DOOR WINDOW

main61645-95J00×2iLH50,51,60,61,YH50,51,60,61..VSP198212-198708

62341AWEATHERSTRIP, SLIDE DOOR, NO.1

main62341-95J02×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

62343AWEATHERSTRIP, SLIDE DOOR, NO.2

main62343-95J00×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

67007PANEL SUB-ASSY, SLIDE DOOR, RH

main67003-95J00iLH50,60,YH50,60..LHD..VSG..03S..N1198212-198401

W/WINDOW GLASS

main67003-95J02iLH50,60,YH50,60..LHD..(06S,09S,12S)..EUR198212-198401

main67003-95J04iLH60..V5D..VSP;YH50..RHD..V5D;LH60..LHD..V4D..03S;LH50,YH50,60..LHD..VSP198212-198401

main67003-95J06iLH51,YH50,60..LHD..VSG..03S..GEN;LH51,61,YH50,60..LHD..(06S,12S,15S)..GEN198401-198508

W/WINDOW GLASS

main67003-95J08iLH51,61,YH5#,61..LHD..(06S,09S,12S)..EUR198401-198508

main67003-95J09iYH50,61..V5D..VSP;YH50,61..LHD..V4D..VSP;LH51,61,YH51,60..LHD..VSP198401-198508

main67003-95J15iYH56,66..R198608-198708

W/WINDOW GLASS

main67003-95J16iYH50,51,61,63..RHD..V5D198508-198708

main67003-95J17iYH51..R198508-198708

67008PANEL SUB-ASSY, SLIDE DOOR, LH

main67004-95J00iYH61..SA;LH50..VSG..GEN;LH50..RHD..12S..GEN;LH60,YH50,60..V5D..VSG..GEN;YH50,60..RHD..VSG..03S..GEN;LH60,YH50,60..RHD..(06S,12S,15S)..GEN198212-198401

W/WINDOW GLASS

main67004-95J02iLH50,70,YH50,71..RHD..COM..(ARL,EUR)198212-198401

main67004-95J04iYH51198306-198401

main67004-95J06iYH50..V5D..VSP;YH50..RHD..V4D..VSP;LH50,60,YH6#..RHD..VSP;LH50,60,YH60..LHD..V5D..VSP198212-198401

main67004-95J12iLH51..VSG..03S..GEN;YH50..RHD..VSG..03S;YH50..V5D..VSG..GEN;YH51,61..STD..(GEN,SA);LH51,61,YH60..V5D..06S..GEN;LH51,61,YH50,60..RHD..(06S,12S,15S)..GEN198401-198508

W/WINDOW GLASS

main67004-95J14iYH61..06S..ARL198401-198508

main67004-95J15iYH51..GL..SA198401-198608

sub67004-95J38

main67004-95J17iLH51,61,YH5#,6#..RHD..VSP;LH51,61,YH5#,6#..LHD..V5D..VSP198401-198508

main67004-95J26iYH51,53..05S198508-198708

sub67004-95J39

main67004-95J28iLH5#,6#,YH50,51,56,61,66..LHD..V5D..VSP198508-198708

W/WINDOW GLASS

main67004-95J29iLH51,61,YH50,51,53,60,61,63..RHD..VSP;LH5#,6#,YH50,51,56,60,61,66..LHD..V5D..VSP198508-198708

main67004-95J30iLH71,YH61,71..(06S,15S)..ARL198508-198608

67525COVER, SLIDE DOOR PANEL, LOWER

main67525-95J00×2iLH5#,6#,7#,YH5#,6#,7#..STD198212-198807

main67525-95J01×2iYH51198306-198401

67528APACKING, SLIDE DOOR LOWER COVER

main67528-95J00×4iLH5#,6#,7#,YH5#,6#,7#198212-198807

67607BOARD SUB-ASSY, SLIDE DOOR TRIM, RH

main67613-95J01iYH50,61..RHD..V5D;LH60,YH51,63..V5D..03S;LH60,YH51..LHD..V4D..03S;LH5#,61,66,YH50,56,60,61,66..LHD..(02S,03S)198212-198708

main67630-95J00-05iLH50,60,YH50,60..LHD..(06S,09S,12S,15S)198212-198401

BEIGE,BEIGE

main67630-95J00-06iYH50..V4D..VSG..N1;LH61,YH51..LHD..COM;LH61,YH51..LHD..VSG;LH5#,66,YH56,61,66..J,R,U;LH51,YH50,60,61..LHD..(06S,12S,15S)198508-198708

BROWN,BROWN

main67630-95J00-15iLH51,61,YH5#,6#..LHD..(06S,09S,12S,15S)198401-198508

BEIGE,BEIGE

67607ACLIP(FOR SLIDE DOOR TRIM BOARD)

main90467-09019-10iYH51..MTM..03S;YH51..4HC..03S..N1;LH51,61,YH50,53,60,61..03S198508-198807

BROWN,DARK BROWN

main90467-09019-15iYH51..4H..ARL;YH51..03S..N1;LH5#,6#,YH50,6#..03S198212-198508

BEIGE,BEIGE

67608BOARD SUB-ASSY, SLIDE DOOR TRIM, LH

main67614-95J01iYH50..V5D..03S;YH51..RHD..4H..03S;YH50..RHD..V4D..03S;LH50,51,60,61,YH60,61,63..RHD..03S;LH5#,6#,YH51,56,60,61,66..LHD..V5D..(02S,03S)198212-198807

main67640-95J00-05iLH50,60,YH50,60..V5D..06S;LH50,60,70,YH50,6#,71..RHD..(06S,12S,15S)198212-198401

BEIGE,BEIGE

main67640-95J00-06iLH51..R;LH61,YH61..V5D..VSG;LH51,YH50,51,60..V5D..06S;LH51,61,71,YH50,51,60,61,63,7#..RHD..STD..(06S,09S,12S,15S)198508-198708

BROWN,BROWN

main67640-95J00-15iLH51,61,YH50,51,60,61..V5D..06S;LH51,61,71,YH50,51,60,61,71..RHD..STD..(06S,09S,12S,15S)198401-198708

BEIGE,BEIGE

main67640-95J02-05iYH51..GL198401-198508

BEIGE,BEIGE

main67640-95J02-15iYH51198306-198401

BEIGE,BEIGE

main67640-95J02-26iYH53..SA198608-198807

BROWN,BROWN

main67640-95J10-04iYH51,53..05S198508-198708

BLUE,BLUE

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67852-95J00×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

6777195J02WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-95J02

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9014960027

main90149-60027

9018906062

main90189-06062

9095006017

main90950-06017

16 parts on this diagram · 1 diagram in section
