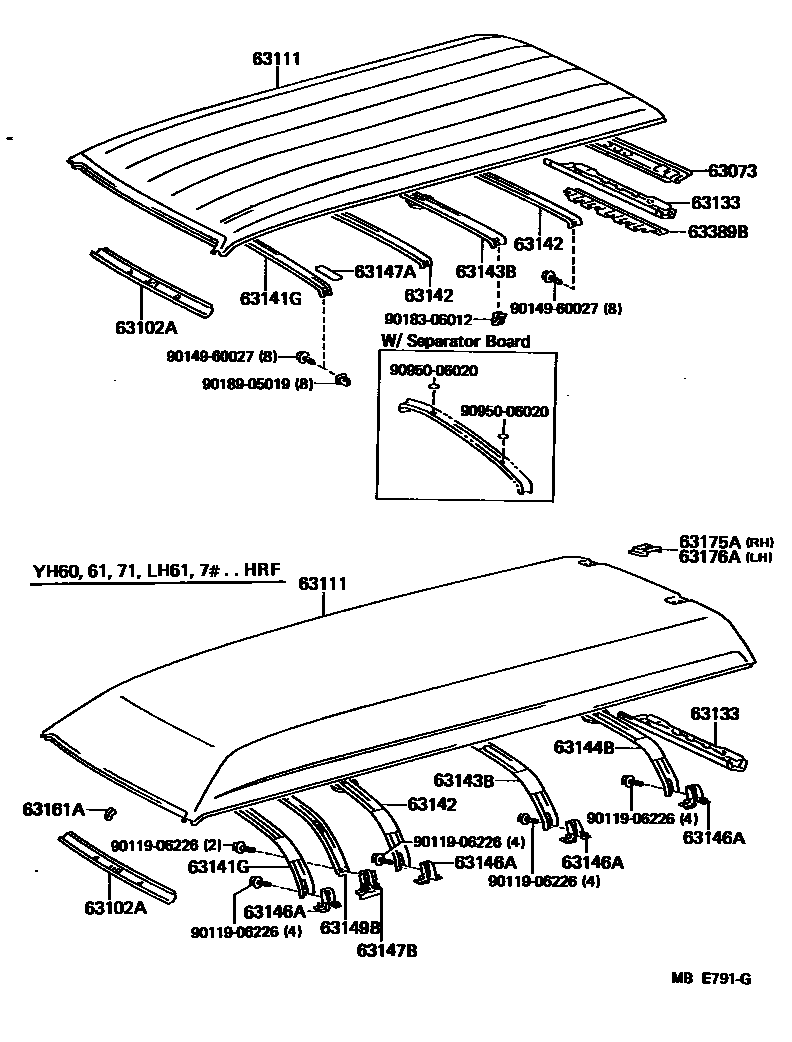

ROOF PANEL & BACK PANEL

63073FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER

main63073-95J00iLH50,6#,YH5#,6#;LH51..03S,06S,12S198212-198508

sub63073-95J02

main63073-95J02iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198508-198807

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-95J00iLH5#,6#,7#,YH5#,6#,7#..STD198212-198807

main63102-95J01iYH51198306-198708

63111PANEL, ROOF

main63111-90C00iLH7#,YH7#198212-198708

main63111-95J00iLH5#,YH5#198212-198807

main63111-95J01iLH6#,YH6#..SRF198212-198807

main63111-95J04iLH61,YH60,61..HRF198508-198708

63133FRAME, BACK WINDOW OPENING, UPPER

main63071-90C01iLH7#,YH7#198212-198708

main63133-95J00iLH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF..STD198212-198807

main63133-95J02iYH51198306-198807

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-90C03iLH7#,YH71198212-198708

main63103-95J03iLH5#,6#,YH50,6#..RHD..V..GEN198212-198508

W/COOLER

main63103-95J05iLH61..HRF198508-198708

main63103-95J06iLH61..HRF198508-198708

W/COOLER

main63141-95J00iYH51,61..(06S,09S)..(ARL,SA)198212-198807

main63141-95J01iYH61..15S;YH51..4H..ARL;LH5#,6#,YH50,61..VSP..(ARL,SA)198212-198508

main63141-95J03iLH5#,6#,YH50,60..COM..GEN198212-198508

W/*ODAC

sub63141-95J15

main63141-95J05iYH50,61..G198212-198508

main63141-95J10iLH51,61,YH50,51,60,61,63..V..SRF..(GEN,SA)198508-198807

main63141-95J10iYH50..V4D..VSG..N1;LH51,61,YH51,56,61,66..LHD..VSG..N1198508-198708

W/SEPARATOR BAR

main63141-95J11iLH51,61,YH50,51,60,61..V..SRF..GEN198508-198708

W/COOLER

main63141-95J15iLH5#,6#,YH51,56,61,66..LHD..(02S,03S)..N1198508-198708

W/SEPARATOR BOAD

main63141-95J15iYH51,53..05S198508-198708

W/*ODAC

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-90C00iLH61,YH60,61..HRF198508-198708

main63104-90C01iLH7#,YH7#198212-198708

main63142-95J00iLH51..R,U;LH51..03S,06S,12S;LH50,56,6#,YH5#,6#..SRF198212-198807

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63105-90C00iLH61..HRF198508-198708

main63105-90C01iYH60,61..HRF198212-198708

main63105-95J00iYH56,66..N1;LH51,61,YH51..R;YH61..5H..(G,R);YH50..V4D..(G,R);YH61..V..(4H,4HC);YH61..5H..(03S,06S);YH51..MTM..(03S,06S);YH51..4HC..(03S,06S)..N1;LH5#,6#,YH50,53,60,198212-198807

main63105-95J01iYH51..J,U;LH51,56,61,YH56..U;YH50,61..(4HC,5H)..(J,U);LH51,YH50,51,61..COM..SRF;LH50,6#,YH53,60,63,66..SRF..(08S,09S,12S,15S)198212-198807

main63105-95J02iYH51,53..05S198508-198708

main63105-95J05iLH51,61,YH51,61..R;YH50..V4D..VSG..N1198508-198708

W/SEPARATOR BAR

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63106-90C00iLH7#,YH7#198212-198708

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-90C00iLH7#,YH7#198212-198708

63147ACUSHION, ROOF TO ROOF REINFORCEMENT

main63147-95A00iLH5#,6#,YH50,60..03S..GEN198212-198603

sub63357-95701

main63357-95701iLH51,61,YH50,60..03S..GEN198603-198708

63147BBRACKET, ROOF PANEL REINFORCEMENT, NO.1 REAR

main63147-90C00iLH7#,YH7#198305-198708

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-90C00iLH7#,YH7#198305-198708

63161ASPACER, WINDSHIELD HEADER

main63161-95J00iLH61,YH60,61..HRF198508-198708

63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH

main63175-90C00iLH7#,YH7#198212-198708

63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH

main63176-90C00iLH7#,YH7#198212-198708

63389BRETAINER, ROOF HEADLINING TRIM, CENTER

main63389-95J00iYH51198306-198807

9011906226

main90119-06226

9014960027

main90149-60027

9018306012

main90183-06012

9018905019

main90189-05019

9095006020

main90950-06020

21 parts on this diagram · 1 diagram in section
