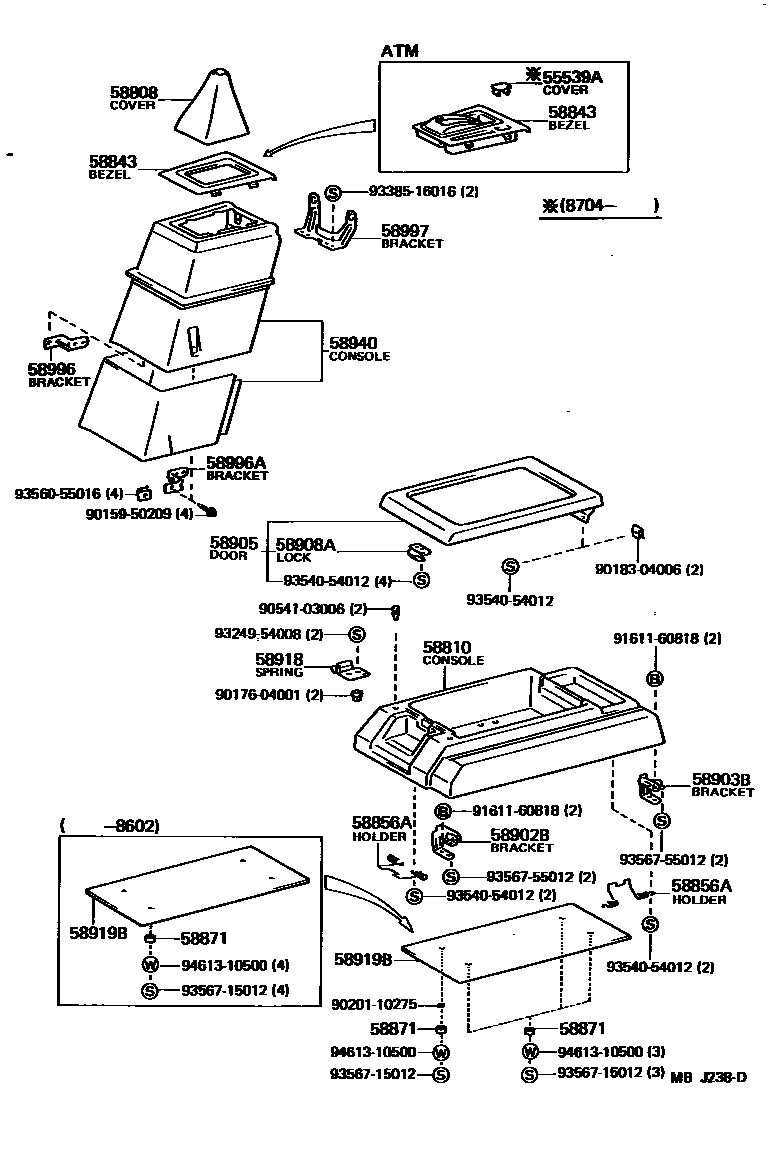

CONSOLE BOX & BRACKET

0001 1 0002 1

55539ACOVER, SPARE SWITCH HOLE

main55539-32010iYH53..4FC198704-198708

sub55539-32030

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-95J01iYH51,53..5F198508-198708

main58840-95J02iLH56,66,YH56,66198608-198708

58810CONSOLE ASSY

main58811-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub58811-95J02

sub58902-95J01

sub58903-95J03

main58811-95J00-16iLH56,66,YH56,66198608-198708

BROWN,BROWN

sub58811-95J02

sub58902-95J01

sub58903-95J03

58843BEZEL, SHIFTING HOLE

main58843-95J00iYH51,53..5F198508-198708

main58843-95J01iYH51,53..4FC198508-198708

58856AHOLDER, CONSOLE BOX

main58856-95J00iYH51,53..05S198508-198708

SIDE

main58856-95J01iYH51,53..05S198508-198708

RR

58871CUSHION, CONSOLE BOX

main58871-95J00iYH51,53..05S198508-198708

58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1

main58902-95J01iYH51,53..05S198508-198708

58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2

main58903-95J01iYH51,53..05S198508-198708

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-95J00-14iYH51,53..05S198508-198708

BLUE,BLUE

sub58905-95J00

main58905-95J00-16iLH56,66,YH56,66198608-198708

BROWN,BROWN

sub58905-95J00

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12010iYH51,53..05S198508-198708

58918SPRING, CONSOLE BOX STOPPER

main58918-95J00iYH51,53..05S198508-198708

58919BPLATE, CONSOLE BOX

main58919-95J00iYH51,53..05S198508-198708

58940CONSOLE ASSY, REAR

main58901-95J01-14iYH51,53..05S198508-198708

BLUE,BLUE

sub58901-95J01

main58911-95J00-04iLH56,66,YH56,66198608-198708

BLUE,BLUE

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-95J00iYH51,53..05S198508-198708

main58995-95J01iLH56,66,YH56,66198608-198708

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-95J00iYH51,53..05S198508-198708

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-95J00iYH51,53..05S198508-198708

main58997-95J01iLH56,66,YH56,66198608-198708

9015950209

main90159-50209

9017604001

main90176-04001

9018304006

main90183-04006

9020110275

main90201-10275

9054103006

main90541-03006

9161160818

main91611-60818

9324954008

main93249-54008

9338516016

main93385-16016

9354054012

main93540-54012

9356055016

main93560-55016

9356715012

main93567-15012

9356755012

main93567-55012

9461310500

main94613-10500

29 parts on this diagram · 2 diagrams in section
