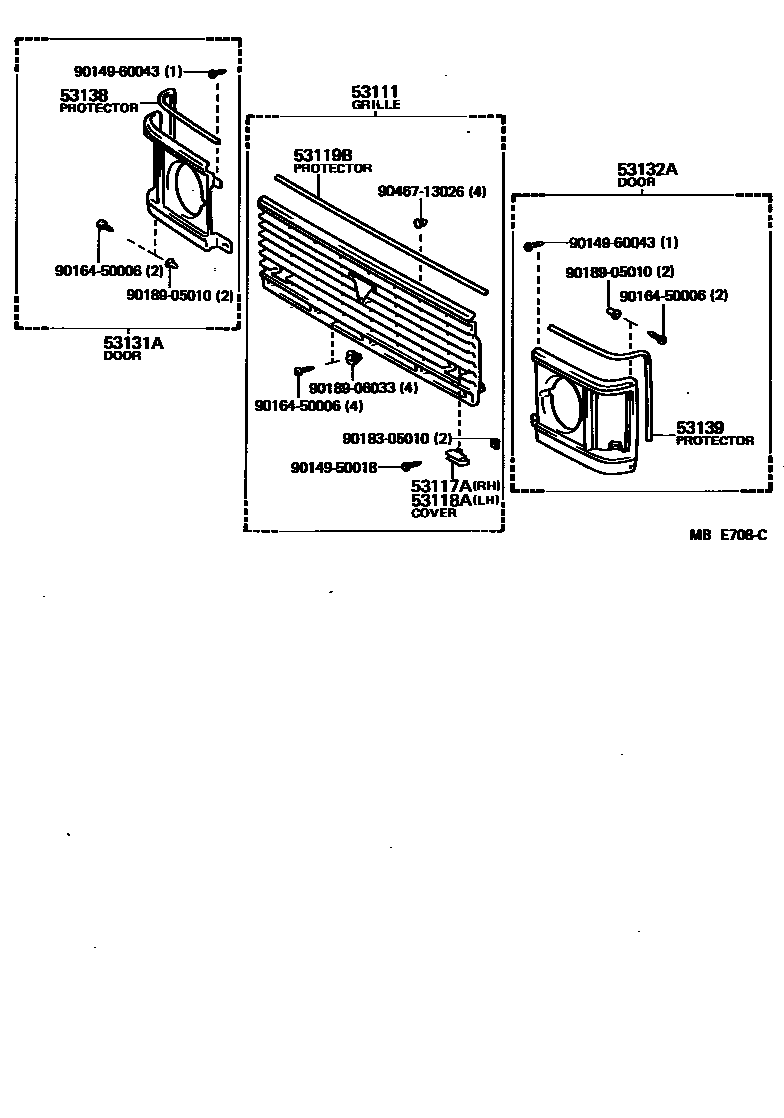

RADIATOR GRILLE

0001 1 0002 1 0003 1

53111GRILLE, RADIATOR

main53111-29205iLH51,61,YH5#,6#..STD..(EUR,GEN,SA)198212-198508

main53111-29215iYH51198306-198401

main53111-29225iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

main53111-95J09iLH5#,6#,71,YH5#,6#,7#..STD198508-198807

main53111-95J11iYH51,53..GL..SA198508-198807

main53111-95J12iYH51,53..05S198508-198708

53117ACOVER, RADIATOR GRILLE SERVICE HOLE, RH

main53117-95J00iLH50,60,70,YH5#,6#,71198212-198508

main53117-95J01iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

53118ACOVER, RADIATOR GRILLE SERVICE HOLE, LH

main53118-95J00iLH50,60,70,YH5#,6#,71198212-198508

53119BPROTECTOR, RADIATOR GRILLE

main53119-95J00iLH50,60,70,YH5#,6#,71198212-198508

main53119-95J01iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

sub53119-95J00

main53119-95J02iLH5#,6#,71,YH5#,6#,7#198508-198807

53131ADOOR, HEADLAMP, RH

main53130-29155iLH50,60,70,YH50,6#,71198212-198508

main53130-29165iYH51198306-198401

main53130-29175iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

main53130-95J05iLH5#,6#,71,YH5#,6#,7#..STD198508-198807

main53130-95J07iYH51,53..GL..SA198508-198807

main53130-95J08iYH51,53..05S198508-198708

53132ADOOR, HEADLAMP, LH

main53140-29155iLH50,60,70,YH50,6#,71198212-198508

main53140-29165iYH51198306-198401

main53140-29175iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

main53140-95J05iLH5#,6#,71,YH5#,6#,7#..STD198508-198807

main53140-95J07iYH51,53..GL..SA198508-198807

main53140-95J08iYH51,53..05S198508-198708

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-95J00iLH51,61,YH5#,6#..STD..(EUR,GEN,SA)198212-198508

L=370

sub53138-95J01

main53138-95J01iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

L=380

main53138-95J02iLH51,61,71,YH5#,6#,71..STD198508-198605

L=295

sub53138-95J03

main53138-95J03iYH51..GL198508-198807

L=380

sub53119-95J02

main53148-95J00iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198212-198508

L=285

sub53148-95J01

main53148-95J01iLH51,61,YH5#,6#..STD..(EUR,GEN,SA)198401-198508

L=295

53139PROTECTOR, HEADLAMP DOOR, LH

main53138-95J00iLH50,60,70,YH5#,6#,71198212-198508

L=370

sub53138-95J01

main53138-95J01iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198401-198508

L=380

main53138-95J02iLH51,61,71,YH5#,6#,71..STD198508-198605

L=370

sub53138-95J03

main53138-95J03iLH5#,6#,71,YH5#,6#,7#198605-198807

sub53119-95J02

main53138-95J03iLH51,61,71,YH5#,6#,71198508-198605

L=380

sub53119-95J02

main53149-95J00iYH51..GL;YH51..4H..ARL;LH51,61,71,YH61,71..ARL198212-198508

L=285

sub53149-95J01

main53149-95J01iLH51,61,YH5#,6#..STD..(EUR,GEN,SA)198401-198508

L=295

9014950018

main90149-50018

9014960043

main90149-60043

9016450006

main90164-50006

9018305010

main90183-05010

9018905010

main90189-05010

9018906033

main90189-06033

9046713026

main90467-13026

15 parts on this diagram · 3 diagrams in section
