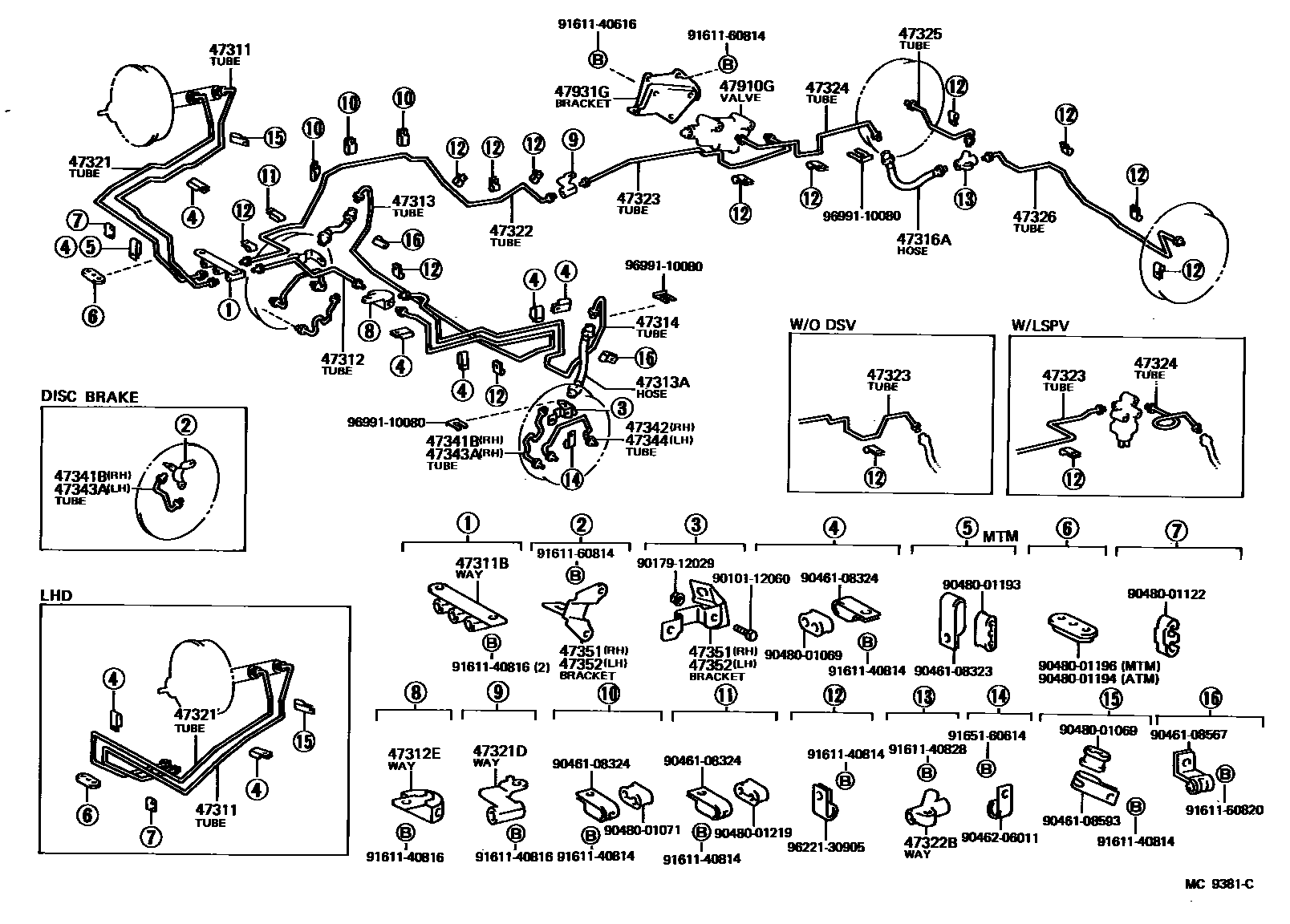

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26190iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

sub47311-26191

main47311-26191iYH51..4HC..SA;YH51..RHD..V4D..(4FC,4H,5F,5H);LH51,61,71,YH50,6#,71..RHD..(ARL,GEN,SA)198508-198608

sub47311-26192

main47311-26192iLH51,61,71,YH51,53,60,61,63,73..RHD..(ARL,GEN,SA)198608-198807

main47311-26210iLH5#,YH51..LHD;YH50,6#..LHD..N1;YH50,60..LHD..GEN;LH6#..LHD..(03S,06S,15S)198212-198508

sub47311-26230

main47311-26211iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

main47311-26220iLH6#,YH50,6#..M1198212-198508

main47311-26221iYH51..5H..M1;YH51..LHD..(03S,12S);LH51,61,YH50,61..LHD..EUR198508-198601

sub47311-26222

main47311-26222iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH51,61,YH50,61..LHD..EUR198601-198708

main47311-26230iLH60..V5D..N1;YH60..V5D..4H..N1198212-198508

SWEDEN SPEC

sub47311-26211

main47311-26240iLH51,61,YH5#,61..RHD..EUR198508-198601

sub47311-26241

main47311-26241iLH51,61,YH50,51,61..RHD..EUR198601-198708

main47311-26290iLH56,66,YH56,66198608-198708

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10100iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

main90412-10105iLH5#,6#,7#,YH5#,6#,7#..MTM198212-198807

47312TUBE, FRONT BRAKE, NO.2

main47312-26170iLH5#,6#,7#,YH5#,6#,71198212-198508

sub47312-26190

main47312-26171iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47312-26190iLH60..V5D..N1;YH60..V5D..4H..N1198212-198508

SWEDEN SPEC

main47312-26230iLH56,66,YH56,66198608-198708

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10137iLH5#,6#,YH50,6#..GEN198212-198608

main90414-10012iLH5#,6#,71,YH5#,6#,73198212-198807

47313TUBE, FRONT BRAKE, NO.3

main47313-26090iLH5#,6#,7#,YH5#,6#,71198212-198508

sub47313-26100

main47313-26091iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47313-26100iLH61..V5D..5H..N1;YH61..V5D..VSG..N1;YH61..V5D..VSP..4H198212-198508

SWEDEN SPEC

main47313-26120iLH56,66,YH56,66198608-198708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02436iLH5#,6#,7#,YH5#,6#,71198212-198508

main90947-02477iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main90947-02502iLH56,66198608-198708

main90947-02534iYH56,66198612-198708

sub90947-02928

47314TUBE, FRONT BRAKE, NO.4

main47314-26080iLH5#,6#,7#,YH5#,6#,71198212-198508

sub47314-26090

main47314-26081iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47314-26090iLH61..V5D..5H..N1;YH61..V5D..VSG..N1;YH61..V5D..VSP..4H198212-198508

SWEDEN SPEC

main47314-26120iLH56,66,YH56,66198608-198708

47316TUBE, FRONT BRAKE, NO.6

main47316-26090iYH51..MTM;YH51..4HC..(EUR,SA);LH5#,YH50..ARL,EUR,SA198212-198508

main47316-26091iLH51,YH50..ARL,EUR;YH51..4FC,4H,5F,5H;YH51..4HC..(03S,09S)..(EUR,SA)198508-198807

main47316-26100iLH6#,YH6#..ARL,EUR,SA198212-198508

sub47316-26120

main47316-26101iLH61,YH61..ARL,EUR,SA198508-198807

main47316-26110iLH7#,YH71198212-198508

main47316-26111iLH71,YH7#198508-198708

main47316-26120iLH60..V5D..N1;YH60..V5D..4H..N1198212-198508

SWEDEN SPEC

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02535iYH56,66198612-198708

sub90947-02927

main96940-33205iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main96940-33505iLH56,66198608-198708

47321TUBE, REAR BRAKE, NO.1

main47321-26100iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

sub47321-26101

main47321-26101iLH51,61,71,YH51,53,60,61,63,73..RHD..(ARL,GEN,SA)198508-198807

main47321-26120iLH5#,YH51..LHD;YH50,6#..LHD..N1;YH50,60..LHD..GEN;LH6#..LHD..(03S,06S,15S)198212-198508

sub47321-26140

main47321-26121iLH51,61,YH50,51,60,61..LHD..GEN198508-198708

main47321-26130iLH6#,YH50,6#..M1198212-198508

main47321-26131iYH51..VSG..5H..EUR;YH51..LHD..(03S,12S)..EUR;LH51,61,YH50,61..LHD..EUR198508-198708

main47321-26140iLH61..V5D..5H..N1;YH61..V5D..VSG..N1;YH61..V5D..VSP..4H198212-198508

SWEDEN SPEC

sub47321-26121

main47321-26150iLH51,61,YH5#,61..RHD..EUR198508-198601

sub47321-26151

main47321-26151iLH51,61,YH50,51,61..RHD..EUR198601-198708

main47321-26200iLH56,66,YH56,66198608-198708

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10103iLH5#,6#,7#,YH5#,6#,7#198212-198807

47322TUBE, REAR BRAKE, NO.2

main47322-26090iLH5#,6#,7#,YH5#,6#,71198212-198508

sub47322-26120

main47322-26091iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

main47322-26120iLH61..V5D..5H..N1;YH61..V5D..VSG..N1;YH61..V5D..VSP..4H198212-198508

SWEDEN SPEC

main47322-26150iLH56,66,YH56,66198608-198708

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iLH5#,6#,7#,YH5#,6#,7#198212-198807

47323TUBE, REAR BRAKE, NO.3

main47323-26160iLH5#,YH50..GEN198212-198508

W/DSV

sub47323-26161

main47323-26161iLH51,YH50..GEN198508-198708

W/DSV

main47323-26170iLH5#,YH5#198212-198508

W/LSPV

sub47323-26171

main47323-26171iLH5#,YH5#198508-198807

W/LSPV

main47323-26180iLH5#,YH50..GEN198212-198508

W/O VALVE

main47323-26200iLH6#,YH6#..GEN198212-198508

W/DSV

sub47323-26201

main47323-26201iLH61,YH60..GEN198508-198708

W/DSV

main47323-26210iLH6#,YH6#198212-198508

W/LSPV

sub47323-26260

main47323-26211iLH6#,YH6#198508-198807

W/LSPV

main47323-26220iLH6#,YH6#..GEN198212-198508

W/O VALVE

sub47323-26221

main47323-26250iLH7#,YH71198212-198508

sub47323-26251

main47323-26251iLH71,YH7#198508-198708

main47323-26260iLH60..V5D..N1;YH60..V5D..4H..N1198212-198508

SWEDEN SPEC

sub47323-26211

47324TUBE, REAR BRAKE, NO.4

main47324-26090iLH5#,6#,YH50,6#..GEN198212-198508

W/DSV

sub47324-26091

main47324-26091iLH51,61,YH50,60..GEN198508-198608

W/DSV

main47324-26100iLH5#,6#,7#,YH5#,6#,71198212-198508

W/LSPV

sub47324-26140

main47324-26101iLH5#,6#,71,YH5#,6#,73198508-198807

W/LSPV

main47324-26140iLH60..V5D..N1;YH60..V5D..4H..N1198212-198508

SWEDEN SPEC

sub47324-26101

47325TUBE, REAR BRAKE, NO.5

main47325-26140iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198508

sub47325-26180

main47325-26150iLH6#,YH50,6#..M1198212-198508

sub47325-26151

main47325-26151iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198508-198708

main47325-26180iLH61..V5D..5H..N1;YH61..V5D..VSG..N1;YH61..V5D..VSP..4H198212-198508

SWEDEN SPEC

main47325-26210iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198508-198807

main47325-26220iLH56,66,YH56,66198608-198708

47326TUBE, REAR BRAKE, NO.6

main47326-26120iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198508

sub47326-26160

main47326-26130iLH6#,YH50,6#..M1198212-198508

sub47326-26131

main47326-26131iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198508-198708

main47326-26160iLH61..V5D..5H..N1;YH61..V5D..VSG..N1;YH61..V5D..VSP..4H198212-198508

SWEDEN SPEC

sub47326-26121

main47326-26200iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198508-198807

main47326-26210iLH56,66,YH56,66198608-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26030iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

main47341-26040iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

sub47341-26050

main47341-26050iLH60..V5D..N1;YH60..V5D..4H..N1198212-198508

SWEDEN SPEC

main47341-26060iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

FR DISC BRAKE

main47341-26070iLH51,61,YH51,61..GEN198508-198708

FR DRUM BRAKE

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26020iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

sub47342-26030

main47342-26030iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26020iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

main47343-26030iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

sub47343-26040

main47343-26040iLH60..V5D..N1;YH60..V5D..4H..N1198212-198508

SWEDEN SPEC

main47343-26060iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

FR DISC BRAKE

main47343-26070iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-26010iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

sub47344-26030

main47344-26030iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26050iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

main47351-26060iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

main47351-26070iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

FR DISC BRAKE

main47351-26080iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

main47351-26090iLH56,66,YH56,66198608-198708

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26050iLH5#,6#,YH50,6#..GEN198212-198508

FR DRUM BRAKE

main47352-26060iLH5#,6#,7#,YH5#,6#,71198212-198508

FR DISC BRAKE

main47352-26070iLH51,61,71,YH50,51,53,60,61,63,7#198508-198807

FR DISC BRAKE

main47352-26080iLH51,61,YH51,61..GEN198508-198708

FR DRUM BRAKE

main47352-26090iLH56,66,YH56,66198608-198708

47910VALVE ASSY, LOAD SENSING PROPORTIONING

main47910-25120iLH51,61,YH50,6#..GEN198508-198601

FR DISC BRAKE

sub47910-25121

main47910-25120iLH51,61,YH5#,61..N1198503-198508

sub47910-25121

main47910-25121iLH51,61,YH50,6#..GEN198601-198608

FR DISC BRAKE

sub47910-35300

main47910-25131iLH51,61,YH51,61,63..GEN198608-198708

FR DISC BRAKE

sub47910-25160

main47910-26030iLH5#,6#,YH50,6#..GEN198212-198508

FR DISC BRAKE

sub47910-26091

main47910-26040iYH51..4H..ARL;LH5#,6#,7#,YH50,61,71..ARL198212-198508

main47910-26070iYH5#,61..SA198212-198508

sub47910-26111

main47910-26100iLH71,YH7#198508-198610

sub47910-26101

main47910-26101iLH71,YH73198610-198708

sub47910-35090

main47910-26110iYH51,53,61,63..SA198508-198612

sub47910-26111

main47910-26111iYH53,63..SA198612-198807

main47910-26140iLH56;LH66..N1198608-198610

sub47910-26141

main47910-26141iLH56,YH56;LH66,YH66..N1198610-198708

sub47910-25180

main47910-26150iYH51..4HC..03S..N1;LH51,61,YH50,53,61,63..ARL,EUR;YH51..(4FC,4H,5F,5H)..(ARL,EUR)198508-198610

sub47910-26151

main47910-26151iLH51,61,YH51,53,61,63..ARL,EUR198610-198708

main47910-26170iLH66..M1198608-198610

sub47910-26171

main47910-26171iLH66,YH66..M1198610-198708

main47910-35100iLH51,61,YH51,61..GEN198608-198708

FR DRUM BRAKE

sub47910-35191

47910GVALVE ASSY, DECELERATION SENSING PROPORTIONING

main47910-26060iLH5#,6#,YH50,6#..GEN198212-198608

47931BRACKET, LOAD SENSING VALVE

main47931-26060iLH5#,6#,7#,YH5#,6#,7#198212-198807

47931GBRACKET, DECELERATION SENSING VALVE

main47931-26080iLH5#,6#,YH50,6#..GEN198212-198608

9010112060

main90101-12060

9017912029

main90179-12029

9046108323

main90461-08323

9046108324

main90461-08324

9046108567

main90461-08567

9046108593

main90461-08593

9046206011

main90462-06011

9048001069

main90480-01069

9048001071

main90480-01071

9048001122

main90480-01122

9048001193

main90480-01193

9048001194

main90480-01194

9048001196

main90480-01196

9048001219

main90480-01219

9161140616

main91611-40616

9161140814

main91611-40814

9161140816

main91611-40816

9161140828

main91611-40828

9161160814

main91611-60814

9161160820

main91611-60820

9165160614

main91651-60614

9622130905

main96221-30905

9699110080

main96991-10080

50 parts on this diagram · 4 diagrams in section
