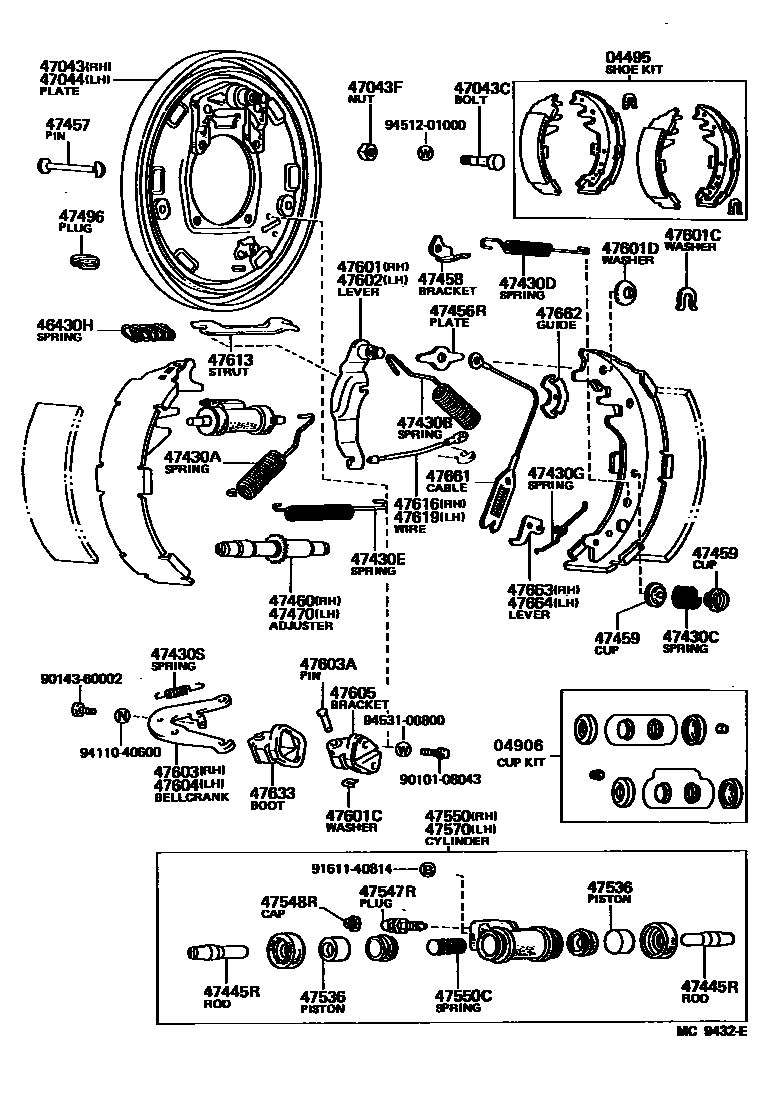

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0004 1 0006 1

04495SHOE KIT, REAR BRAKE

main04495-26040iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

sub04495-26041

main04495-26060iLH56,66,YH56,66198608-198708

sub04495-26061

main04495-35051iLH5#,YH50..12S..EUR198212-198809

sub04495-35052

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iLH51,61,YH50,51,61..EUR198212-198708

main04906-31010iYH5#,61..SA198212-198708

FR DRUM BRAKE

main04906-31010iYH51,53,60,61,63..SA198508-198807

main04906-35080iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#..ARL,GEN198212-198708

FR DISC BRAKE

main04906-35130iLH56,66,YH56,66198608-198708

46430HCABLE ASSY, PARKING BRAKE, NO.3

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26040iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

main47043-26050iLH5#,YH50..12S..EUR198212-198807

main47043-26070iLH56,66,YH56,66198608-198708

sub47043-26071

sub47492-28010

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iLH5#,6#,7#,YH5#,6#,7#198212-198807

*10-1.25PX37-18.5,*10-1.25PX38-16.5

main90114-10016iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,73..ARL,GEN,SA198212-198807

*10-1.25PX41-18,*10-1.25PX38-15

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041iLH5#,6#,7#,YH5#,6#,7#198212-198807

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26040iLH6#,YH50,6#..M1198212-198708

main47044-26050iLH5#,YH50..12S..EUR198212-198807

main47044-26070iLH56,66,YH56,66198608-198708

sub47044-26071

sub47492-28010

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198212-198807

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26331iLH5#,YH50..12S..EUR198212-198807

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20604iLH5#,YH50..12S..EUR198212-198807

main90501-20756iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12412iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

main90506-18031iLH56,66,YH56,66198608-198708

main90506-20005iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-12015iLH6#,YH50,6#..M1198212-198708

main90506-16343iLH5#,YH50..12S..EUR198212-198807

main90506-26011iLH56,66,YH56,66198608-198708

RH

main90506-26014iLH56,66,YH56,66198608-198708

LH

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iLH56,66,YH56,66198608-198708

main90508-20261iLH5#,YH50..12S..EUR198212-198807

RH

main90508-20262iLH5#,YH50..12S..EUR198212-198807

LH

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-18004iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

47445RROD, REAR WHEEL CYLINDER

main47538-35010iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

47456RPLATE, REAR BRAKE SHOE GUIDE

main47456-20010iLH5#,YH50..12S..EUR198212-198807

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iLH5#,YH50..12S..EUR198212-198807

main47447-30020iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198212-198708

47458BRACKET, REAR BRAKE SHOE RETURN SPRING

main47457-35020iLH5#,YH50..12S..EUR198212-198807

RH

main47458-35020iLH5#,YH50..12S..EUR198212-198807

LH

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iLH5#,6#,7#,YH5#,6#,7#198212-198807

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iLH56,66,YH56,66198608-198708

main47062-35010iLH60,YH50,60..M1198212-198308

sub47062-35020

main47062-35020iLH6#,YH50,6#..M1198308-198708

main47405-30020iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-35010iLH60,YH50,60..M1198212-198308

sub47061-35020

main47061-35020iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198308-198708

main47062-60011iLH56,66,YH56,66198608-198708

main47406-30020iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH5#,6#,YH50,56,61,66..EUR198212-198708

main47491-35040iLH5#,YH50..12S..EUR198212-198807

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-30030iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

main47531-20071iYH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,GEN198212-198508

FR DISC BRAKE

sub47531-26070

main47531-26070iYH51..(4FC,4H,5F)..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN198508-198708

FR DISC BRAKE

main47531-26080iYH51,53,60,61,63..SA198508-198807

main47531-26080iLH51,61,YH51,61..GEN198508-198708

FR DRUM BRAKE

main47531-31011iYH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA)198212-198508

FR DRUM BRAKE

sub47531-26080

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLH6#,YH50,6#..M1198212-198708

main47547-26010iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

main47547-60020iLH56,66,YH56,66198608-198708

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLH5#,6#,7#,YH5#,6#,7#198212-198807

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26090iYH51..(4FC,4H,5F)..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN198508-198708

FR DISC BRAKE

main47550-26100iLH51,61,YH51,61..GEN198508-198708

FR DRUM BRAKE

main47550-26100iYH51,53,60,61,63..SA198508-198807

main47550-29265iYH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,GEN198212-198508

FR DISC BRAKE

sub47550-26090

sub91611-60814

main47550-29275iLH5#,YH50..12S..EUR198212-198508

FR DRUM BRAKE

sub47550-26100

sub91611-60814

main47550-30100iLH51,61,YH51,61..EUR198608-198708

main47550-39175iYH51..5H..M1;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198608

sub47550-30100

main47550-60120iLH56,66,YH56,66198608-198708

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010iYH51..(4FC,4H,5F)..(ARL,GEN);LH50,51,60,61,7#,YH50,53,60,61,63,7#..ARL,GEN198212-198708

FR DISC BRAKE

main47509-22010iYH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA)198212-198708

FR DRUM BRAKE

main47509-22010iYH51,53,60,61,63..SA198508-198807

main47509-35020iLH6#,YH50,6#..M1198212-198708

main47509-60010iLH56,66,YH56,66198608-198708

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26090iYH51..(4FC,4H,5F)..(ARL,GEN);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN198508-198708

FR DISC BRAKE

main47550-26100iLH51,61,YH50,60..GEN198508-198708

FR DRUM BRAKE

main47550-26100iYH51,53,60,61,63..SA198508-198807

main47550-29265iYH51..4H..ARL;LH5#,6#,7#,YH50,6#,71..ARL,GEN198212-198508

FR DISC BRAKE

sub47550-26090

sub91611-60814

main47550-29275iYH50..SA;YH61..5H..N1;LH6#,YH50,60..N1;LH5#,YH51..V..(EUR,SA);YH61..(4H,4HC)..(EUR,SA)198212-198508

FR DRUM BRAKE

sub47550-26100

sub91611-60814

main47550-30100iLH51,61,YH51,61..EUR198608-198708

main47550-39175iLH6#,YH50,6#..M1198212-198608

sub47550-30100

main47550-60120iLH56,66,YH56,66198608-198708

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-26020iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

main47611-60010iLH56,66,YH56,66198608-198708

sub47611-35040

main47612-35020iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

T=1.2,T=1.2

main90213-07010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

T=1.6,T=1.6

47601DWASHER, WAVE(FOR REAR BRAKE)

main90206-10059iLH5#,YH50..12S..EUR198212-198807

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-26020iLH5#,YH50..12S..EUR198212-198807

main47611-35020iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

main47612-60010iLH56,66,YH56,66198608-198708

sub47612-35040

47603BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE)

main47624-26020iYH51..VSG..5H..EUR;YH51..(03S,12S)..EUR;LH51,61,YH50,61..EUR198212-198708

main47624-26030iLH5#,YH50..12S..EUR198212-198807

main47624-26050iLH56,66,YH56,66198608-198708

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08075iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

47604BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE)

main47625-26020iLH6#,YH50,6#..M1198212-198708

main47625-26030iLH5#,YH50..12S..EUR198212-198807

main47625-26050iLH56,66,YH56,66198608-198708

47605BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE)

main47628-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-35020iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

RH

main47614-35020iLH5#,YH50..12S..EUR198212-198807

LH

47616WIRE, PARKING BRAKE, RH

main47616-26020iLH6#,YH50,6#..M1198212-198708

main47616-26030iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

main47616-60010iLH56,66,YH56,66198608-198708

47619WIRE, PARKING BRAKE, LH

main47616-26020iLH6#,YH50,6#..M1198212-198708

main47616-26030iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

main47616-60010iLH56,66,YH56,66198608-198708

47633BOOT, PARKING BRAKE BELLCRANK

main47633-26010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

main47633-35020iLH56,66,YH56,66198608-198708

47661CABLE, AUTOMATIC ADJUST(FOR REAR BRAKE)

main47607-30010iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

47662GUIDE, AUTOMATIC ADJUST CABLE(FOR REAR BRAKE)

main47642-20010iLH5#,YH50..12S..EUR198212-198807

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-20011iYH51..4HC..SA;YH51..(4FC,4H,5F,5H)..(ARL,GEN,SA);LH51,61,71,YH50,53,60,61,63,7#..ARL,GEN,SA198212-198807

main47643-60010iLH56,66,YH56,66198608-198708

main47644-35010iLH60,YH50,60..M1198212-198308

sub47644-35020

main47644-35020iLH6#,YH50,6#..M1198308-198708

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47643-20011iYH51..MTM;YH61..4H,4HC;YH61..5H..N1;YH61..RHD..5H;LH50..12S..GEN;LH51,YH50,60..N1;YH51..4HC..(EUR,SA);LH51,YH50,60..ARL,GEN,SA;LH50,6#,7#,YH71..03S,06S,15S198212-198807

main47643-35010iLH60,YH50,60..M1198212-198308

sub47643-35020

main47643-35020iLH6#,YH50,6#..M1198308-198708

main47644-60010iLH56,66,YH56,66198608-198708

9010108043

main90101-08043

9014360002

main90143-60002

9161140814

main91611-40814

9411040600

main94110-40600

9451201000

main94512-01000

9453100800

main94531-00800
