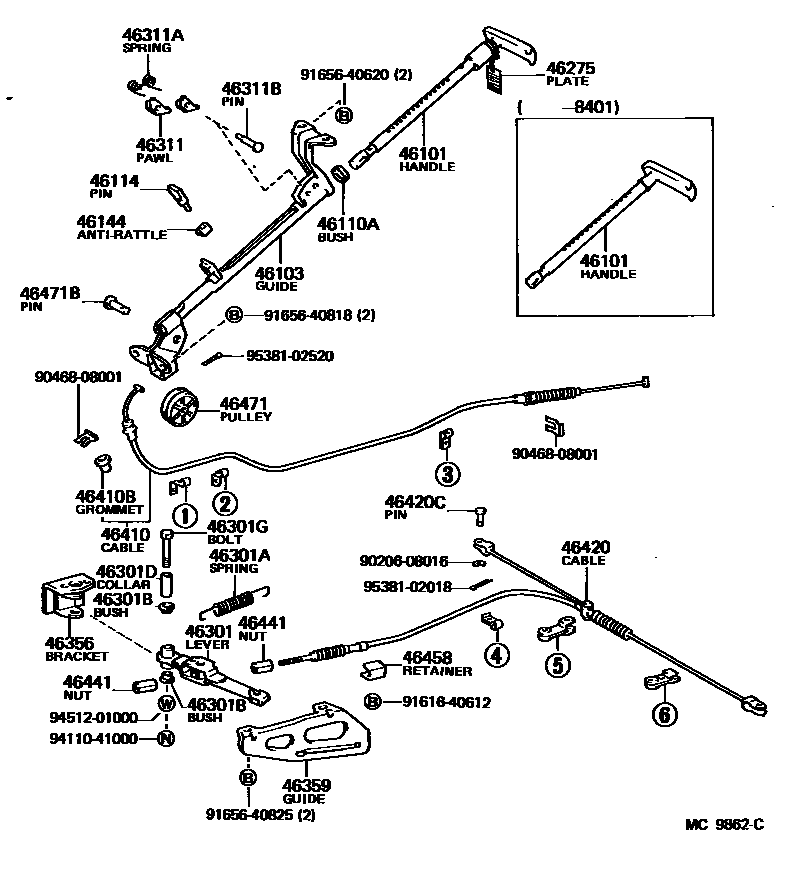

PARKING BRAKE & CABLE

0001 1 0003 1 0004 1 0006 1 0007 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-26060iLH50,60,YH5#,6#..RHD..(EUR,GEN,SA)198212-198312

main46101-26061iLH50,60,YH5#,6#..RHD..(EUR,GEN,SA)198312-198401

main46101-26070iLH50,60,YH50,60..LHD198212-198312

main46101-26071iLH50,60,YH50,60..LHD198312-198401

main46101-26080iLH50,YH50..RHD..06S198308-198401

NEW ZEALAND SPEC

main46101-26080iLH50,60,70,YH50,61,71..ARL198212-198401

main46120-26010iLH51,61,71,YH5#,61,71..RHD198401-198508

main46120-26020iLH51,61,YH5#,6#..LHD198401-198508

main46120-26050iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198508-198807

main46120-26060iLH5#,6#,YH50,51,56,60,61,66..LHD198508-198708

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-26080iLH50,60,YH5#,6#..RHD..(EUR,GEN,SA)198212-198508

main46103-26081iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198508-198807

main46103-26090iLH50,60,YH50,60..LHD198212-198508

main46103-26091iLH51,61,YH50,51,56,60,61,66..LHD198508-198708

main46103-26100iLH50,60,70,YH50,61,71..ARL198212-198401

main46103-26100iLH50,YH50..RHD..06S198308-198401

NEW ZEALAND SPEC

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLH5#,6#,7#,YH5#,6#,7#198212-198807

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLH5#,6#,7#,YH5#,6#,7#198212-198807

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLH5#,6#,7#,YH5#,6#,7#198212-198807

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLH5#,6#,71,YH5#,6#,7#198401-198807

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-26020iLH5#,6#,7#,YH6#,71198212-198508

main46301-26021iLH51,61,71,YH6#,71198508-198807

main46301-26041iLH56,66,YH56,66198608-198708

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-20007iLH51,61,71,YH51,60,61,63,73198212-198807

main90506-20053iLH56,66,YH56,66198608-198708

main90506-23002iYH50,51,53..SA198306-198807

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-13192iLH56,66,YH56,66198608-198708

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10003iLH56,66,YH56,66198608-198708

46301GBOLT(FOR INTERMEDIATE LEVER)

main90101-10039iLH56,66,YH56,66198608-198708

46311PAWL, PARKING BRAKE

main46311-26010iLH5#,6#,7#,YH5#,6#,7#198312-198807

main46311-30041iLH50,60,70,YH5#,6#,71198212-198312

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-08011iLH50,60,70,YH50,61,71..ARL198212-198401

main90508-08106iLH50,60,YH5#,6#..EUR,GEN,SA198212-198807

46311BPIN, PARKING BRAKE PAWL PIVOT

main46313-40010iLH5#,6#,7#,YH5#,6#,7#198212-198807

46356BRACKET, EQUALIZER SUPPORT

main46356-26040iLH5#,6#,7#,YH6#,71198212-198807

main46356-26060iYH50,51,53..SA198306-198807

main46356-26110iLH56,66,YH56,66198608-198708

46359GUIDE, PARKING BRAKE INTERMEDIATE LEVER

main46359-26030iLH5#,6#,7#,YH6#,71198212-198807

main46359-26050iYH50,51,53..SA198306-198807

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26170iLH5#,6#,7#,YH5#,6#,71..RHD198212-198508

main46410-26190iLH5#,6#,YH5#,6#..LHD198212-198508

main46410-26210iLH51,61,71,YH50,51,53,60,61,63,7#..RHD198508-198807

main46410-26230iLH51,61,YH50,51,60,61..LHD198508-198708

main46410-26290iLH56,66,YH56,66198608-198708

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-20004iLH5#,6#,7#,YH5#,6#,7#198212-198807

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26080iYH51..N1;YH51..4H..ARL;LH5#,YH50..ARL,EUR,GEN198212-198508

sub46420-26081

main46420-26081iYH53..ARL198508-198708

sub46420-26082

main46420-26090iLH6#,YH6#198212-198508

sub46420-26091

main46420-26091iLH61,YH60,61,63198508-198805

sub46420-26092

main46420-26092iYH6#198805-198807

main46420-26100iLH7#,YH7#198212-198708

sub46420-26101

main46420-26170iLH56,YH56198608-198708

sub46420-26171

main46420-26180iLH66,YH66198608-198708

sub46420-26181

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08028iLH5#,6#,7#,YH6#,71198212-198708

46441NUT, WIRE ADJUSTING, NO.1

main46441-30041iYH50..ARL,EUR,GEN;YH51..(03S,06S,09S)..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR)198212-198807

46458RETAINER, CABLE

main46458-20020iLH5#,6#,7#,YH5#,6#,71198212-198508

sub46458-50010

main46458-28010iLH5#,6#,71,YH5#,6#,7#198508-198807

46471PULLEY, WIRE

main46471-20010iLH5#,6#,7#,YH5#,6#,7#198212-198807

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08017iLH5#,6#,7#,YH5#,6#,7#198212-198807

9020608016

main90206-08016

9046808001

main90468-08001

9161640612

main91616-40612

9165640620

main91656-40620

9165640818

main91656-40818

9165640825

main91656-40825

9411041000

main94110-41000

9451201000

main94512-01000

9538102018

main95381-02018

9538102520

main95381-02520

34 parts on this diagram · 5 diagrams in section
