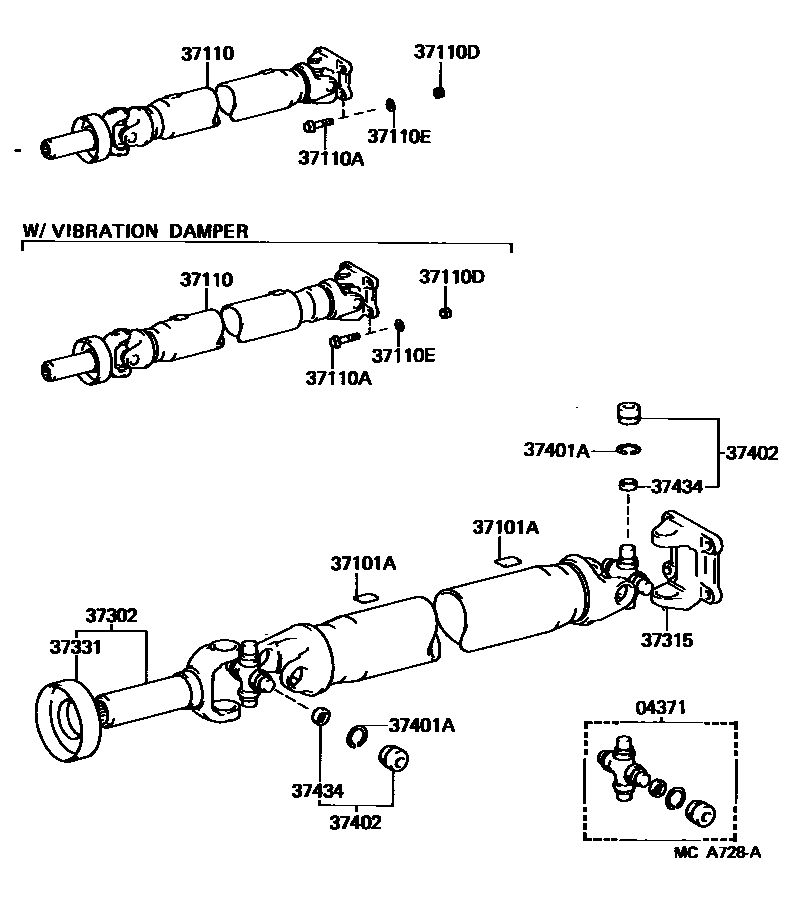

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-25010iYH53,63..ATM198212-198807

main04371-30020iYH53..MTM..ARL198608-198807

sub04371-30021

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iLH5#,6#,7#,YH5#,6#,7#198212-198807

10G,L=20.7,10G

main90937-01136iLH5#,6#,7#,YH5#,6#,71198212-198608

20G,L=41.4,20G

main90937-01140iLH5#,6#,7#,YH5#,6#,71198212-198608

30G,L=62.2,30G

main90937-01147iLH5#,6#,7#,YH5#,6#,7#198212-198807

2G,T=2.0,2G

main90937-01148iLH5#,6#,7#,YH5#,6#,7#198212-198807

4G,T=2.0,4G

main90937-01149iLH5#,6#,7#,YH5#,6#,7#198212-198807

6G,L=12.4,6G

main90937-01150iLH5#,6#,7#,YH5#,6#,7#198212-198807

8G,L=16.6,8G

main90937-01151iLH5#,6#,7#,YH5#,6#,7#198212-198807

12G,L=24.9,12G

main90937-01152iLH5#,6#,7#,YH5#,6#,7#198212-198807

14G,L=29.0,14G

main90937-01153iLH5#,6#,7#,YH5#,6#,71198212-198608

16G,L=33.2,16G

main90937-01154iLH5#,6#,7#,YH5#,6#,71198212-198608

18G,L=37.3,18G

main90937-01155iLH5#,6#,7#,YH5#,6#,71198212-198608

22G,L=45.6,22G

main90937-01156iLH5#,6#,7#,YH5#,6#,71198212-198608

24G,L=49.7,24G

main90937-01157iLH5#,6#,7#,YH5#,6#,71198212-198608

26G,L=53.9,26G

main90937-01158iLH5#,6#,7#,YH5#,6#,71198212-198608

28G,L=58.1,28G

main90937-01184iLH56,66,YH56,66198608-198708

4G,T=1.6,4G,SLEEVE SIDE

main90937-01191iLH56,66,YH56,66198608-198708

8G,T=1.6,8G,SLEEVE SIDE

main90937-01192iLH56,66,YH56,66198608-198708

12G,T=4.5,12G,SLEEVE SIDE

main90937-01193iLH56,66,YH56,66198608-198708

16G,T=4.5,16G,SLEEVE SIDE

main90937-01194iLH56,66,YH56,66198608-198708

20G,T=4.5,20G,SLEEVE SIDE

main90937-01290iLH56,66,YH56,66198608-198708

2G,2G,FR

main90937-01291iLH56,66,YH56,66198608-198708

4G,4G,FR

main90937-01292iLH56,66,YH56,66198608-198708

6G,6G,FR

main90937-01293iLH56,66,YH56,66198608-198708

8G,8G,FR

main90937-01294iLH56,66,YH56,66198608-198708

10G,10G,FR

main90937-01295iLH56,66,YH56,66198608-198708

12G,12G,FR

main90937-01296iLH56,66198608-198612

14G,14G,FR

main90937-01304iLH56,66,YH56,66198608-198708

30G,T=2.0,30G,FR

37110SHAFT ASSY, PROPELLER

main37110-26061iLH61,YH61,63..4HC198401-198708

main37110-26130iLH60,YH6#198212-198308

main37110-26131iLH60,61,YH60,61..MTM198308-198807

main37110-26140iLH70,YH71198212-198308

main37110-26141iLH7#,YH71198308-198708

main37110-26150iLH50,YH50..4HC198212-198308

main37110-26151iLH50,51,YH50,51,53..ATM198308-198807

main37110-26160iLH50,YH5#..MTM198212-198308

main37110-26161iLH50,51,YH50,51..MTM198308-198807

main37110-26190iLH51,YH50,51..MTM..EUR198401-198708

W/VIBRATION DAMPER

main37110-26200iLH51,YH51..4HC..(03S,06S,09S)..N1198401-198708

W/VIBRATION DAMPER

main37110-26210iLH61,YH61..MTM..EUR198401-198708

W/VIBRATION DAMPER

main37110-26220iLH61,YH61..4HC..N1198401-198708

W/VIBRATION DAMPER

main37110-26260iYH53..MTM..ARL198608-198708

main37110-26320iLH56,YH56198608-198708

main37110-26330iLH66,YH66198608-198708

main37110-26340iYH63..MTM198608-198807

main37110-26350iYH73198608-198708

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iLH50,60,70,YH5#,6#,71198304-198308

*8-1.25PX25-12

main90101-08214iLH50,60,70,YH50,6#,71198212-198304

*8-1.25PX25-12

sub90101-08262

main90105-10085iLH5#,6#,71,YH5#,6#,7#198308-198807

*10-1.00PX27-13

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iLH50,60,70,YH5#,6#,71198304-198308

main90179-10059iLH5#,6#,71,YH5#,6#,7#198308-198807

main94110-50800iLH50,60,70,YH50,6#,71198212-198304

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iLH5#,6#,71,YH5#,6#,7#198308-198807

sub90560-10H00

main94512-00800iLH50,60,70,YH5#,6#,71198212-198308

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-26010iLH56,66,YH56,66198608-198708

main37302-35010iYH53,63..ATM198212-198807

main37302-35030iYH53..MTM..ARL198608-198807

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35021iLH50,60,70,YH5#,6#,71198212-198308

main37315-35040iYH53..MTM..ARL198608-198807

main37315-35050iLH50,51,60,61,71,YH50,51,60,61,71198308-198807

37331COVER, SLIDING SHAFT DUST

main37305-35020iLH56,66,YH56,66198608-198708

main37331-30010iLH50,51,60,61,7#,YH50,51,53,60,61,63,7#198212-198807

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26233iYH63..MTM198608-198807

T=1.50,OD=32.4,T=1.475-1.525

main90520-26234iYH53..MTM..ARL198608-198807

T=1.55,T=1.525-1.575,BROWN

main90520-26235iYH63..MTM198608-198807

T=1.60,T=1.575-1.625,BLUE

main90521-29070iLH50,51,60,61,7#,YH50,51,60,61,71198212-198807

T=2.375-2.425,T=2.375-2.425

main90521-29071iYH53..5H198212-198807

T=2.425-2.475,T=2.425-2.475,BROWN

main90521-29072iYH53,63..ATM198212-198807

T=2.475-2.525,T=2.475-2.525,BLUE

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25020iYH53,63..ATM198212-198807

main37402-30010iYH53..MTM..ARL198608-198807

sub37402-30011

sub90520-26044

main37402-30020iLH56,66,YH56,66198608-198807

RED PAINTED

sub37402-30021

sub90520-26044

37434SEAL, UNIVERSAL JOINT SPIDER BEARING

main37434-25010iYH53,63..ATM198212-198807

12 parts on this diagram · 2 diagrams in section
