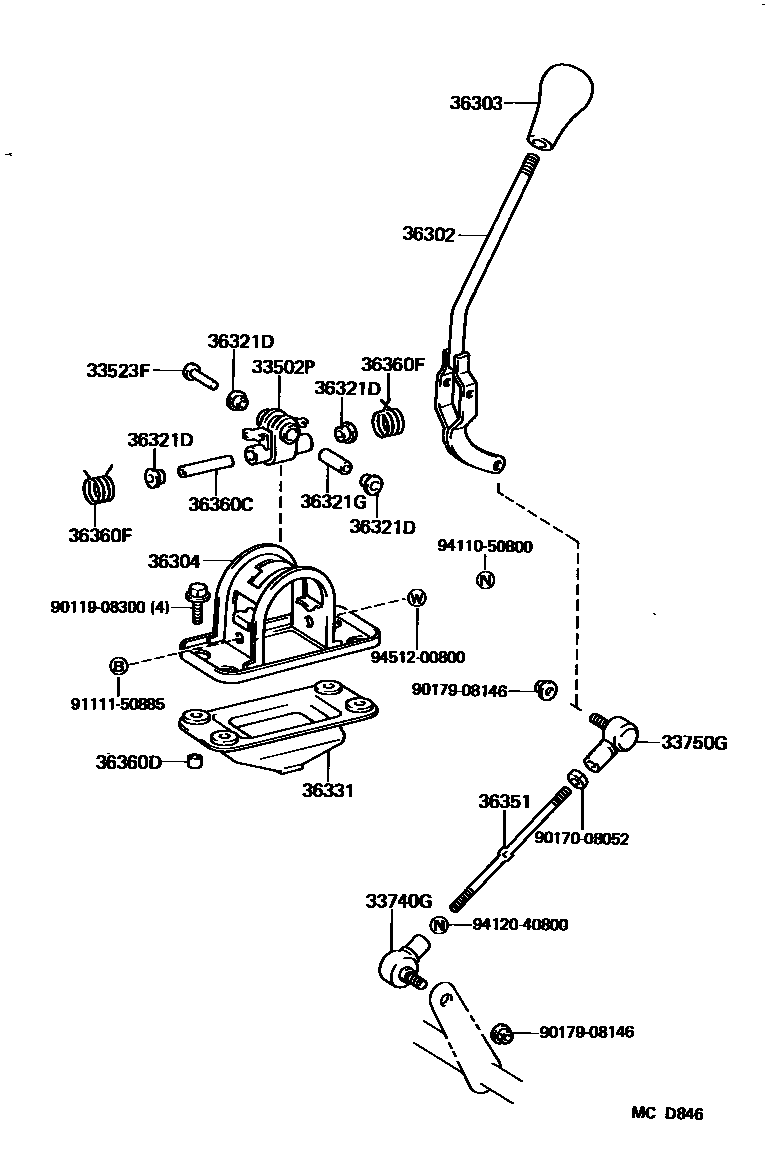

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1

33502PPLATE SUB-ASSY, SHIFT LEVER (FOR TRANSFER)

main33502-26030iLH56,66,YH56,66198608-198708

33523FPIN, SHIFT LEVER (FOR TRANSFER)

main33523-26030iLH56,66,YH56,66198608-198708

33740GEND ASSY, CONNECTING ROD, NO.1(FOR TRANSFER SHIFT ROD)

main33740-26010×2iLH56,66,YH56,66198608-198708

33750GEND ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD)

main33750-26010×2iLH56,66,YH56,66198608-198708

36302LEVER SUB-ASSY, TRANSFER HIGH & LOW SHIFT

main36302-26020iLH56,66,YH56,66198608-198708

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-26020iLH56,66,YH56,66198608-198708

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-26020iLH56,66,YH56,66198608-198708

36321DBUSH (FOR TRANSFER SHIFT LEVER)

main90385-11003×4iLH56,66,YH56,66198608-198708

36321GCOLLER (FOR TRANSFER SHIFT LEVER)

main90387-08080iLH56,66,YH56,66198608-198708

36331BOOT, TRANSFER SHIFT LEVER

main36331-26010iLH56,66,YH56,66198608-198708

36351ROD, HIGH & LOW SHIFT, NO.1

main36351-26010iLH56,66,YH56,66198608-198708

36360CCOLLAR (FOR TRANSFER SHIFT LEVER RETAINER)

main90387-08062iLH56,66,YH56,66198608-198708

36360DCOLLAR (FOR TRANSFER SHIFT LEVER)

main90387-09011×4iLH56,66,YH56,66198608-198708

36360FSPRING, TORSION (FOR TRANSFER SHIFT LEVER RETAINER)

main90508-35019iLH56,66,YH56,66198608-198708

RR

main90508-35028iLH56,66,YH56,66198608-198708

FR

9011908300

main90119-08300

9017008052

main90170-08052

9017908146

main90179-08146

9111150885

main91111-50885

9411050800

main94110-50800

9412040800

main94120-40800

9451200800

main94512-00800

21 parts on this diagram · 3 diagrams in section
