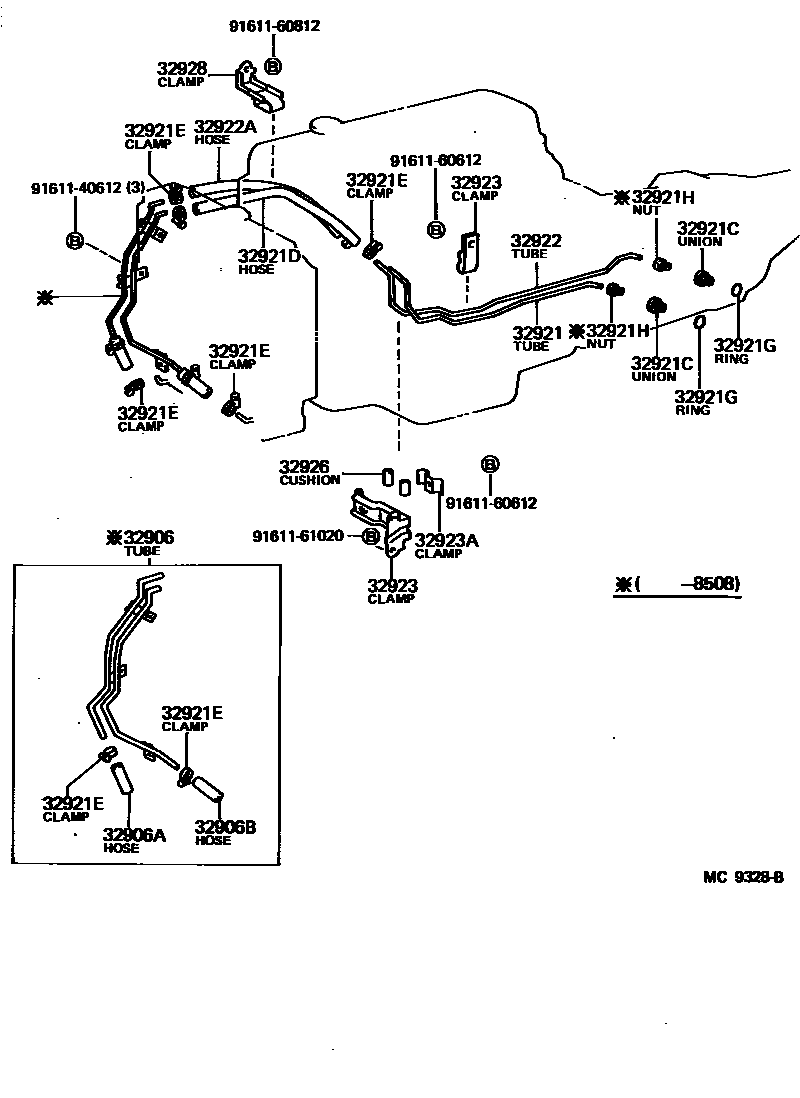

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1

32906TUBE SUB-ASSY, OIL COOLER

main32906-26020iLH5#,61,YH5#,61..4HC198212-198508

main32906-26030iYH51,61..ATM198508-198807

main32906-26050iLH51,61..4HC198508-198608

32906AHOSE, OIL COOLER TUBE(FOR INLET)

main90445-14091iLH5#,61,YH5#,61..4HC198212-198508

sub90445-14092

main90445-16029iLH51,61,YH51,53,61,63..ATM198508-198807

32906BHOSE, OIL COOLER TUBE(FOR OUTLET)

main90445-14091iLH5#,61,YH5#,61..4HC198212-198508

sub90445-14092

main90445-16029iLH51,61,YH51,53,61,63..ATM198508-198807

32921TUBE, OIL COOLER INLET, NO.1

main32921-26020iYH5#,61..4HC198212-198508

main32921-26030iLH5#,61..4HC198212-198508

main32921-26040iYH51,53,61,63..ATM198508-198710

sub32921-26041

main32921-26041iYH53..4HC198710-198807

main32921-26050iLH51,61..4HC198508-198608

main32921-26070iLH51,61..4HC198608-198708

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iLH5#,61,YH5#,61..4HC198212-198508

main90404-16021iLH51,61,YH51,61..ATM198508-198708

main90404-16021iYH51,53,61,63..ATM198608-198807

FR

main90407-16010iYH51,53,61,63..ATM198608-198807

RR

32921DHOSE(FOR OIL COOLER INLET)

main32941-26020iYH5#,61..4HC198212-198508

sub32941-26030

main32941-26030iYH51,53,61,63..ATM198508-198807

main32941-26050iLH51,61..4HC198508-198608

main90445-14092iLH5#,61..4HC198212-198508

main90445-16035iLH51,61..4HC198608-198708

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iLH5#,61,YH5#,61..4HC198212-198508

sub90460-20004

main90460-18002iLH51,61,YH51,53,61,63..ATM198508-198807

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iLH50,51,61,YH50,51,53,61,63..ATM198212-198807

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iLH5#,61,YH5#,61..4HC198212-198508

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-26020iYH5#,61..4HC198212-198508

main32922-26030iLH5#,61..4HC198212-198508

main32922-26040iYH51,53,61,63..ATM198508-198710

sub32922-26041

main32922-26041iYH53..4HC198710-198807

main32922-26050iLH51,61..4HC198508-198608

main32922-26070iLH51,61..4HC198608-198708

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-26020iYH5#,61..4HC198212-198508

sub32941-26030

main32941-26030iYH51,53,61,63..ATM198508-198807

main32941-26050iLH51,61..4HC198508-198608

main90445-14092iLH5#,61..4HC198212-198508

main90445-16035iLH51,61..4HC198608-198708

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-26010iYH5#,61..4HC198212-198508

ENGINE SIDE

main32923-26020iYH51,53,61,63..ATM198508-198807

ENGINE SIDE

main32923-26040iLH51,61..4HC198508-198708

main32923-30090iLH5#,61..4HC198212-198508

main90461-08070iYH5#,61..4HC198212-198508

HOUSING SIDE

main90461-08628iYH51,53,61,63..ATM198508-198807

HOUSING SIDE

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12044iLH51,61,YH51,53,61,63..ATM198508-198807

main90462-12085iLH5#,61,YH5#,61..4HC198212-198508

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iLH5#,61,YH5#,61..4HC198212-198508

L=25,ID=8

main32926-30020iLH51,61,YH51,53,61,63..ATM198508-198807

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-26010iLH51,61..4HC198508-198708

main90462-06012iLH5#,61,YH5#,61..4HC198212-198508

main90949-01215iYH51,53,61,63..ATM198508-198807

9161140612

main91611-40612

9161160612

main91611-60612

9161160812

main91611-60812

9161161020

main91611-61020

19 parts on this diagram · 3 diagrams in section
